SM-RAZOR-T Installation Manual

pg.10

www.snapav.com Support: 866.838.5052

Display Tilt Adjustment

The SM-RAZOR-T mounts offer up to
15° of downward tilt. The mount is flat
(0°) when pushed to the wall. Once
the display is moved out, it tilts to 5°
and then can be adjusted from 5-15°.

To adjust the viewing angle of the
display, carefully push or pull the top
of the display toward or away from the
wall (Figure 13). The mount will snap
into place when pushed flat to the wall.

If the display cannot be adjusted with
ease, loosen the tilt set screws until
the proper feel is achieved using a
Phillips screwdriver (Figure 12).

If the display sags after being set, tighten the tilt set screws until no sagging occurs.
The total adjustment needed should be minimal, no more than ¼ turn tighter or looser
than the default setting.

Warning: Do NOT over-loosen or remove the tilt adjustment friction screws. Doing so may cause
permanent damage to the mount or display.

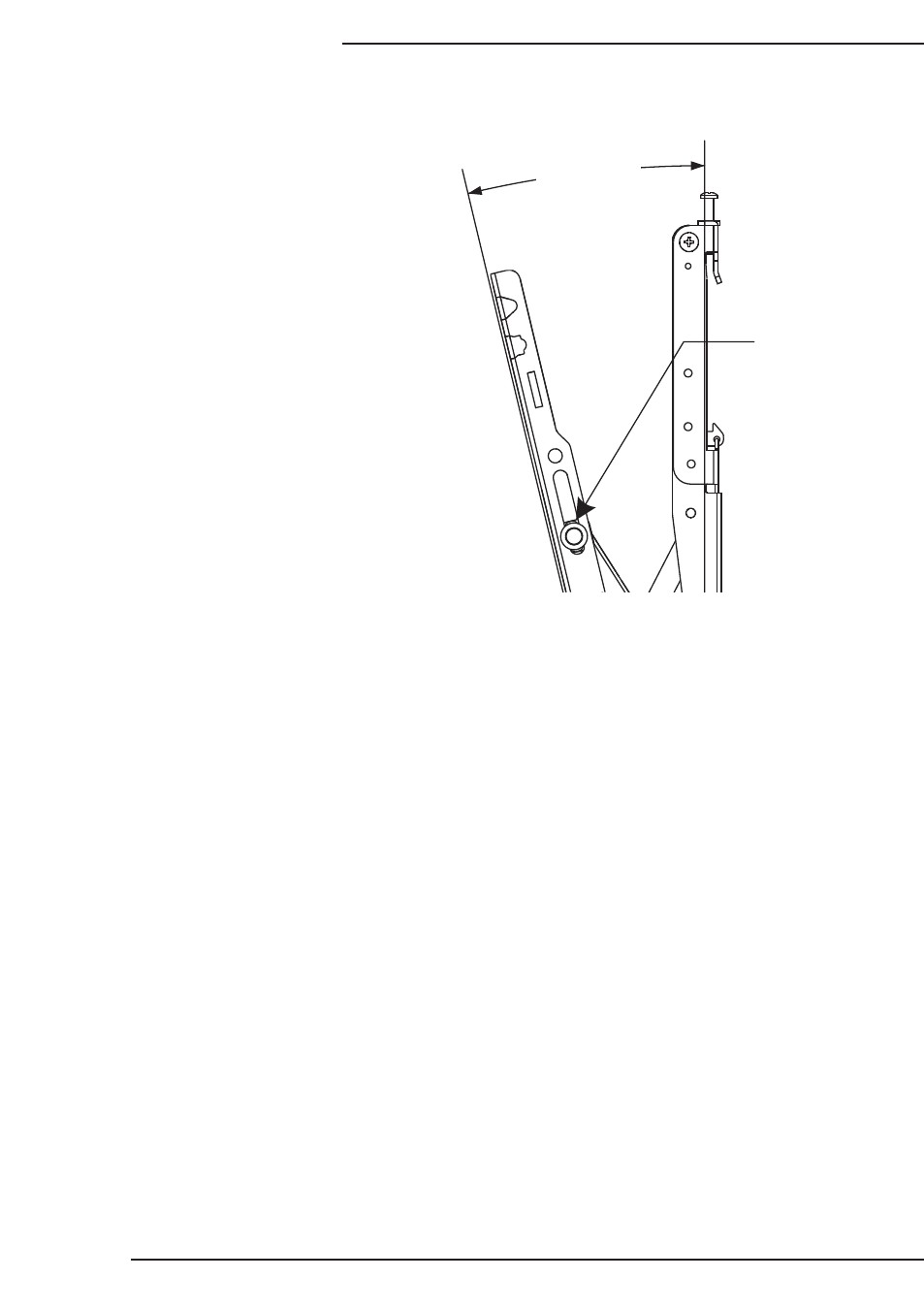

Tilt Set Screw

Max 15°

Figure 12
