Br-ana panel indicators, Output fuse indicators, Output level indicators – Gilderfluke&Co BR-ANA Analog Output Smart/Dumb Brick User Manual

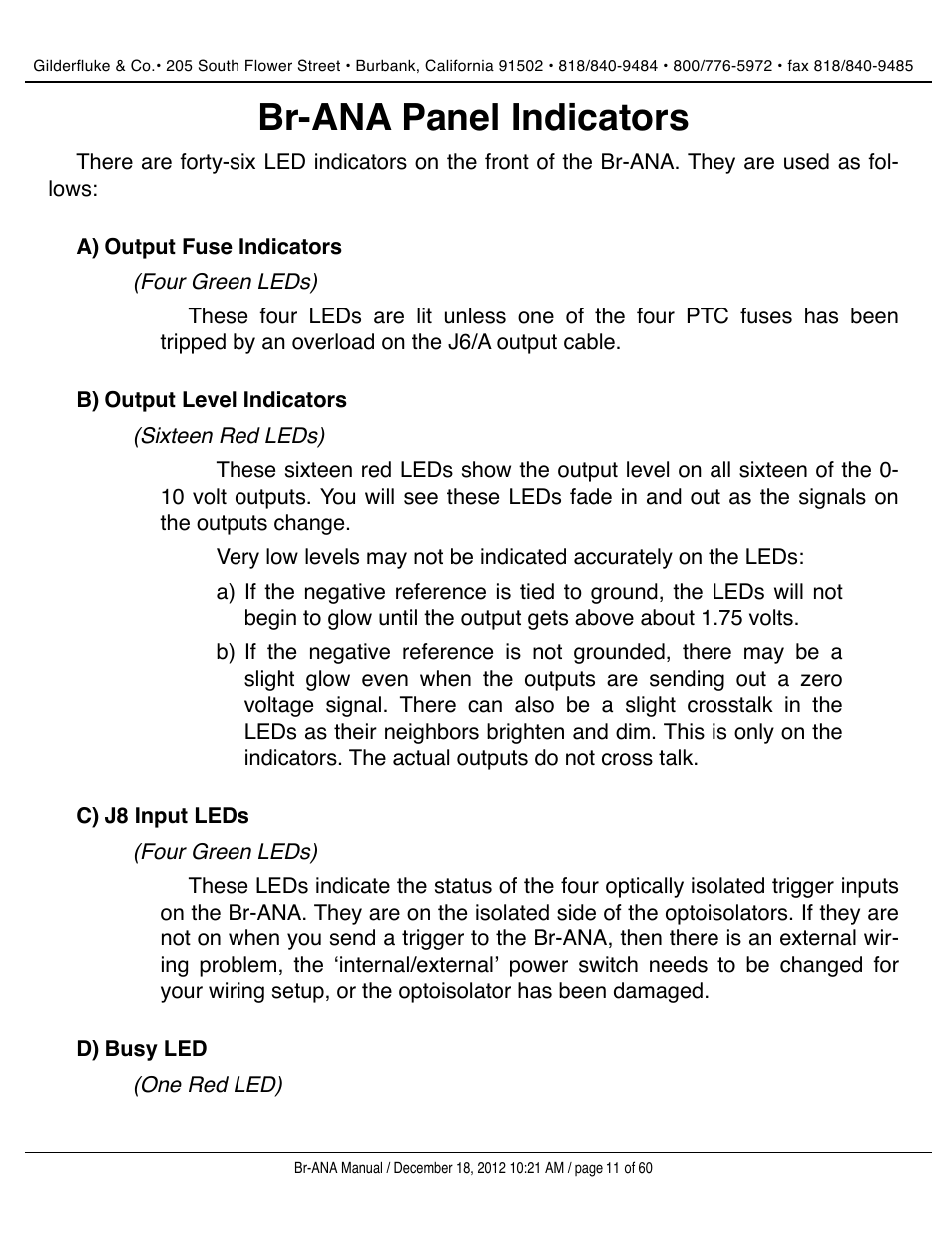

Page 11: J8 input leds, Busy led
