Securitron R100H User Manual

Page 5

Part Number 500-24050, Rev. A

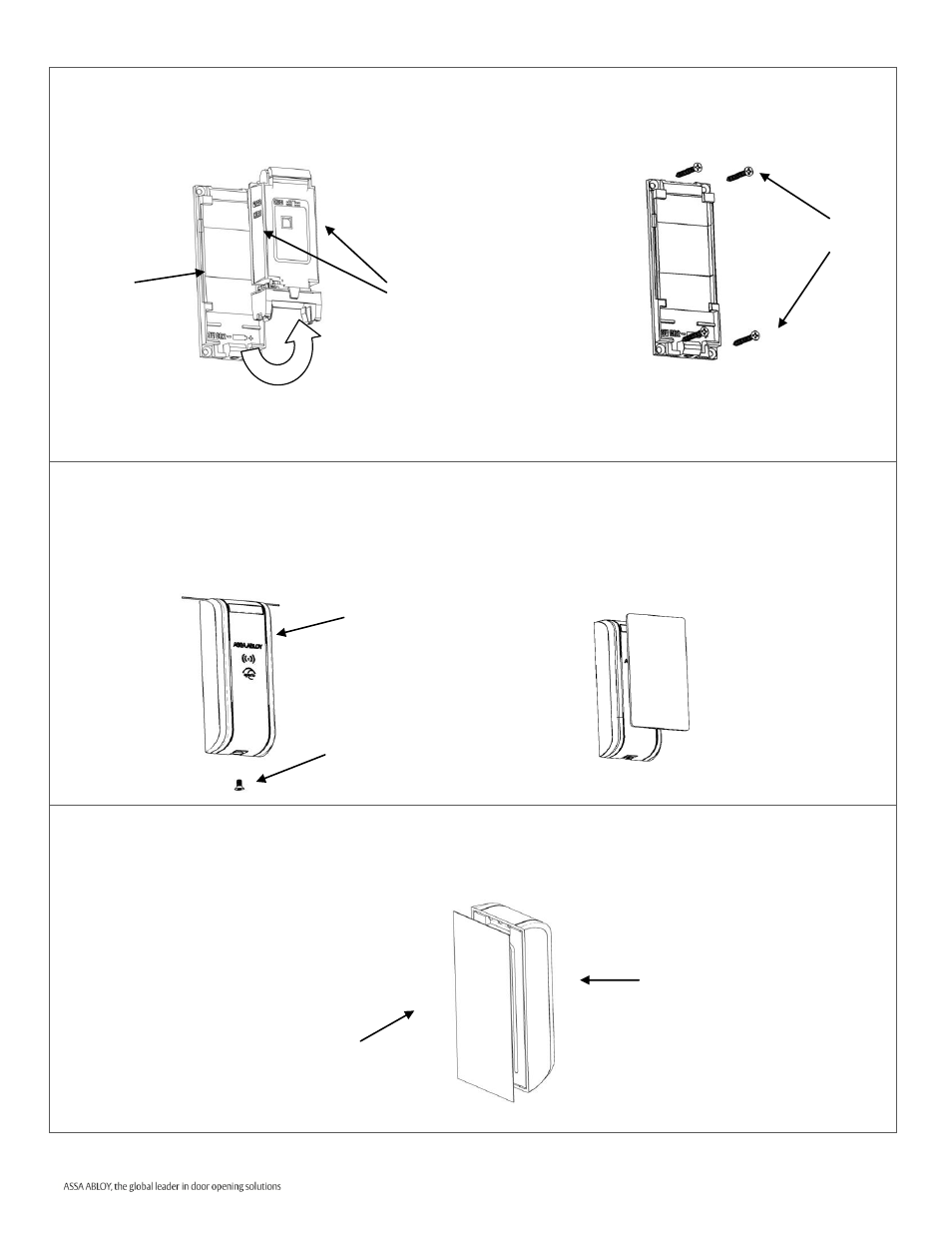

6b. Mounting with wood screws

This is an alternate method for mounting the R100 to your door.
Separate the components by gripping the electronic module at the noted side areas. Rock up, pull
down, and lift out.

Pre-drill through the mounting plate at the four corners and insert wood screws.
Reattach electronic module by sliding the top under the mounting plate’s raised edges and pressing
down firmly until it clicks.

7. Test Reader

Reattach cover and insert screw with the included hex wrench.

Use a credential known to the access control system to confirm it will read as desired. A green LED
indicates access is granted. Refer to the LED reference card for any other codes.

9. Optional: Attach Dress Cover

A separately purchased dress cover (R100-DCA) can be installed on the inside of a glass mounting
surface. Peel the backing from the adhesive on the cover and affix to the window.

Cover

Screw

Dress Cover

R100
(rear view)

Mounting
Plate

Side grip
areas

Wood screws
