4. Preparing the R100

Before starting, we recommend using a level to mark the position. Hold the reader body on the

outside of the window and position it generally where you would like it to mount.

5. Insert Battery

Install the battery, ensure correct orientation. The reader will self test and beep once.

6. Mounting the Unit

The R100 can be mounted using glue or wood screws based on your needs.

6a. Apply Glue

It is recommended that a thin thread of glue is applied to three sides of the back-plate as shown. This
allows oxygen to enter and aid in the curing process. Do not use tissue or a brush to spread the
adhesive.

Quickly affix to the pre-marked area and hold or clamp until the adhesive has bonded (at least five
seconds) The seal becomes functional within a short time and permanent after 24- 72 hours.

Note the rate of cure depends on the ambient relative humidity. The best results are achieved when
the relative humidity in the working environment is 40-60% at 22˚C. Lower humidity leads to a
slower cure. High humidity accelerates it, but may impair the final strength of the bond.

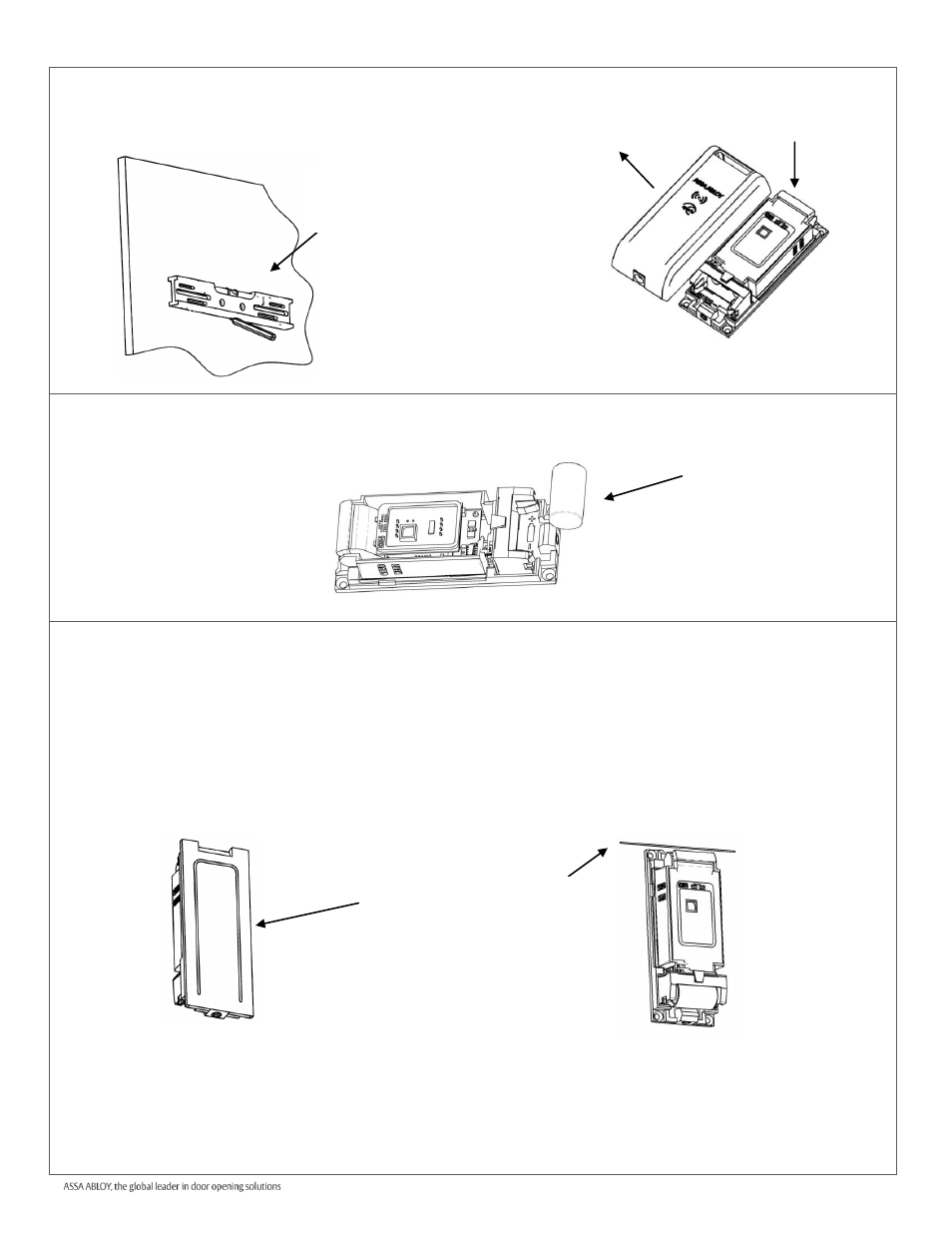

Glue line

Position mark

Battery

Use a pencil to mark this
point on the window

Pull the cover up while pressing on the LED
