R100h reader installation instructions

Part Number 500-24050, Rev. A

R100H Reader

Installation Instructions

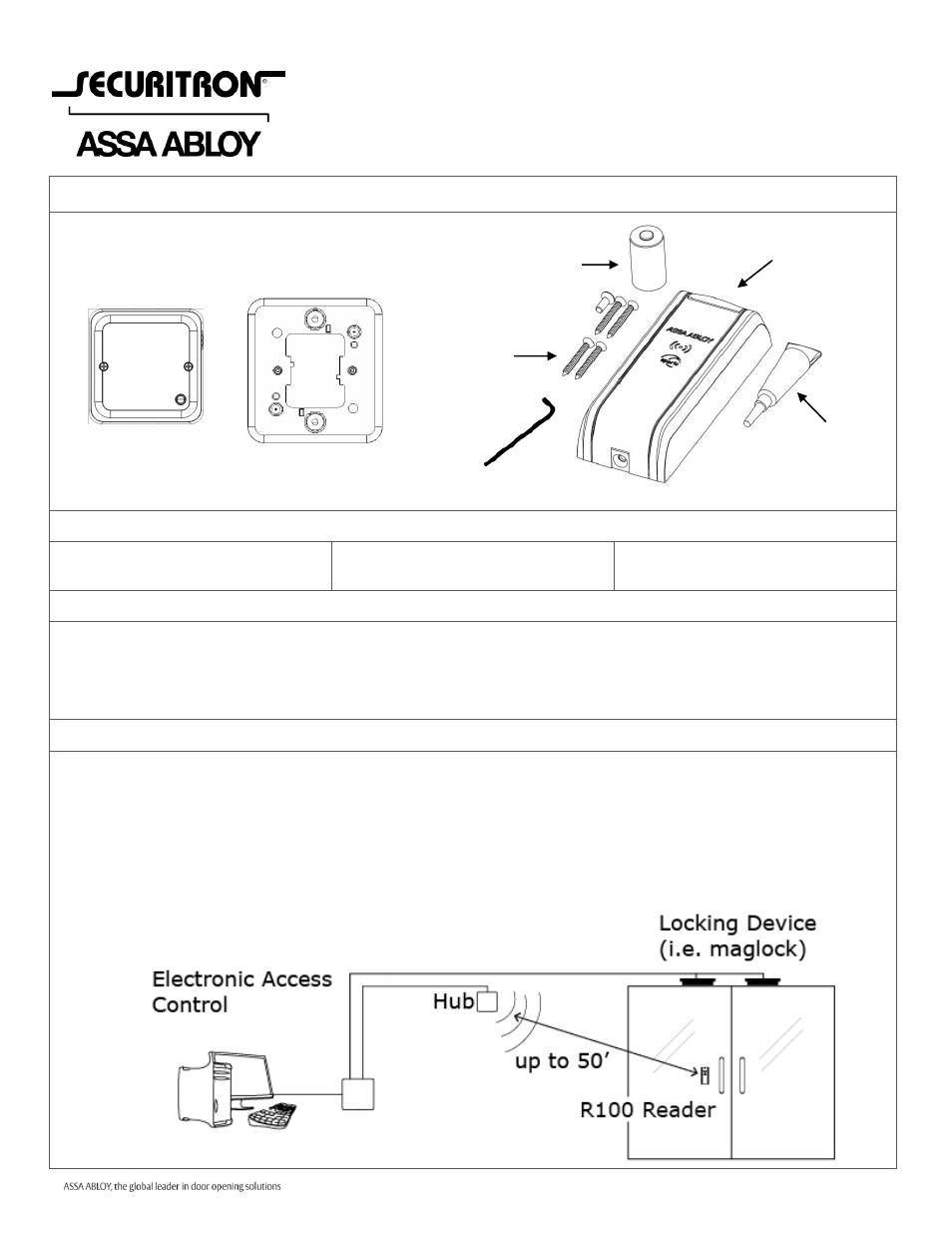

Package Contents

Recommended Tools

Approved Credential:
i.e., iCLASS or Prox ID card

Level
Pencil, wax pencil

Optional Dress Cover: R100-DCA
Optional Clamping device

Product Specifications

Hub Power Requirement: 8-24VDC, 250mA Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128bit encryption
Lock Battery Type: CR2, providing 35,000 Cycles FCC Part 15, Class B Compliant, Industry Canada, CE Compliant
Reader Operating Temperature: -40F (-40C) to 122 F (+50C)

Credentials Supported: 125kHz Proximity or 13.56MHz iCLASS credentials are supported depending on reader model.

For technical support please call 1-800-624-5625

System Overview

The R100 wireless reader installs in locations where wiring may be difficult or undesired for aesthetic reasons. The
R100 wireless reader connects to an access control system through the included communication hub. The
communication hub connects to the access control system with wiegand wiring typical of a wiegand reader.
When a credential card is presented to the reader the request for access is sent wirelessly to the communication
hub. The communication hub then communicates through wiegand wiring to the access control system where the
decision is made to grant or deny access.
When access is granted the access control system unlocks the locking device seperately.

Aperio Hub

Hub Mounting

Bracket

Glue

Reader

Screws

CR2 Battery

Hex
Wrench

Securitron Magnalock Corp.
Phoenix, AZ
800.624.5625
