Securitron R100H User Manual
Page 3
Part Number 500-24050, Rev. A
©2013, Securitron, Inc.
3

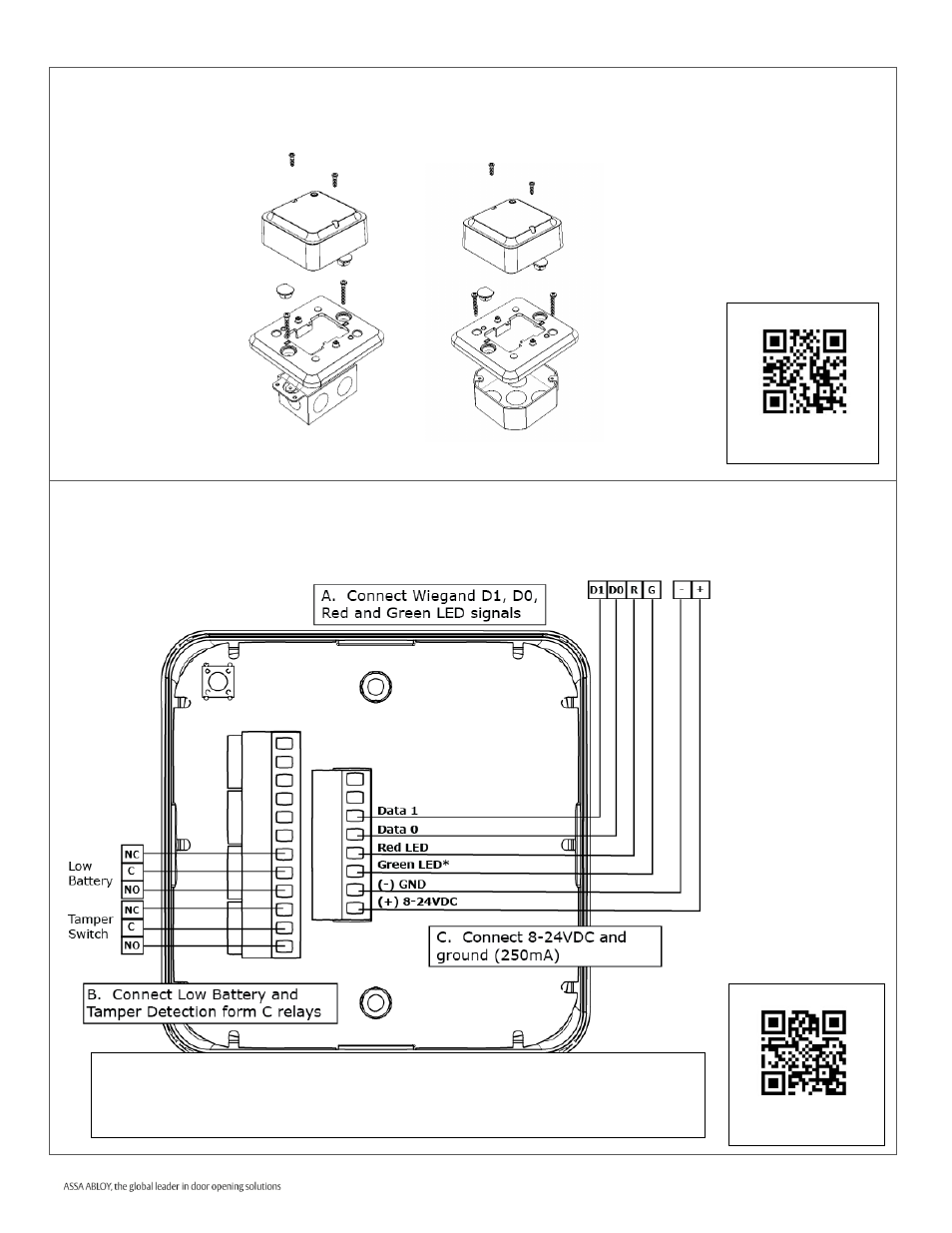

2. Mounting the Hub.
The included adapter plate can be used to mount the hub on a single or double gang box.
3. Wiring the Hub.
The Aperio Hub connects to the Access Control system via Wiegand wiring. The hub
requires 8-24VDC power (250mA). The hub includes two form C relays that can be used to
transmit low battery signal and a tamper signal.
*Note: the Green LED and Red LED inputs control feedback that
will be displayed at the reader for approved access (Green) or
denied access (Red).
Mounting the Hub
Wiring the hub
