Securitron R100H User Manual
Page 2
Part Number 500-24050, Rev. A
©2013, Securitron, Inc.
2

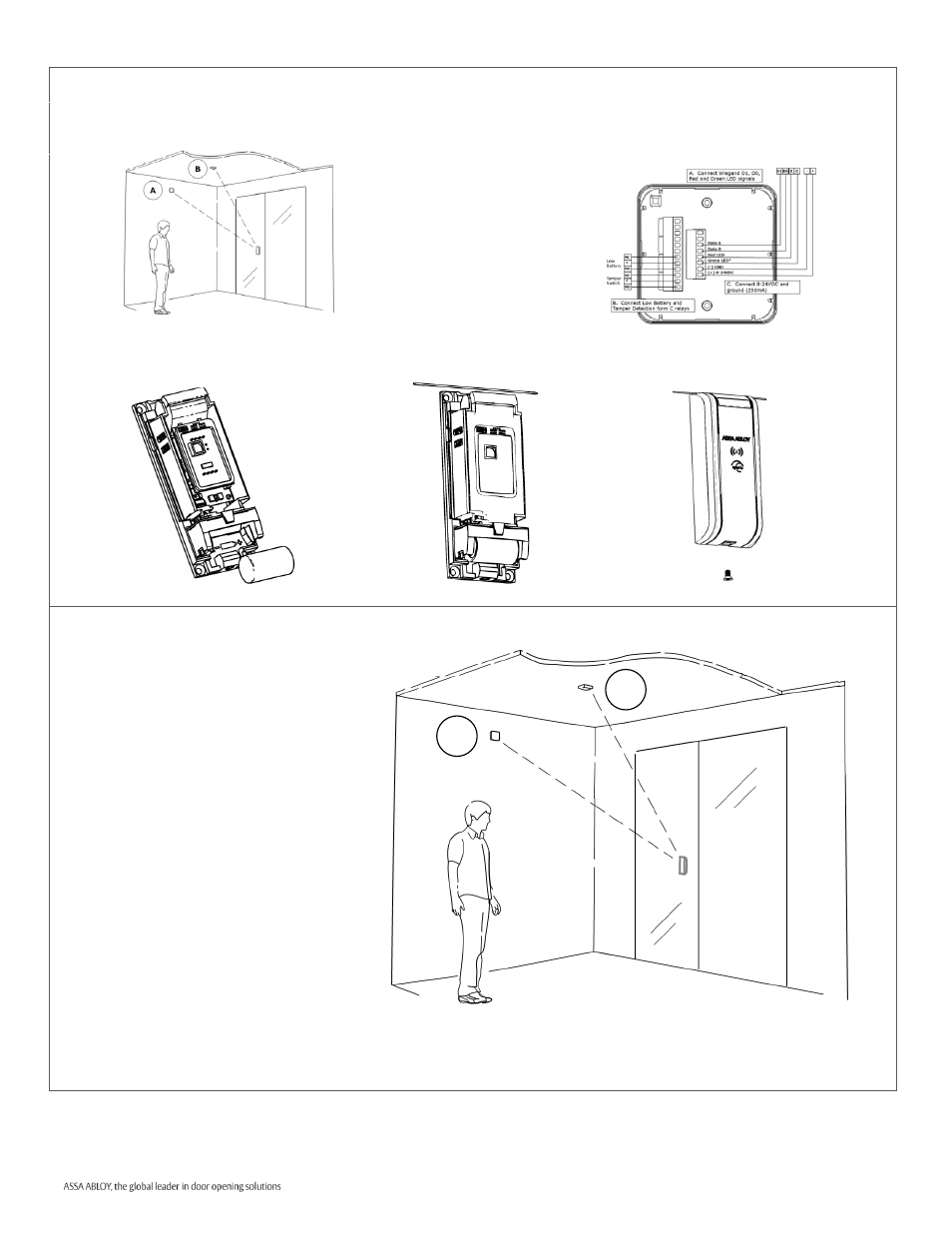

Installation Steps
1. Choose the hub location
It is recommended that the hub be
mounted near the top of a wall or on
the ceiling to reduce potential for
interference.
For a stable and reliable radio link,
it is recommended that the hub is
located within fifty (50) feet of the
lock. A maximum of two interior
walls between the hub and lock is
recommended.
Recommended locations:
A: Wall Mount
B: Ceiling Mount
For a glass entryway the hub
should be located in the interior
lobby.
*Note the hub is not rated for use in plenum air spaces.
1. Locate and Mount the Hub
2. Connect the Hub
3. Insert Battery
A
B
4. Mount Unit
5. Reattach Cover
