Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

6

Operator's Manual

Rivers Edge® One-Man Ladder Stands

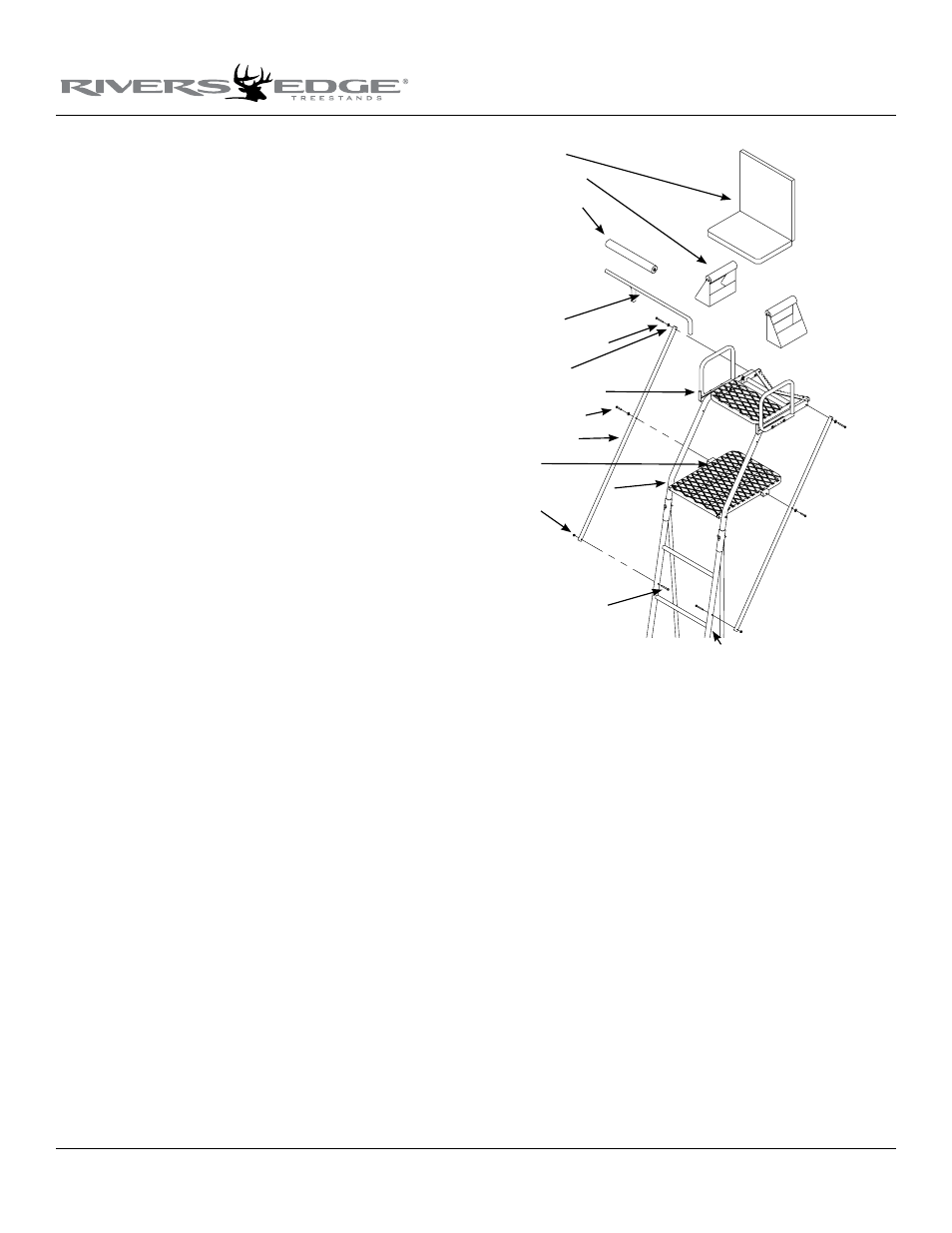

Figure 3

seat cushion
9" camo shelves
18" camo sleeve

shooting rail
1/4-20 x 3-1/4" bolts
steel washers
shooting rail mounts
1/4-20 x 3" bolts
support braces
locknuts
top platform section
locknuts

1/4-20 x 2-1/4" bolts

4-step ladder section

w/ mounting holes

4. Insert the assembled top platform section into the top ladder section

with mounting holes (SL54). Attach the (2) support braces (48064) to

the outside of side rails, foot platform and 4-step ladder section with

mounting holes using (2) provided 1/4-20 x 3-1/4" bolts, (2) 1/4-20 x 3"

bolts, (2) 1/4-20 x 2-1/4" bolts, (4) steel washers and (6) locknuts. sEE

fIGuRE 3. You must now tighten all nut & bolt assemblies. Be sure

not to over tighten or crush tubing when tightening!

5. Attach the removable seat cushion (48819) to the top of seat frame.

Wrap the Velcro seat straps or buckle straps around seat frame and

secure together. Snap the side release buckles together for buckle

style seats. Pull straps tight so seat is not loose.

6. a. Attach the shooting rail (SR10) by setting rail down over studs on

shooting rail mounts. sEE fIGuRE 3. lubrication is recommended

to prevent binding and noise.

b. Attach the (2) provided 9" camo arm pad/shelves to the armrests

and (1) 18" camo foam pad to the shooting rail by wrapping around

metal tubing and attaching Velcro together. Shelves should lay out

flat to the outside of armrests. Use these shelves for holding various

hunting gear items so they are readily available to you during your

hunt.

7. The remaining (3) ladder sections are assembled to the top ladder

assembly on the ground in the following order: bottom section (SL51

ladder); second section (SL52 ladder); third section (SL51 ladder);

fourth section (SL54 ladder); top section (assembled top platform

section). sEE fINIshED 22' TIMBERshOT EXTREME lADDER.
