Operator's Manual
Rivers Edge® One-Man Ladder Stands
10. Remove the locknuts from the (2) 1/4-20 x 2-1/4” bolts that were
previously attached to the rear of the seat assembly. Continue by
attaching the seat assembly to the ladder side rails using (2) provided
1/4-20 x 2-1/4” bolts, locknuts and nylon washers. sEE fIGuRE 7. Make
sure all (4) angle brackets are fully cradling fabric rails.
notE: Mesh seat is not depicted in drawing so hardware can be
visible.
11. Insert the shooting rail J-pipes (410113) into the shooting rail front
(410065) and secure together using (2) provided 1/4-20 x 1-1/4” bolts
and locknuts. sEE fIGuRE 8.
12. Insert the two side rails into the flared rails (410054). Secure using
(2) provided 1/4-20 x 1-1/2” bolts, locknuts and steel washers. sEE
fIGuRE 9.
13. Attach the bolt-on ladder step (410034) to the front side of flared rails
using (2) provided 1/4-20 x 2-1/4” bolts, locknuts and steel washers.
sEE fIGuRE 9.
14. Attach the mesh backrest (360021) and the (2) retaining bars
(410081) to the backrest mounts using (6) provided 1/4-20 x 1-1/2”
bolts and locknuts. sEE fIGuRE 10. The mesh backrest must wrap
around the front side of backrest mounts and the plastic stiffening
rod located in the sewn sleeve on each side of the backrest MUST
be positioned behind the backrest retainer bars to act as a stop and
prevent the backrest from pulling out during use. All bolts MUST go
through the backrest retainer bars, the holes provided in the backrest
and the backrest mounts. sEE fIGuRE 10. Temporary removal of the
backrest mount tube from the rest of the assembled ladder top may
be necessary to attach the mesh backrest. If this is needed, re-attach
backrest mount tubes with mesh backrest to the ladder top assembly.
15. Thread the non-locking 3/8-16 nut onto the threaded end of spacer
rod all the way to the bottom of threads and slide 3/8” lock washer
on. Insert the threaded end of spacer rod through either backrest
mount tube far enough to be able to insert the opposite end of
spacer rod (end with welded-on washer) into opposite backrest
mount tube. Thread 3/8-16 nut back against mount tube. Using a
9/16” wrench, tighten nut until mesh backrest becomes taut. sEE
fIGuRE 10. You must now tighten all nut and bolt assemblies.
Be sure not to over tighten or crush tubing when tightening!

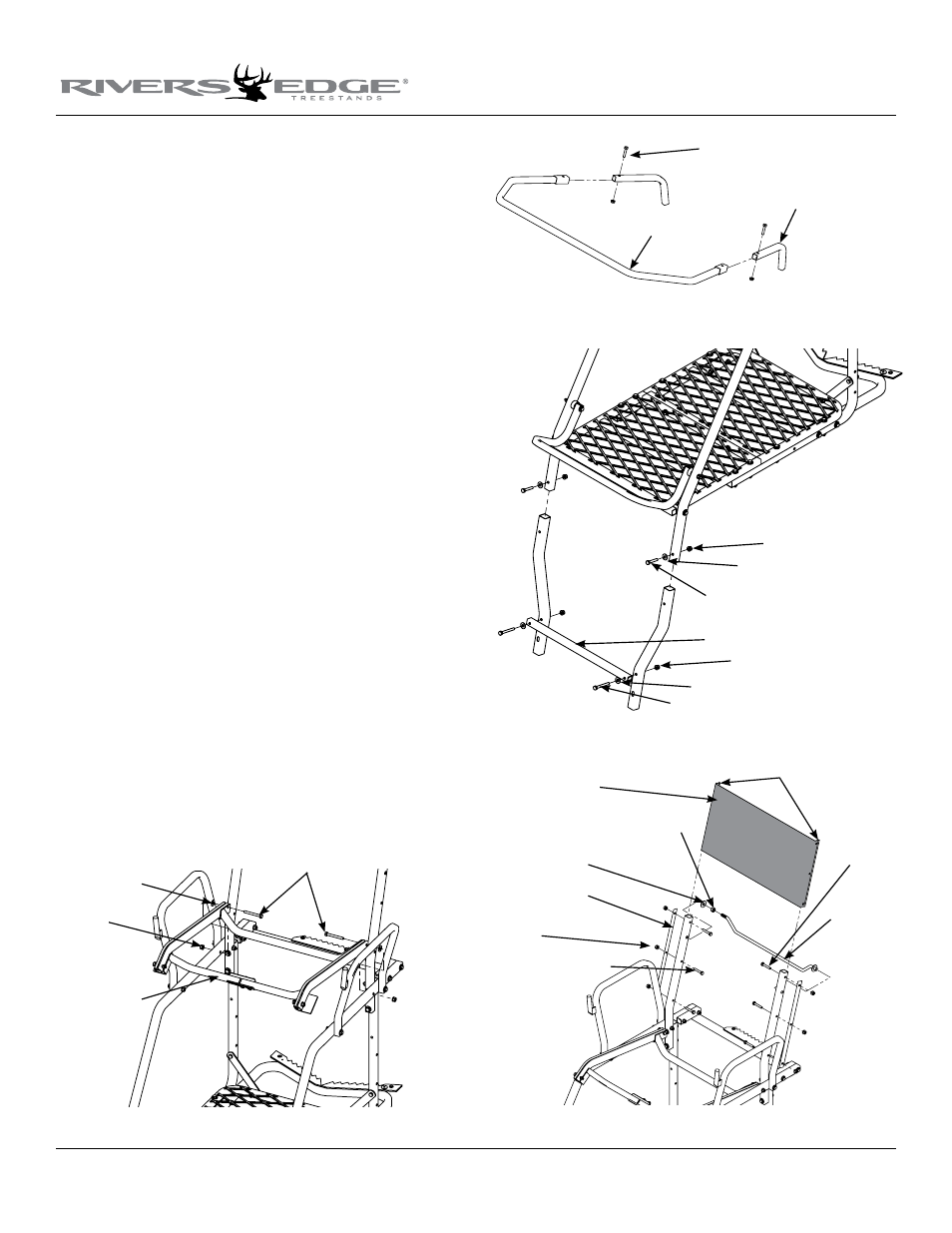

Figure 8
shooting
rail J-pipes
shooting rail
1/4-20 x 1-1/4" bolt
Figure 9
1/4-20 x 1-1/2" bolt
steel washers
locknuts
1/4-20 x 2-1/4" bolt
steel washers
locknuts
bolt-on step
Figure 7 Figure 10
1/4-20 x 2-1/4" bolts
nylon washers
completed
seat assembly
mesh backrest
retainer bars
locknuts
1/4-20 x 1-1/2" bolts
1/4-20 x
1-1/2" bolts
3/8 nut
3/8 lock washer
spacer rod
locknuts
plastic stiffening rods
