Operator's Manual

Rivers Edge® One-Man Ladder Stands

16. The remaining (2) ladder sections are assembled to the top ladder

assembly on the ground in the following order: bottom section (SL51

ladder); second section (SL52 ladder); third section (SL78 ladder); top

section (assembled top, platform section). sEE fINIshED 17’ sPIN

shOT lADDER.

17. With all sections assembled together on ground, secure all sections

together using (4) provided spring lock pins. Handle of spring lock

pin must be put to the outside of ladder side rails. sEE fIGuRE 7.

18. a. Attach the stabilizer bar extension tube (48053) to the second

ladder section mounting bracket using (1) provided spring lock pin.

sEE fIGuRE 7.

b. Slide the stabilizer bar (48052) into the extension tube and attach

the two pieces together using (1) provided spring lock pin. Spring

lock pin must go through both the extension tube and stabilizer

bar at appropriate hole to achieve desired distance from tree.

Adjustment in length may be needed when ladder is uprighted later

in instructions. sEE fIGuRE 7.

19. Tie one end of each of the provided 15’ ropes to the square tube

platform rim, next to the bolted on tree blade support braces. Be

sure your double knots are secure. sEE fIGuRE 8.

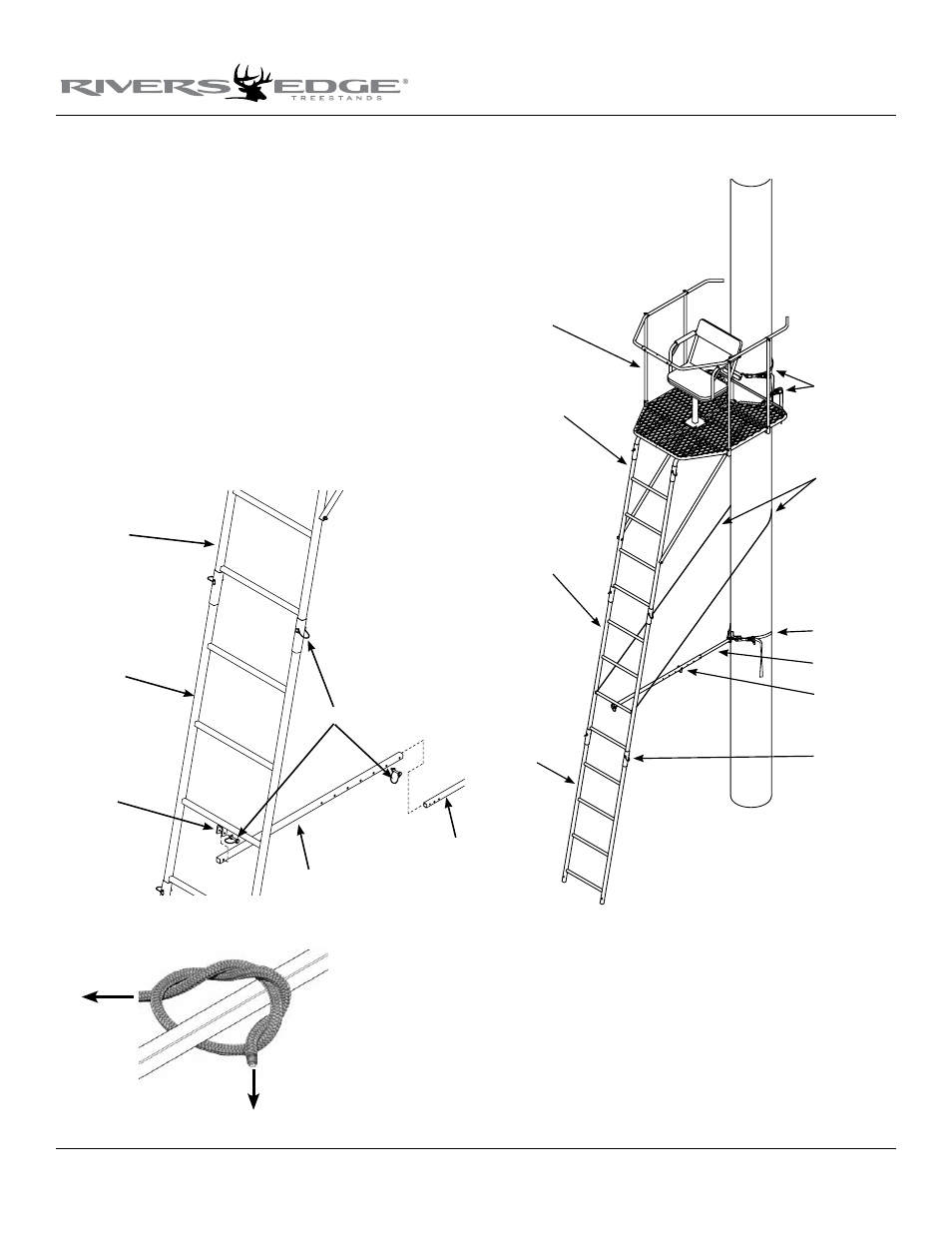

Figure 7

Figure 8

third ladder

section

second ladder

section

mounting

bracket

extension tube

spring lock pins

stabilizer bar

fINIshED sPIN shOT™ lADDER

top section

third section

second section

bottom section

ratchet straps

15' tie-off

ropes

ratchet strap

stabilizer bar

extension tube

spring lock

pins
