Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

27

Operator's Manual

Rivers Edge® One-Man Ladder Stands

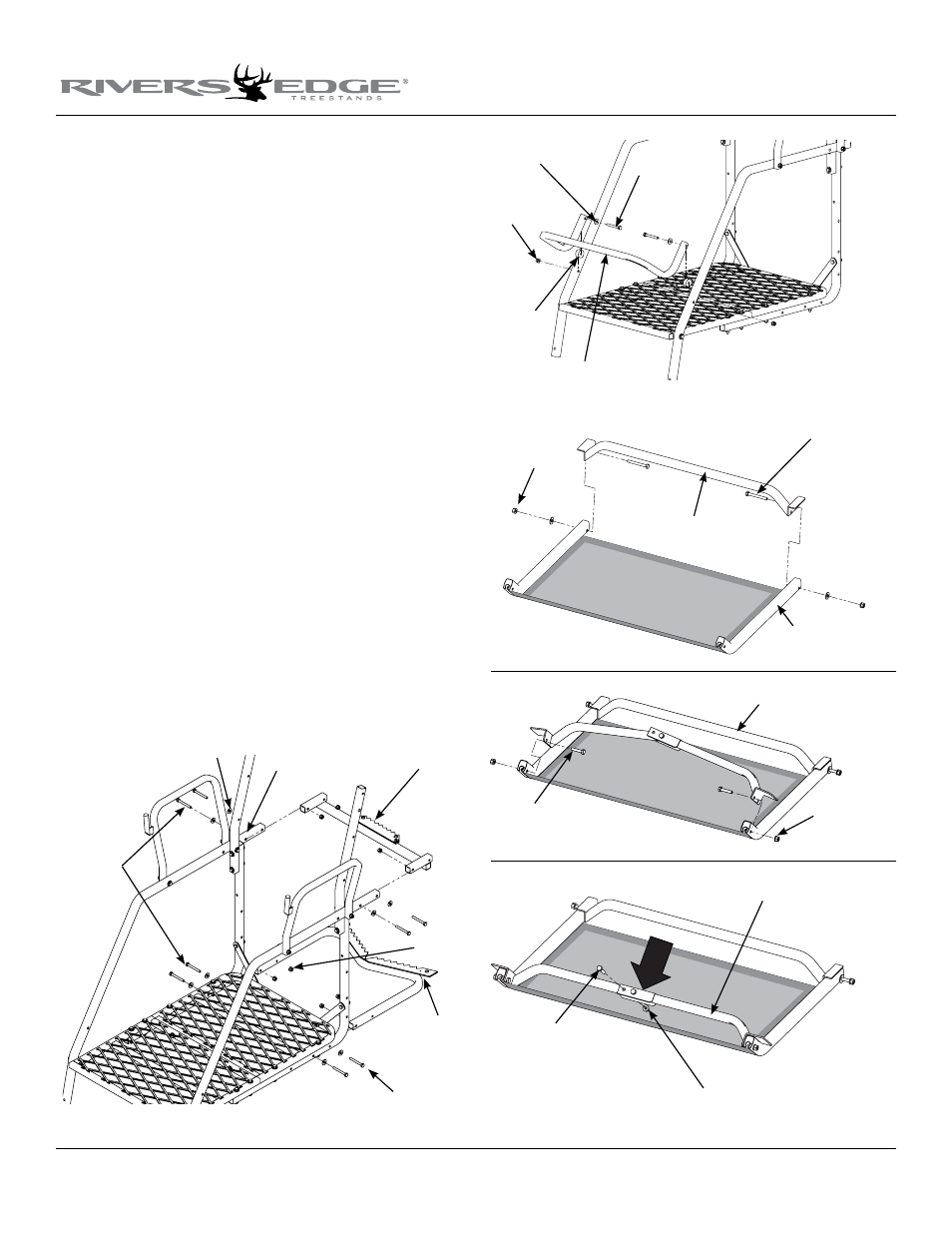

6. Attach the upper tree blade (10162) to the ladder side rails using

(4) provided 1/4-20 x 2-1/4” bolts, locknuts and steel washers. sEE

fIGuRE 4.

7. Attach the lower tree blade (10164) to the inside of the platform

support rails using (4) provided 1/4-20 x 2-1/4” bolts, locknuts and

steel washers. sEE fIGuRE 4.

8. Attach footrest (410061) to ladder side rails using (2) provided 1/4-20 x

2-3/4” bolts, locknuts, steel washers and nylon spacers. sEE fIGuRE 5.

9 a. Position the pre-assembled mesh seat/fabric rail mounts (360018)

upside down on a sturdy, hard surface. Spread the rear of fabric rail

mounts apart and insert the rear seat spacer weldment (410122).

Temporarily insert (2) 1/4-20 x 2-1/4” bolts and locknuts. sEE fIGuRE 6a.

notE: locknuts will need to be removed in order to attach finished

seat to treestand later in assembly instructions.

b. Remove the loose 1/4-20 x 1-1/4” bolt and nut from the locking

hole of factory assembled front seat spacer assembly (410112). DO

NOT remove the factory tightened pivot bolt. Set bolt and nut

off to the side for use in step 8c.

c. Spread the front (bent end) of fabric rail mounts apart. Take the

front seat spacer assembly (410112) and position angle brackets

near holes in fabric rail mounts. sEE fIGuRE 6b. Push the front

seat spacer assembly downward into its widest position to spread

seat apart and hold in place. Insert (2) provided 1/4-20 x 1-1/4”

bolts through the fabric rail mounts and the angle brackets of front

seat spacer assembly; secure with locknuts. While continuing to

hold seat spacer in place, re-insert (1) provided 1/4-20 x 1-1/4” bolt

through the locking hole of front seat spacer assembly and secure

with locknut. sEE fIGuRE 6c. Be sure that all four angle brackets

(two on rear seat spacer and two on front seat spacer) are fully cra-

dling the fabric rail mounts. This locking action is a tight fit by de-

sign in order to apply the correct amount of tension on the mesh

seat. You must now securely tighten the (3) 1/4-20 x 1-1/4” bolts

and locknuts on the front seat spacer assembly.

Figure 5

Figure 6a

Figure 6b

Figure 6c

locknuts

1/4-20 x 1-1/4" bolts

rear seat spacer

fabric rail mounts

1/4-20 x 2-1/4" bolts

locknuts

rear seat spacer assembly

front seat spacer assembly

1/4-20 x 1-1/4" bolts

locknut

Figure 4

upper tree blade

ladder

side rails

1/4-20 x

2-1/4" bolts

lower tree

blade

1/4-20 x 2-1/4" bolts

locknuts

steel washers

Push

DOWN

1/4-20 x

2-3/4" bolts

footrest

steel

washers

locknuts

nylon

spacers
