Operator's Manual
Rivers Edge® One-Man Ladder Stands
b. With the seat pivoted up in the flip-up position (to allow for slack), at-
tach the top of mesh backrest and the backrest retainer bar (410079) to
the seat upright loop using (3) provided 1/4-20 x 1-1/2” bolts and lock-
nuts. sEE fIGuRE 9a and 9b. The mesh backrest must wrap around the
top side of the seat upright loop and the plastic stiffening rod located
in the sewn sleeve of mesh backrest MUST be positioned behind the
backrest retainer bar to act as a stop and prevent the backrest from pull-
ing out during use. All bolts MUST go through the backrest retainer bar,
holes provided in the mesh backrest and the seat upright loop. Tighten
these three bolts securely at this time. Do not crush tubing when tight-
ening!
13. Attach the (2) curtain rail J-pipes (410020) to the backrest retainer bar
using (2) provided 1/4-20 x 1-1/2” bolts and locknuts. sEE fIGuRE 9a.
14. Attach the (2) curtain rail side tubes (410018) to the curtain rail up-
rights using (4) provided 1/4-20 x 2” bolts, locknuts and steel wash-
ers. sEE fIGuRE 10.
15. a. Insert each curtain rail side tube into the door mount weldment
(410011) and secure together using (2) provided 1/4-20 x 1-1/4”
bolts, locknuts and steel washers. sEE fIGuRE 10.
b. Attach the bottoms of each door mount weldment to the front
platform using (4) provided 1/4-20 x 2” bolts, locknuts and steel
washers sEE fIGuRE 10.
16. Attach (2) flat bars (1ML40) to the front platform and door mount
weldments using (2) provided 1/4-20 x 1-1/4” bolts, (2) 1/4-20 x
1-1/2” bolts and (4) locknuts. sEE fIGuRE 10.

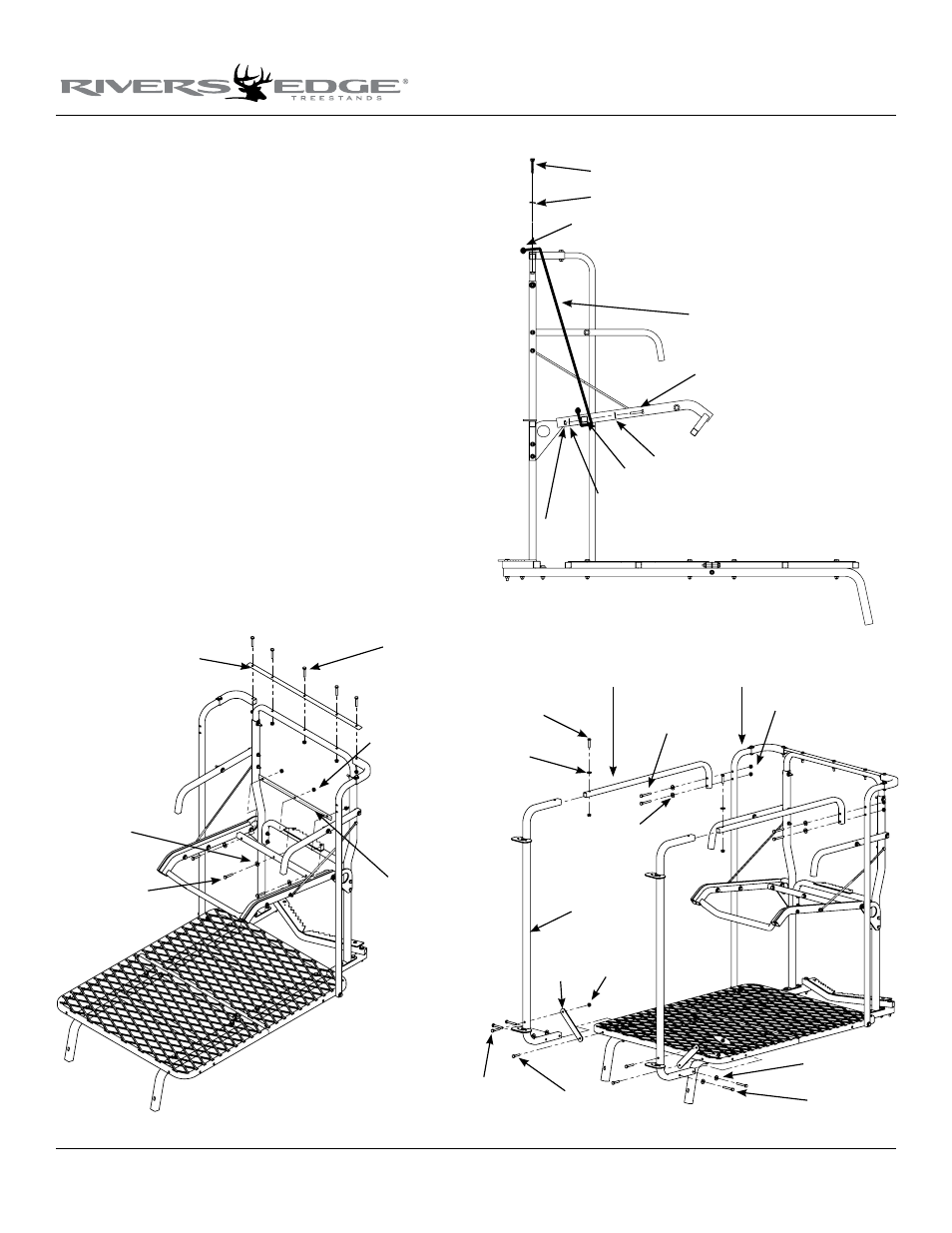

Figure 10
Figure 9a
Figure 9b
1/4-20 x
1-1/2" bolts backrest retainer bar
1/4-20 x
1-1/2" bolts
steel washers
locknuts
curtain rail
side tubes
curtain rail
uprights
door mount
weldments
backrest retainer bar
mesh backrest
plastic stiffening rod
1/4-20 x 1-1/2" bolts
rear cross bar of seat frame
steel washer
seat retainer bar
1/4-20 x 1-1/2" bolts
seat retainer
bar
locknuts
1/4-20 x 2"
bolts
locknuts
steel washers
1/4-20 x
2" bolts
1/4-20 x
1-1/4" bolts
locknuts flat bars
steel washers
side Profile view
steel washers
1/4-20 x
1-1/4" bolts
1/4-20 x
1-1/2" bolts
