Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

13

Operator's Manual

Rivers Edge® One-Man Ladder Stands

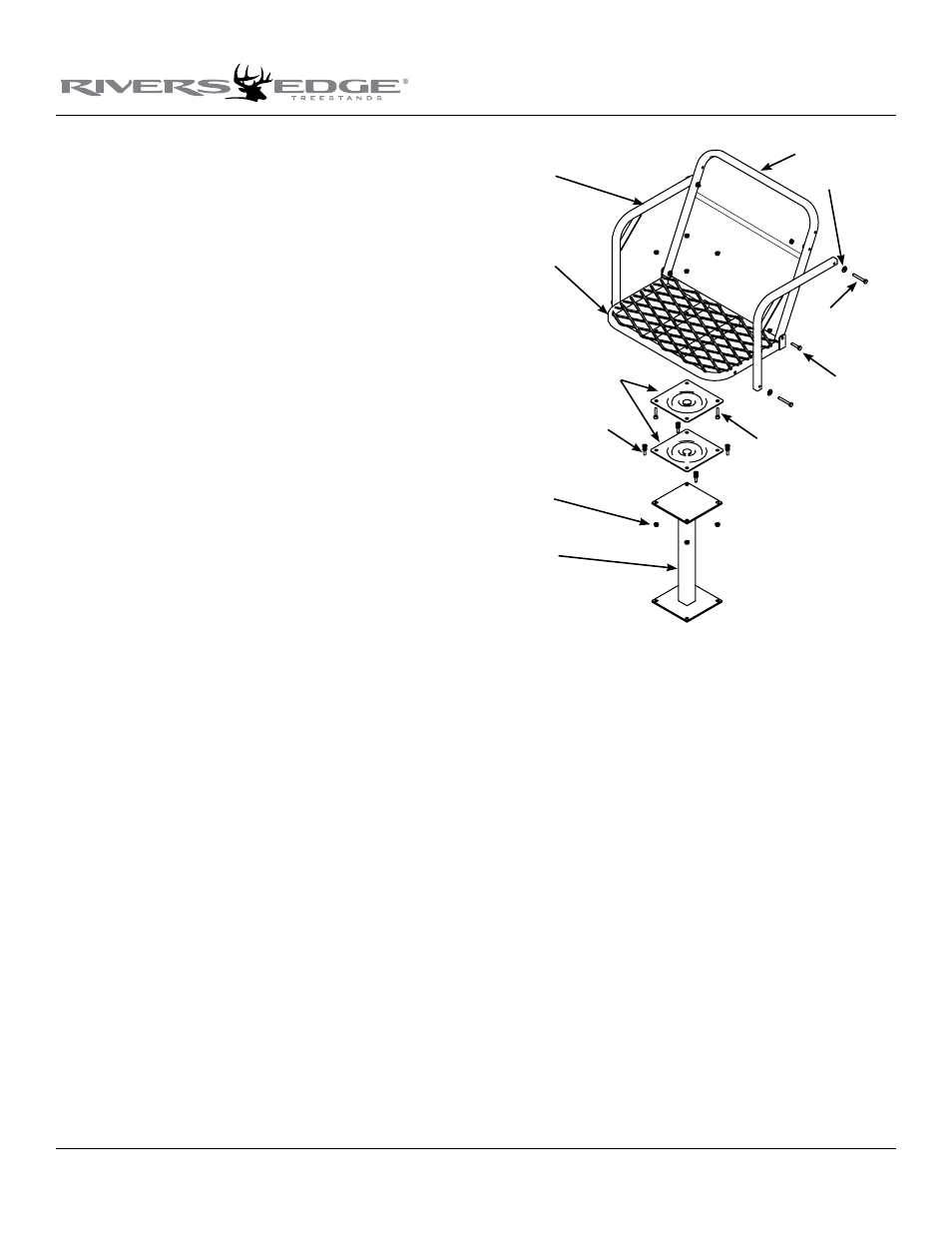

Figure 6

sWIvEl sEAT AssEMBlY INsTRuCTIONs

notE: Swivel seat assembly must be assembled on the ground. do

not attach to platform until ladder is uprighted, attached to the

tree per Set-up and use instructions, and you are attached to the

tree with the provided Full Body harness.

11. Attach swivel (48662) to either end of seat post (TP11) using (4)

provided 1/4-20 x 3/4” bolts and locknuts. sEE fIGuRE 6.

notE: Make sure head of bolts are on swivel side and nut on bottom

of seat post plate to prevent any obstruction when swivel is pivoted

during use.

12. Attach seat frame (TP154) to swivel using (4) provided 1/4-20 x 1-1/4”

bolts and locknuts. sEE fIGuRE 6.

notE: Make sure head of bolts are on swivel side and nut on top

of seat frame to prevent any obstruction when swivel is pivoted

during use. Mesh surface should be on top.

13. Attach backrest rim (TP165) to tabs of seat frame using (2) provided

1/4-20 x 1-1/4” bolts and locknuts. sEE fIGuRE 6.

14. Attach the (2) armrests (TP164) to the seat frame and backrest rim

using (4) provided 1/4-20 x 2” bolts, locknuts and steel washers. sEE

fIGuRE 6. You must now tighten all nut & bolt assemblies. Be

sure not to over tighten or crush tubing when tightening!

notE: the armrests are approximately 1” longer on one side. Bolt

the longer side to the backrest rim and the shorter side to the seat

frame.

15. a. Attach the removable seat cushion (48127) to the top of seat

frame. Wrap the Velcro straps or buckle straps around seat frame and

secure together. Snap the side release buckles together for buckle

style seats. Pull straps tight so seat is not loose.

b. Attach the removable backrest cushion (48128) by sliding pocket

portion over the metal backrest frame. Wrap the Velcro straps around

backrest crossbar and secure together. Pull tight so backrest is not

loose.

c. Using a rubber mallet, tap in (2) plastic pipe plugs (48869) into

each end of the shooting rail.

d. Attach the (2) provided 9” camo sleeves (48736) to the armrests

and the (1) 128” camo sleeve (48129) to the shooting rail by wrapping

around metal tubing and attaching Velcro together.

e. Attach the camo curtain (48086) to the shooting rail/platform

by wrapping top edge around padded shooting rail and attaching

Velcro together. Zippered door should be aligned with the ladder.

Pull the bottom edge with elastic down and secure Velcro straps

around platform frame.

1/4-20 x 2"

bolts

steel washers

armrests

backrest rim

seat frame

1/4-20 x 1-1/4" bolts

swivel (shown apart)

1/4-20 x 1-1/4"

bolts

1/4-20- x 3/4" bolts

locknuts

seat post
