fOR RE623 ONlY: hOIsTING YOuR sWIvEl sEAT
9. Using the three point contact climbing method, slowly descend the
ladder and carefully keep a constant hand grip on the ladder at all
times until you reach the ground.
10. Tie one end of your hoist rope (not included) to the seat assembly.
Be sure your double knot is secure. Place (4) 1/4-20 x 1-3/4” wing
bolts in your pocket.
11. With other end of hoist rope, use the three point contact climbing
method to slowly climb the ladder and carefully keep a constant
hand grip on the ladder at all times. Once you reach the platform,
immediately attach your harness tether to the tree. sEE fIGuRE 8.
12. Carefully raise the seat assembly to the platform using the hoist rope
(sEE fIGuRE 8) and place seat post on top of the platform and align
the 4 holes in seat post plate to the 4 holes located in the center of
the platform. Remove (4) wing bolts from your pocket and use them
to secure the seat post/seat assembly to the platform. Wing bolts
should be inserted from the top and threaded into the nut welds
located on bottom side of platform. TIGhTEN sECuRElY BY hAND,
sEE fIGuRE 9.
13. Reverse setup and use instructions to take ladder down.

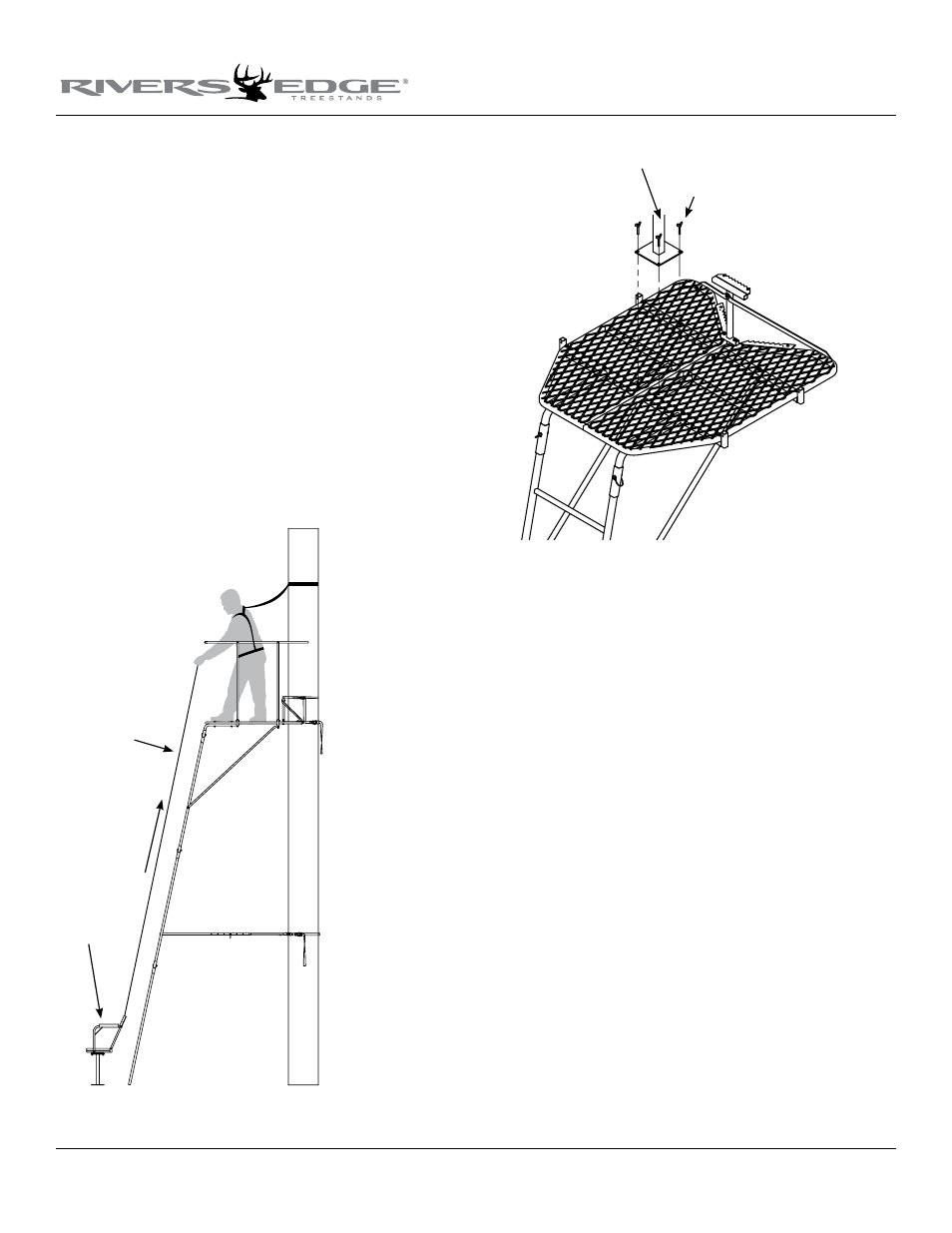

Figure 8
Figure 9
hoist rope
seat
assembly
seat post
1/4-20 x 1-3/4" wing bolts
