Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

35

Operator's Manual

Rivers Edge® One-Man Ladder Stands

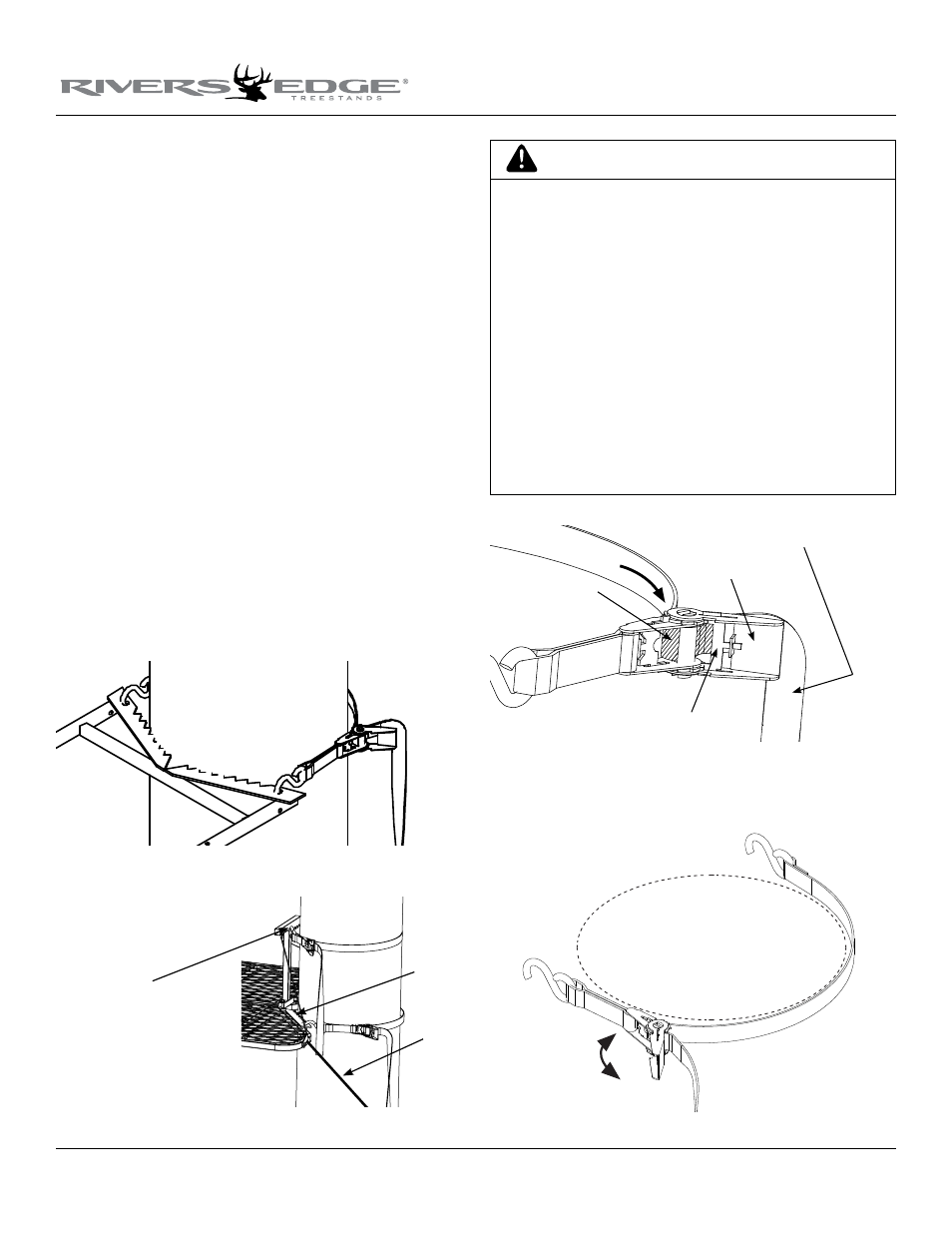

Figure 5a: Applies to RE607

Figure 5b: Applies to RE623, RE624, and RE632

upper tree blade

platform

tree blade

tie-off

rope

4. Standing on ladder step, lean toward tree with ratchet strap now in

hand, hook "S" hook with long strap through hole provided on tree
blade. Feed the long strap through the center (slot) of ratcheting
mechanism and back around through tightening lever. sEE fIGuREs

5a/5b AND 6.

notE: Be sure to feed the long strap correctly so there are no twists in

the strap.

Wrap entire ratchet assembly around tree and hook other "S" hook
through opposite tree blade hole. Pull tail of long strap until most of
the slack is taken out. Be sure entire strap is even and at the same level
all around tree. "Ratchet" tight to tree, this will securely attach ladder
to tree and prevent movement. sEE fIGuREs 5a, 5b, AND 7.

notE: to release ratchet, simply pull the release lever and open

tightening lever wide open (flat).

5. fOR RE623, RE624 AND RE632 ONlY: Repeat step 4 for second

tree blade attachment by placing “S” hooks through holes provided
on second tree blade. sEE fIGuREs 5b, 6, AND 7.

6. If applicable, attach backrest portion of seat to tree by wrapping the

long strap with buckle end around tree and snapping together with
opposite end. Adjust as needed.

7. If applicable, once seated, shooting rail can now be seated down

over studs. sEE fINIshED lADDER IllusTRATIONs.

8. fOR RE607, RE624 AND RE632: Reverse setup and use instructions

to take ladder down. This now completes the set-up instructions
for RE607, RE624, and RE632. fOR RE623, PlEAsE CONTINuE As

INsTRuCTED ON ThE fOllOWING PAGE TO PROPERlY INsTAll

YOuR sWIvEl sEAT.

TREE

Figure 7

ratchet

back and forth

Figure 6

pull tail to take out slack

tightening lever

release lever

feed through slot

WARNING

DO NOT AllOW EXCEssIvE sTRAP BuIlDuP IN RATChET As

ThIs WIll PREvENT ThE RATChET TEETh fROM ENGAGING

CAusING slIPPAGE.
AlWAYs ATTACh RATChET sTRAPs sECuRElY WhIlE usING

ThIs PRODuCT!
NEvER sTAND ON lADDER sEAT, IT Is DEsIGNED fOR sIT-

TING ONlY.
sEAT Is REMOvABlE. BE CERTAIN IT Is sECuRElY ATTAChED

WhEN IN usE.
BE suRE shOOTING RAIl Is sEATED All ThE WAY DOWN ON

sTuDs DuRING usE.
NEvER lEAN AGAINsT, lEAN OvER, OR sIT ON shOOTING

RAIl. IT Is DEsIGNED As A shOOTING REsT ONlY. AlWAYs

BE AWARE ThAT ThE shOOTING RAIl CAN sWING TO ONE

sIDE OR ThE OThER ON sOME MODEls.
BE suRE shOOTING RAIl Is sET Off TO ThE sIDE (ON ONE

sTuD) WhEN AsCENDING OR DEsCENDING lADDER.
