Operator's Manual

Rivers Edge® One-Man Ladder Stands

AssEMBlY INsTRuCTIONs (RE624)

Tools needed – two 7/16” wrenches, rubber mallet
iMpoRtAnt ASSEMBlY tip: do not tiGhtEn nut & Bolt coMBinA-

tionS coMplEtElY until All pARtS ARE ASSEMBlEd toGEthER!

FinGER tiGhtEn onlY pluS onE tuRn oF A WREnch onlY! thiS

Will tEMpoRARilY hold thE locK nut on thE Bolt WhilE hElp-

inG AliGnMEnt oF All pARtS! AFtER All pARtS ARE ASSEMBlEd

toGEthER, All nut And Bolt coMBinAtionS MuSt BE coMplEtE-

lY tiGhtEnEd!

1. Attach the (2) platforms together using (2) provided 1/4-20 x 2”

bolts, locknuts and steel washers. sEE fIGuRE 1. DO NOT tighten

all nut and bolt assemblies completely!

2. Attach the (2) platforms (410000) to the platform J-pipes (410003)

using (8) provided 1/4-20 x 2-1/4” bolts, locknuts and steel wash-

ers. sEE fIGuRE 2.

notE: Mesh surface of foot platforms should be on top.

3. Attach the tree blade weldment (2ML130) to the platform J-pipes

using (2) provided 1/4-20 x 2-1/2” bolts, locknuts and steel wash-

ers. sEE fIGuRE 2.

4. Attach the (2) seat upright weldments (410005) to the platform

J-pipes using (4) provided 1/4-20 x 1-1/2” bolts and locknuts. sEE

fIGuRE 3.

5. Attach the seat upright loop (410023) by inserting each end into

the seat upright weldments. Secure these parts together along

with the (2) armrest straps (410103) using (2) provided 1/4-20 x

1-3/4” bolts, locknuts and (4) steel washers. sEE fIGuRE 3. Bolts

must go through two holes in armrest straps. Armrest straps must

wrap around back side of seat upright weldments.

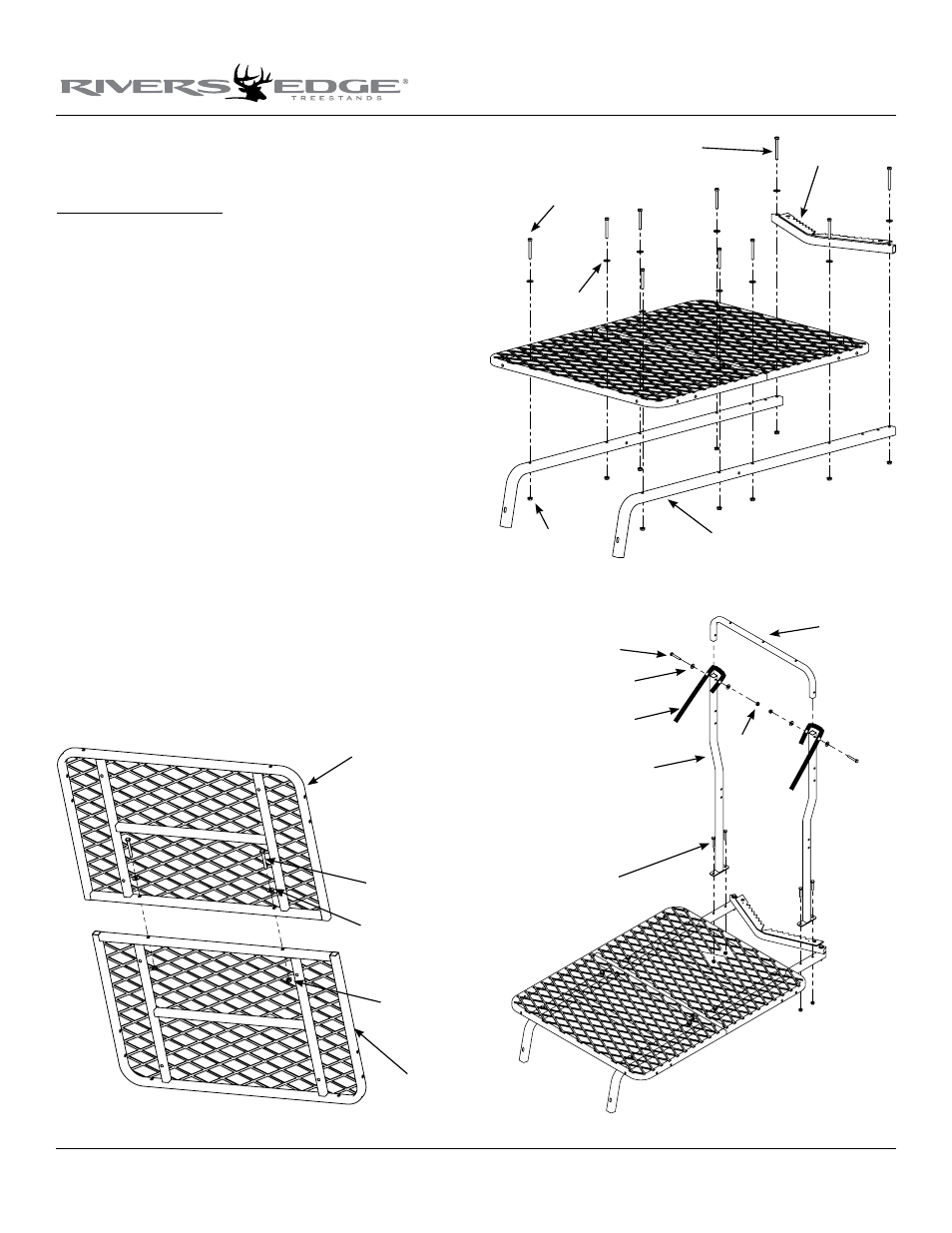

Figure 3

Figure 2

Figure 1

front platform

rear platform

1/4-20 x 2" bolts

steel washers

locknuts

platform J-pipes

1/4-20 x 2-1/4" bolts

steel

washers

locknuts

tree blade

weldment

1/4-20 x 2-1/2" bolts

locknuts

seat upright

weldments

seat upright

loop

1/4-20 x 1-3/4" bolts

1/4-20 x 1-1/2" bolts

steel washers

armrest straps
