Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

11

Operator's Manual

Rivers Edge® One-Man Ladder Stands

AssEMBlY INsTRuCTIONs (RE623)

Tools needed – two 7/16" wrenches, rubber mallet
iMpoRtAnt ASSEMBlY tip: do not tiGhtEn nut & Bolt coMBinA-

tionS coMplEtElY until All pARtS ARE ASSEMBlEd toGEthER!

FinGER tiGhtEn onlY pluS onE tuRn oF A WREnch onlY! thiS Will

tEMpoRARilY hold thE locK nut on thE Bolt WhilE hElpinG AliGn-

MEnt oF All pARtS! AFtER All pARtS ARE ASSEMBlEd toGEthER, All

nut And Bolt coMBinAtionS MuSt BE coMplEtElY tiGhtEnEd!

1. Attach (1) ladder receiver J-pipe (112ML70) to the bottom of left

foot platform (112ML66) and (1) ladder receiver J-pipe to the bottom

of right platform (112ML69) using (4) provided 1/4-20 x 2-1/2” bolts,

locknuts and steel washers. sEE fIGuRE 1. DO NOT tighten all nut

and bolt assemblies completely!
notE: Mesh surface should be on top.

2. Attach left and right platforms together using (2) provided 1/4-20

x 2-1/2” bolts, locknuts and steel washers. sEE fIGuRE 1.

3. Attach (1) platform spanner tube (112ML77) to the bottom of

assembled platforms (near front end of platforms) using (4) provided

1/4-20 x 2-1/2” bolts, locknuts and steel washers. sEE fIGuRE 2.

notE: pockets of platform spanner tubes should be orientated

upward.

4. Attach (1) platform spanner tube (112ML77) and (2) support tubes

(112ML75) to the bottom of assembled platforms (near back end of

platforms) using (2) provided 1/4-20 x 3-1/4” bolts, (2) 1/4-20 x 2-1/2"

bolts, (4) locknuts and (4) steel washers. sEE fIGuRE 2.

notE: pockets of platform spanner tubes should be orientated

upward.

notE: Bent ends of support tubes must be attached to the platform

spanner tubes.

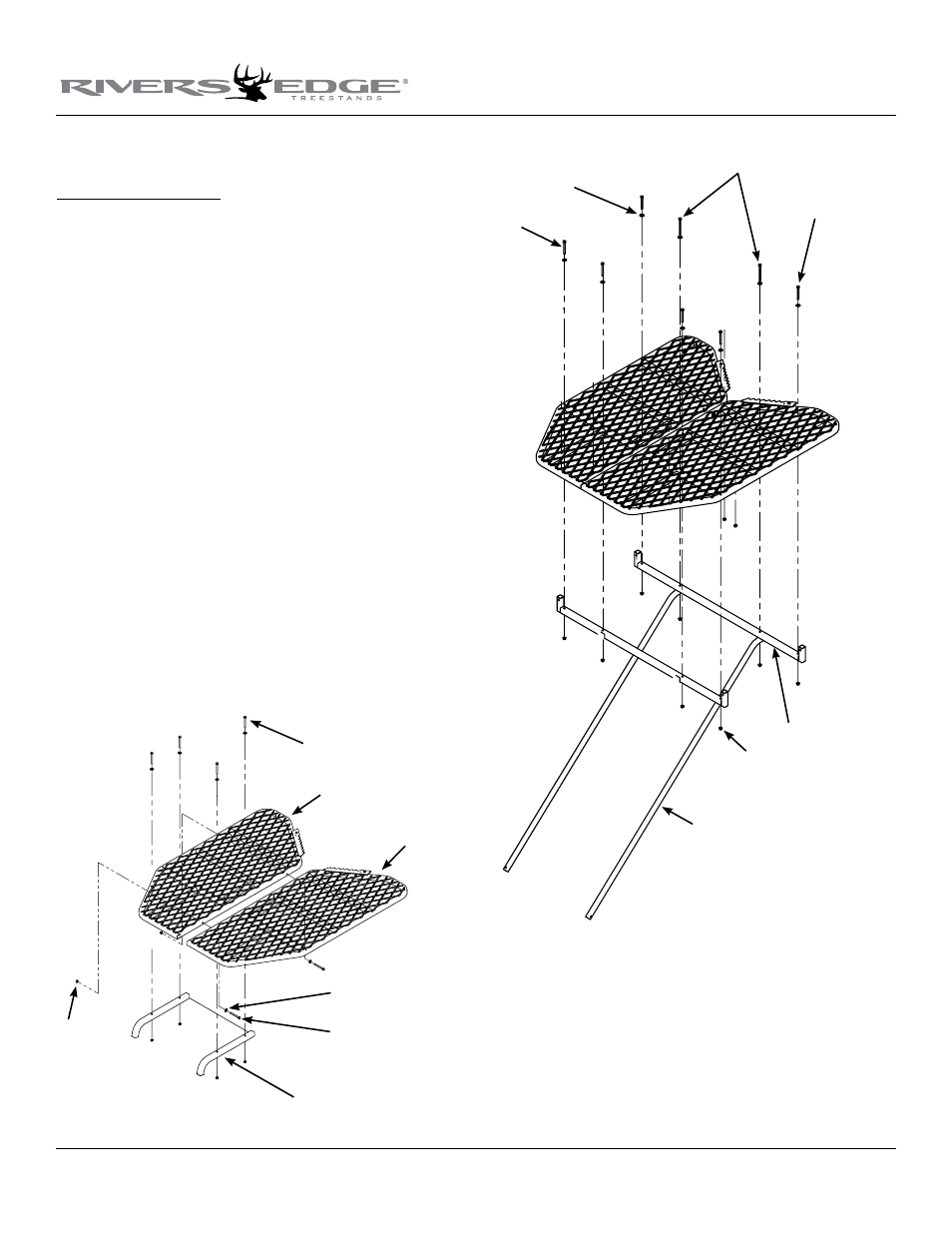

Figure 1

Figure 2

locknuts

right foot

platform

left foot

platform

1/4-20 x 2-1/2" bolts

steel washers

1/4-20 x 3-1/4" bolts

1/4-20 x 2-1/2" bolts

platform spanner tubes

locknuts

support tubes

steel washers

1/4-20 x 2-1/2" bolts

ladder receiver j-pipes

1/4-20 x 2-1/2"

bolts
