Operator's Manual

Rivers Edge® One-Man Ladder Stands

AssEMBlY INsTRuCTIONs (RE632)

Tools needed – two 7/16” wrenches, one 9/16" wrench
iMpoRtAnt ASSEMBlY tip: do not tiGhtEn nut & Bolt coM-

BinAtionS coMplEtElY until All pARtS ARE ASSEMBlEd to-

GEthER! FinGER tiGhtEn onlY pluS onE tuRn oF A WREnch

onlY! thiS Will tEMpoRARilY hold thE locK nut on thE Bolt

WhilE hElpinG AliGnMEnt oF All pARtS! AFtER All pARtS ARE

ASSEMBlEd toGEthER, All nut & Bolt coMBinAtionS MuSt BE

coMplEtElY tiGhtEnEd!

1. Attach the front platform (410050) and the rear platform (410058)

together using (2) provided 1/4-20 x 2” bolts, locknuts and steel

washers. sEE fIGuRE 1. DO NOT tighten all nut and bolt

assemblies completely!

notE: Mesh surface of foot platforms should be on top.

2. Attach the platform support rails (410055) to the bottom of

assembled foot platforms using (8) provided 1/4-20 x 2-1/4” bolts,

locknuts and steel washers. sEE fIGuRE 2.

3. Attach the platform flat bars (1ML40) to the rear platform and

platform support rails using (4) provided 1/4-20 x 1-1/2” bolts and

locknuts. sEE fIGuRE 2.

4. Attach the front of the ladder side rails (410053) to the front platform

using (2) provided 1/4-20 x 2” bolts, locknuts and (4) steel washers.

sEE fIGuRE 3.

5. Attach the left armrest (410062L), right armrest (410062R) and (2)

backrest mount tubes (410082) to the previously assembled ladder

side rails and platform support rails using (2) provided 1/4-20 x 2”

bolts, (4) 1/4-20 x 2-1/4” bolts, (2) 1/4-20 x 3” bolts, (8) locknuts and
(8) steel washers. sEE fIGuRE 3.

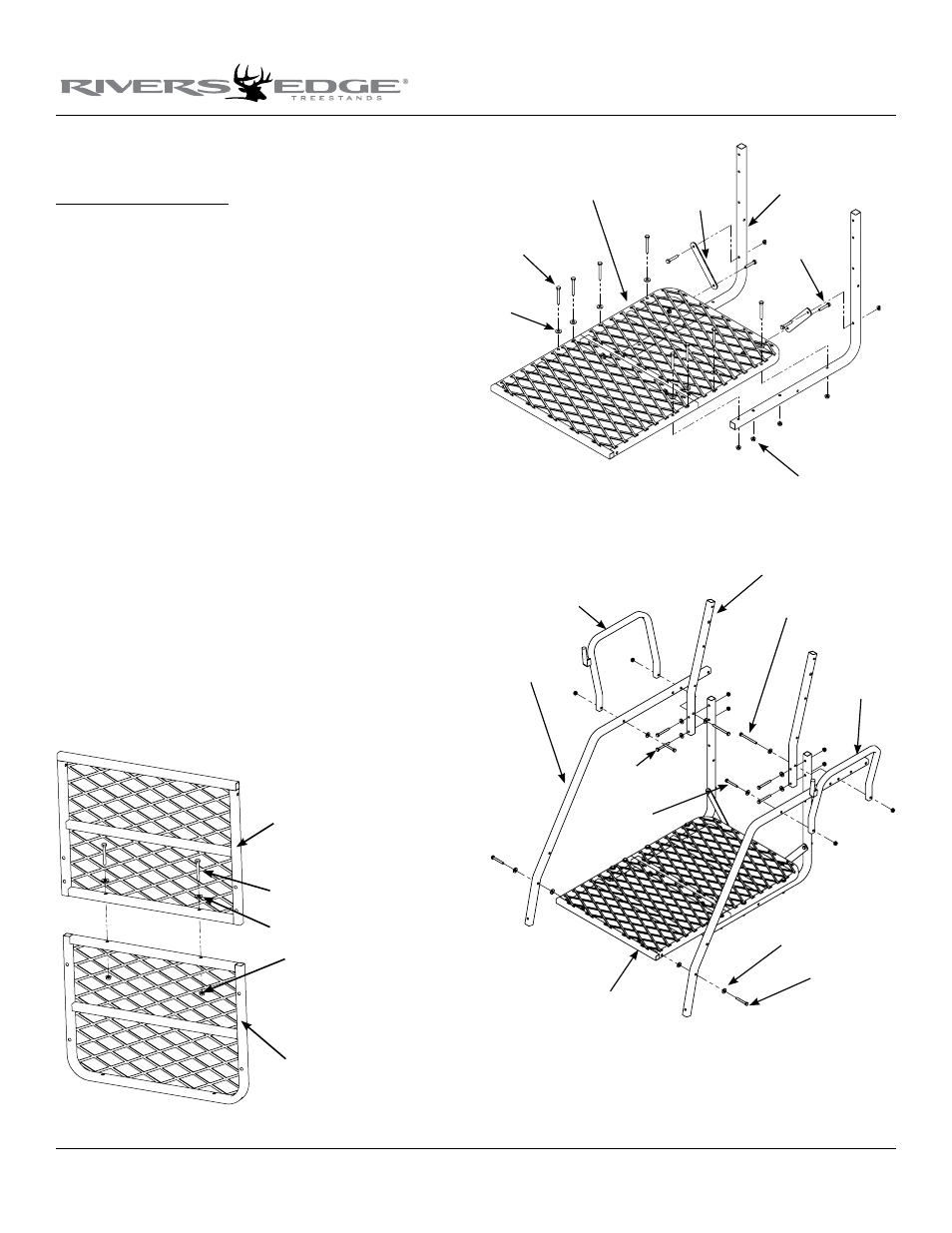

Figure 2

rear platform

platform support rail

platform flat

bars

1/4-20 x 2-1/4" bolts

steel

washers

locknuts

1/4-20 x

1-1/2" bolts

Figure 3

ladder side rails

steel washers

1/4-20 x 2" bolt

locknuts

right

armrest

backrest mounts

1/4-20 x 3" bolts

left

armrest

1/4-20 x

2-1/4" bolts

1/4-20 x 2"

bolts

Figure 1

front platform

rear platform

1/4-20 x 2" bolt

steel washers

locknuts
