9
30064IN – 8-21-08, rev E PCN11321 ©2005, 2008 CEQUENT TOWING PRODUCTS, INC. Litho in USA

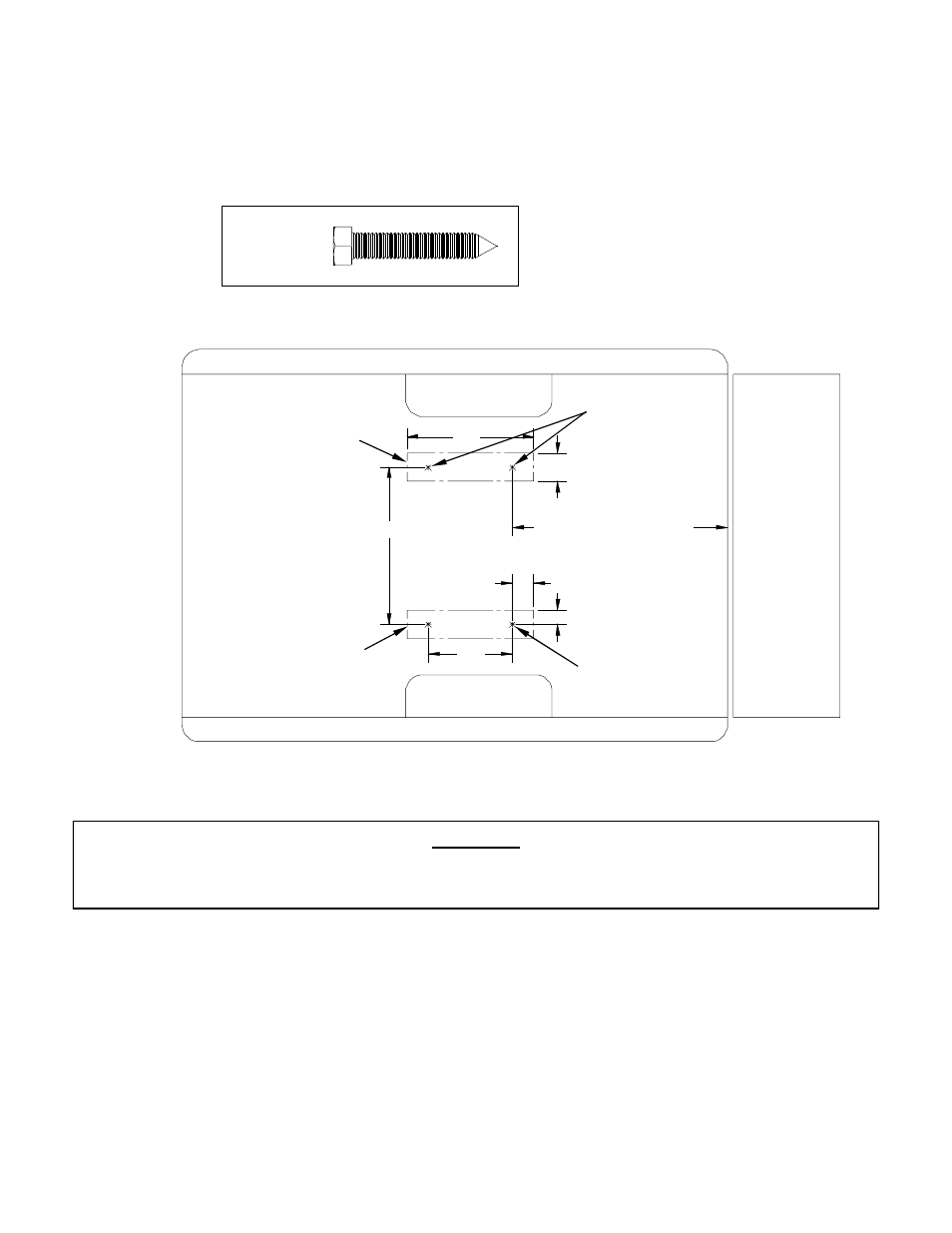

12. Using pointed bolt ( Figure 19 ), screw pointed bolt in to the nut that is welded to the rail assembly until a prick mark
is clearly visible on the truck bed ( Figure 18 ). If access to the fourth welded nut is not possible due to vehicle
obstructions, the fourth prick mark should be marked on the bed based upon measuring from the other prick marks
(
Figure 20 ). If you have a plastic bed liner cut 19” X 4” slots in plastic drop-in bed liner measured from prick marks
in truck bed. If the Signature Series slider fifth wheel assembly is used, then see fifth wheel assembly instructions for
slot cut dimensions.
30"
2"
3"
19"
4"
13"
**Measure distance for
cutting plastic bed liner.
Figure 20
Prick mark
Cut bed liner
Cut bed liner
Prick mark
Truck Bed
Tailgate
13. Move rails rearward or forward to prevent interference with hole drilling or punching of truck bed.
CAUTION:
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural
members, etc. CEQUENT TOWING PRODUCTS does its best to communicate tow vehicle manufacturer
changes; however, it is ultimately the responsibility of the installer to prevent damage due to installation.
14. Drill pilot holes in truck bed at prick mark locations. With hole saw or knockout punch create 2 1/2” hole
centered at pilot holes. Note: Consult installer for recommended curing time on spray-in liner before cutting
holes through bed. Optional: Spray under coating around 2 1/2” holes to prevent rusting.
15. Loosely reattach rails to frame bracket.
Figure 19
