6. Insert rails as shown in the following steps ( FIGURES 10 through 12 ). Front (channel) rail should be inserted first
flat side up followed by rear (angle) rail flat side down with holes toward rear of vehicle.

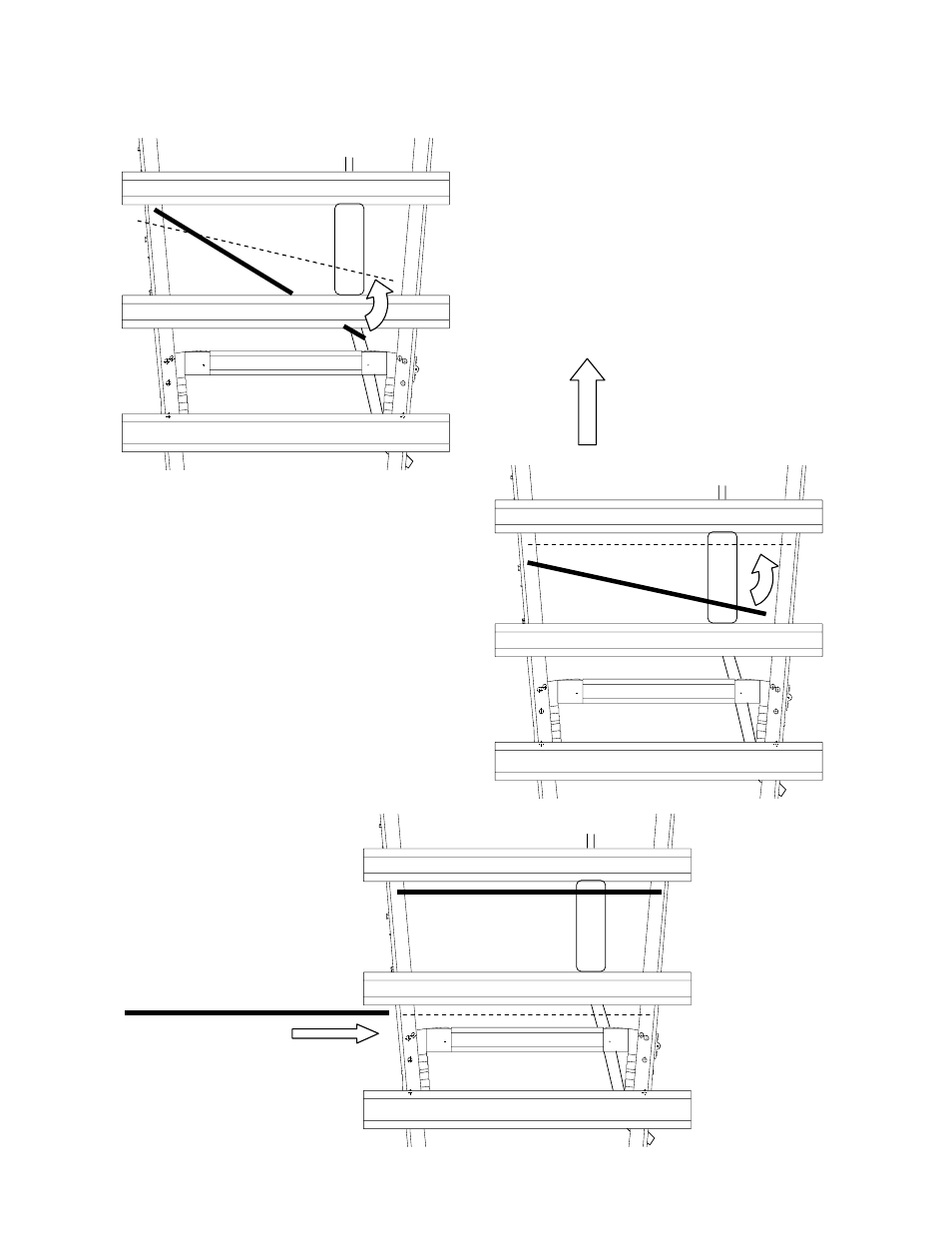

Figure 10
Step 1: Slide the front (channel) rail
up from the rear passenger side and
while flexing down the brake line
bracket for clearance place the end of
the rail on the driver side of the
chassis frame and rotate the
passenger side over the exhaust.
F
r
a
m
e
F
r
a
m
e
Bed Channel
E
x
h
a
u
s
t
Bed Channel
Bed Channel
F
r
a
m
e
F
r
a
m
e
Bed Channel
E
x
h
a
u
s
t
Bed Channel
Bed Channel
Figure 11
Step 2: Rest both ends of the front rail
on the chassis rails and slide the rail
forward.
Front of
vehicle
F
r
a
m
e
F
r
a
m
e
Bed Channel
E
x
h
a
u
s
t
Bed Channel
Bed Channel
Figure 12
Step 3: Slide rear rail between
chassis frame and truck bed
from driver side wheel well until
resting evenly on both sides of
chassis frame rails.
