5
30064IN – 8-21-08, rev E PCN11321 ©2005, 2008 CEQUENT TOWING PRODUCTS, INC. Litho in USA
1. The following instructions should be used to mount the 5th wheel. Care and attention to detail will ensure a quick
quality installation. Check parts against parts list to become familiar with parts in kit. ( Figure 1 )
2. Raise rear of truck high enough to allow jack stands to be placed under rear spring hanger bracket of truck. This
will provide maximum room to install the 5th wheel brackets.
3. Plastic drop-in bed liners must be cut out of the way. Remove plastic bed liner if applicable. Spray-in bed liners
and bed mats less than 1/4” thick will work with normal installation instructions. Note: Consult installer for
recommended curing time on spray-in liner before cutting holes through bed.
4. Use only CEQUENT TOWING PRODUCTS supplied bolts, nuts, and washers to install this kit. All bolts and nuts
are grade 8 unless specified otherwise.
5. These instructions are intended for a specific group of trucks. If these instructions do not apply to your vehicle,
contact Technical Service to get proper instructions. Each frame bracket must be bolted to the vehicle frame with
two bolts.
GENERAL INSTRUCTIONS FOR FIFTH WHEEL INSTALLATION
TOOLS
3/16" Drill
15/16" Socket & Open End Wrench
21/32" Drill 200 lb-ft Torque Wrench
3/8”, 1/2”, 5/8”, 3/4” Hex sockets 2-1/2” Hole Saw OR 2 1/2” Greenlee Knockout Punch
10 mm Hex socket Socket wrench extension (6 inch)
5/8-11 x 3 1/2” w/point
WARNING:
If the truck is raised, be sure that the truck is properly blocked and restrained to prevent the truck from falling.
Failure to do so may result in the truck suddenly falling, causing death or serious injury.
CAUTION:
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural
members, etc. CEQUENT TOWING PRODUCTS does its best to communicate tow vehicle manufacturer
changes; however, it is ultimately the responsibility of the installer to prevent damage due to installation.
CAUTION:
These instructions are guidelines only. Actual installation is the responsibility of the installer and the owner.
Always measure truck and trailer before installing hitch to be sure that there is clearance at the cab and at the
bumper to allow for turns.

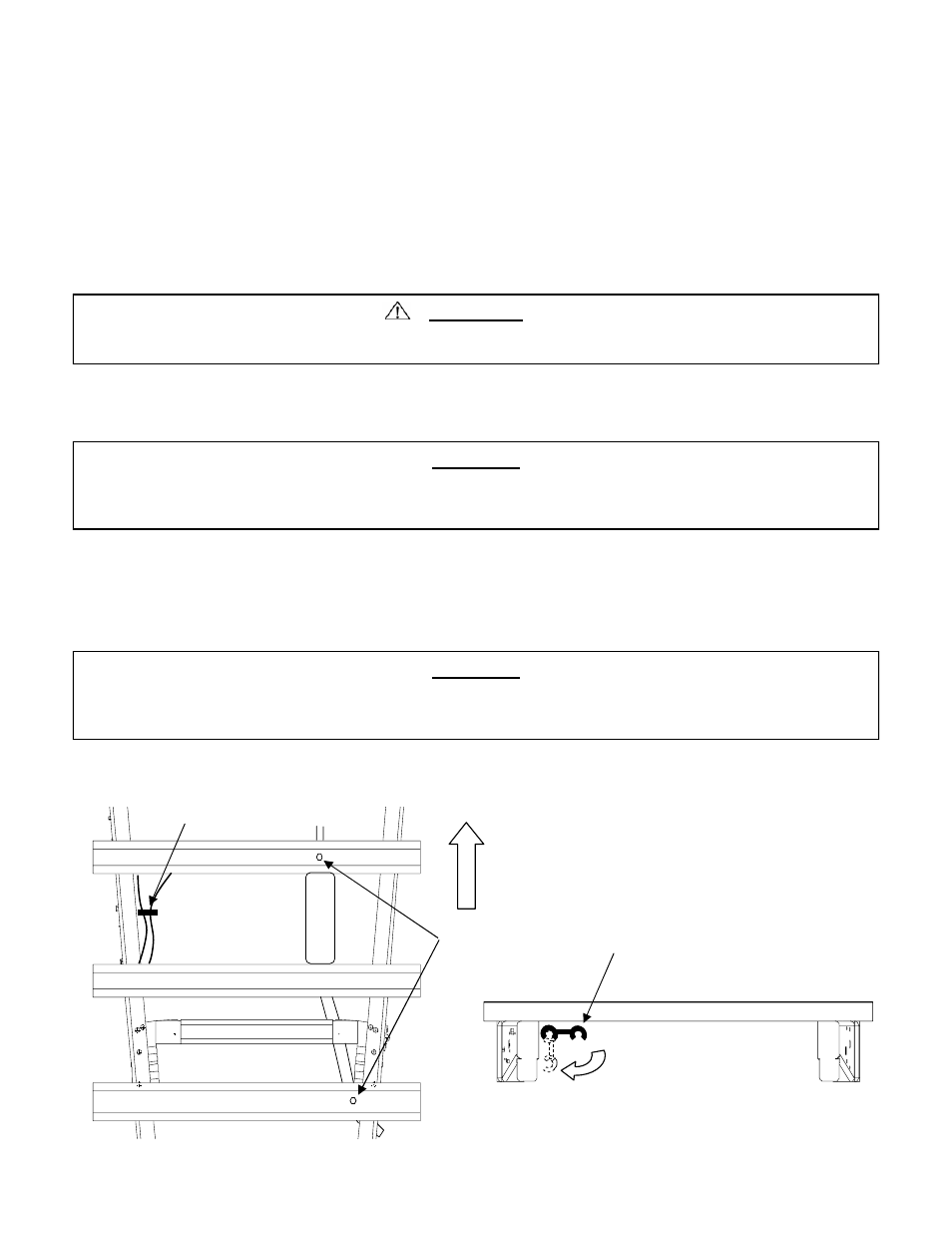

6. Detach chassis exhaust hanger bracket hardware from chassis bed channels at two locations using a 10mm socket
wrench ( Figure 8 ). Rotate wire harness 90° clockwise ( Figures 8 and 9 ). Remove spare tire according to vehicle
owners manual.
Figure 9
Wire harness
View from rear
of vehicle
Figure 8
Exhaust hanger
bracket
2 places
Wire harness
F
r
a
m
e
F
r
a
m
e
Bed Channel
E
x
h
a
u
s
t
Bed Channel
Bed Channel
Front of
vehicle
