8
30064IN – 8-21-08, rev E PCN11321 ©2005, 2008 CEQUENT TOWING PRODUCTS, INC. Litho in USA
10. Slide 17/32” washers and bolt plates over pull wire then thread pull wire onto 1/2” X 1 1/2” carriage bolts
( Figure 16 ). Insert free end of wire through hole vacated by the jounce block and guide wire to mounting holes
aligned with chassis frame and bracket ( Figure 15 ). Pull wire until carriage bolt is mated with square hole in the
bolt plate and washer is filling mounting hole in chassis frame and threaded portion of bolt is protruding from
chassis rails (
Figure 17 ). Unthread pull wire and repeat step for all four mounting hole locations.

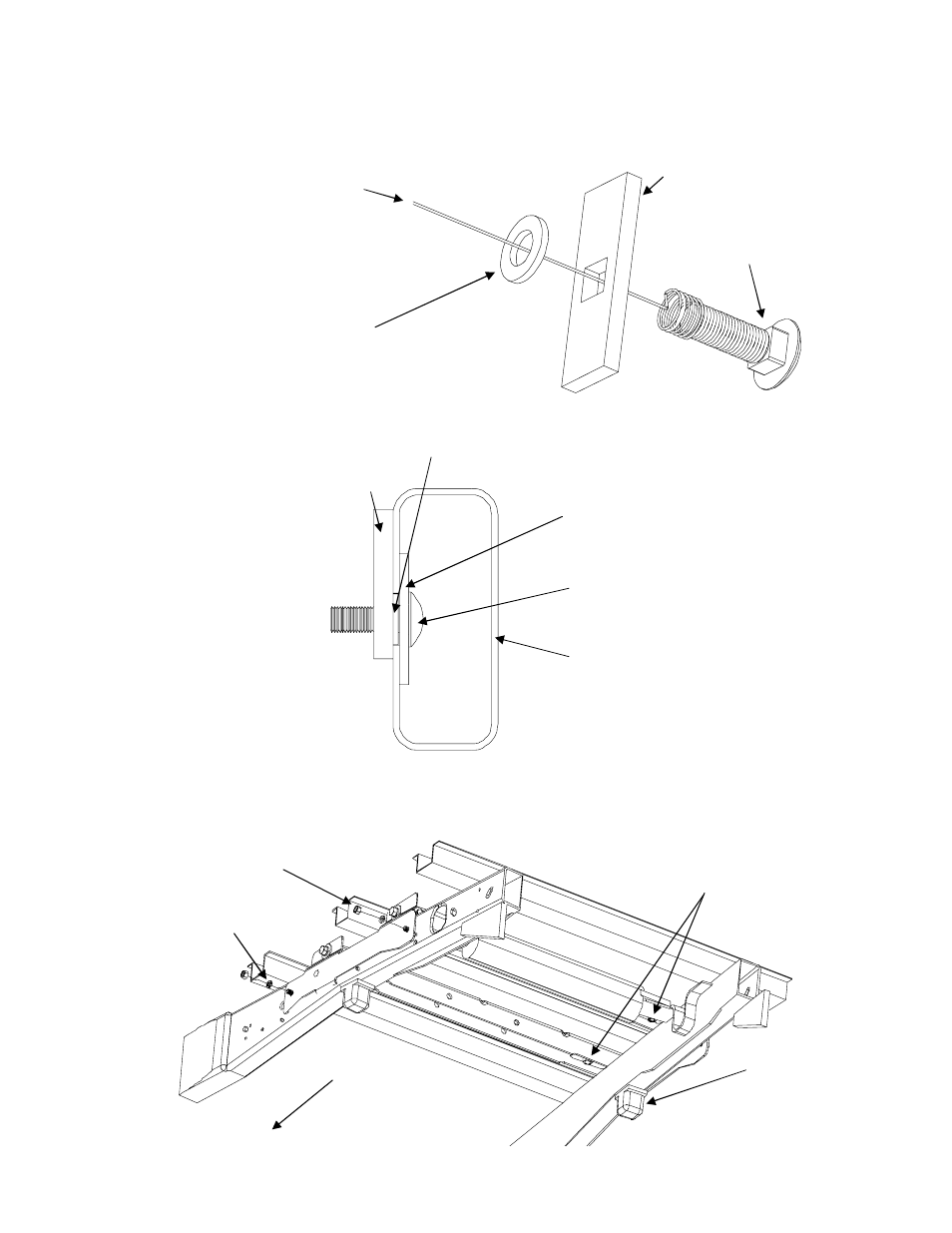

Figure 16
1/2” X 1 1/2” carriage bolt
Pull wire
17/32” washer
Note: Smaller outside diameter on
forward mounting holes.
Larger outside diameter on rearward
mounting holes
Bolt plate
Figure 17
Frame rails
Washer, filling larger
hole in frame
Bolt plate
1/2” X 1 1/2” carriage bolt
Bracket
11. Loosely attach frame bracket to frame rails using 5/8” nuts and lock washers, tighten until hand tight ( Figure 18 ).
Re-attach jounce block to the chassis frame rail.
Figure 18
Nut
4 places
Lock washer
4 places
Front of
vehicle
Jounce block
2 places
Screw pointed bolt
in welded nut
4 places
