Reese 50024 TITAN ROUND TUBE SLIDER User Manual

Page 4

50024N

Ŕ 7/5/11 F PCN12170

Printed in XXX

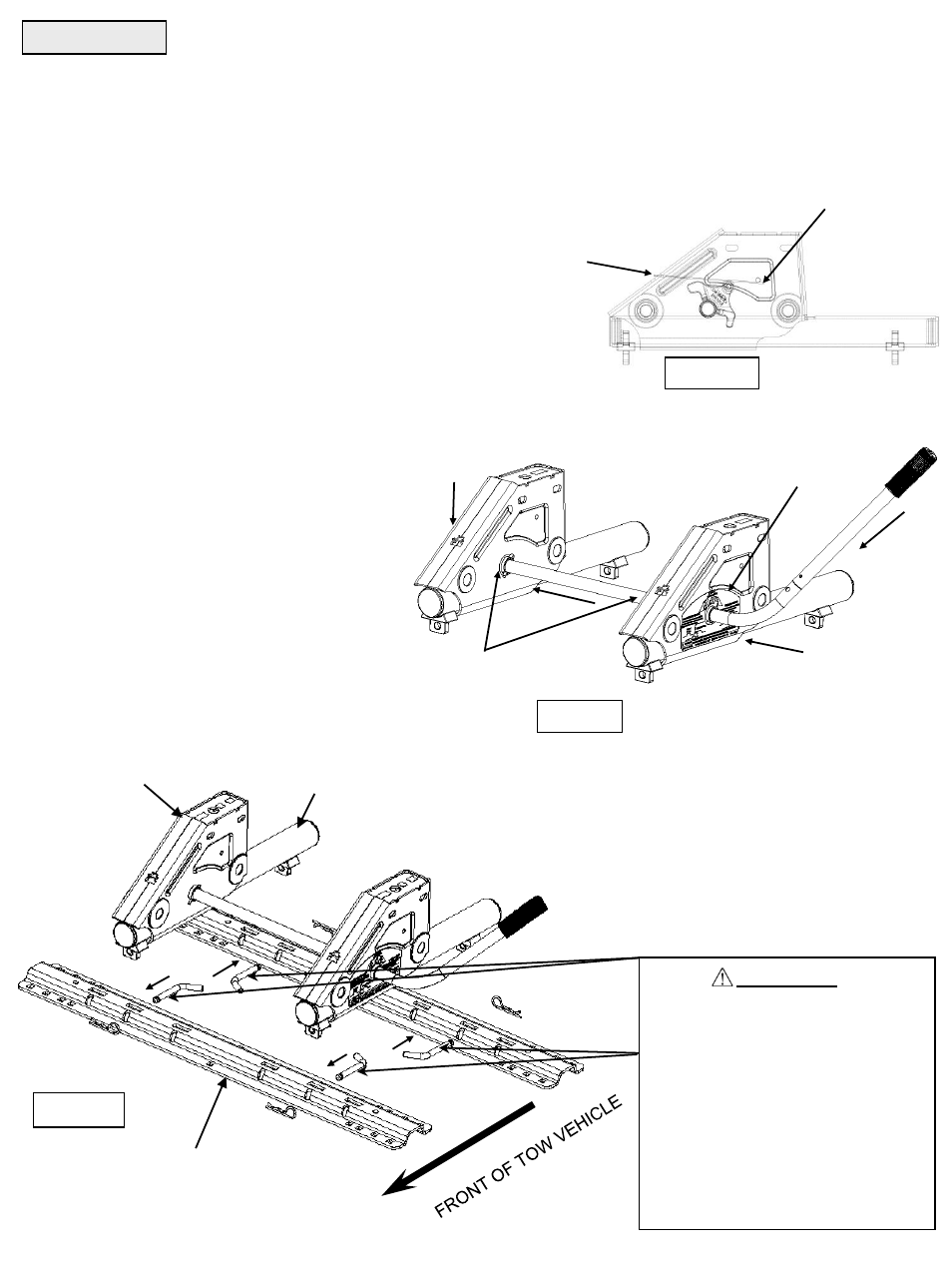

3. Before setting the REESE

™

FIFTH Wheel Slider

into the bed of the pickup. Insert the bent
handle(3) through drivers side assembly(2)
(

driver’s side of towing vehicle) and then

through passengers side slide assembly(1). Slide
straight handle(9) over bent handle(3). Install roll
pin(10). See Figure 8. It may be easier to lay the
handles on a firm surface to install the roll pin.
Then insert the handle into the drivers and
passengers assemblies. When installing handle
grip(8), rotate it so the molded finger areas align
for your use. Either left hand or right hand usage.

4. Set the REESE

™

FIFTH Wheel Slider into

base rails and pin in position as shown in
Figure 9 below.

Figure 9

Figure 8

2. Before installing REESE

™

FIFTH Wheel Slider,

the leaf spring must be greased as shown using
white lithium grease or equivalent (see Figure 7). For

best results, use aerosol white lithium grease with a

spray nozzle extension. Make sure entire

underside of spring is coated! Repeat this application

monthly during use.

Safety label facing
driver side.

1. These instructions should be used to mount the REESE

™

FIFTH Wheel Slider. Care and attention to detail will

ensure a quick, safe and quality installation. Check parts against Figure 1 to become familiar with kit.

INSTALLATION

WARNING:

Pull pin spring clips must

be on the outside of base rail

as shown. (Spring clips

installed on the inside of

base rail will not allow Slider

to move far enough to lock).

Sliders that are not properly

locked can suddenly move

and cause serious injury or

death.

Slide Tube

Slide Upright

Aerosol white lithium
grease spray with nozzle
extension

Leaf spring

Figure 7

BASE RAIL

Slip Ring

Slip
Ring
