Avaya P120 SMON User Guide 58
SMON Dialog Boxes
The dialog box contains the following fields:
• TopN Number - Enter the number of items to be displayed when you
activate TopN.
• Based On - Select the criterion for deciding which items fall in the
TopN. The rate base can be any one of the available counters.
Using the Find Top5 Peaks Dialog Box
In Switch Statistics, you can use the Find Top5 Peaks option to find the
largest value of any counter. This can help you find when a problem
occurred or when a problem was most severe.
To select the criterion for Find Top5 Peaks:
1. Click .
Or
Select Edit > Find . The Find Top5 Peaks dialog box opens.

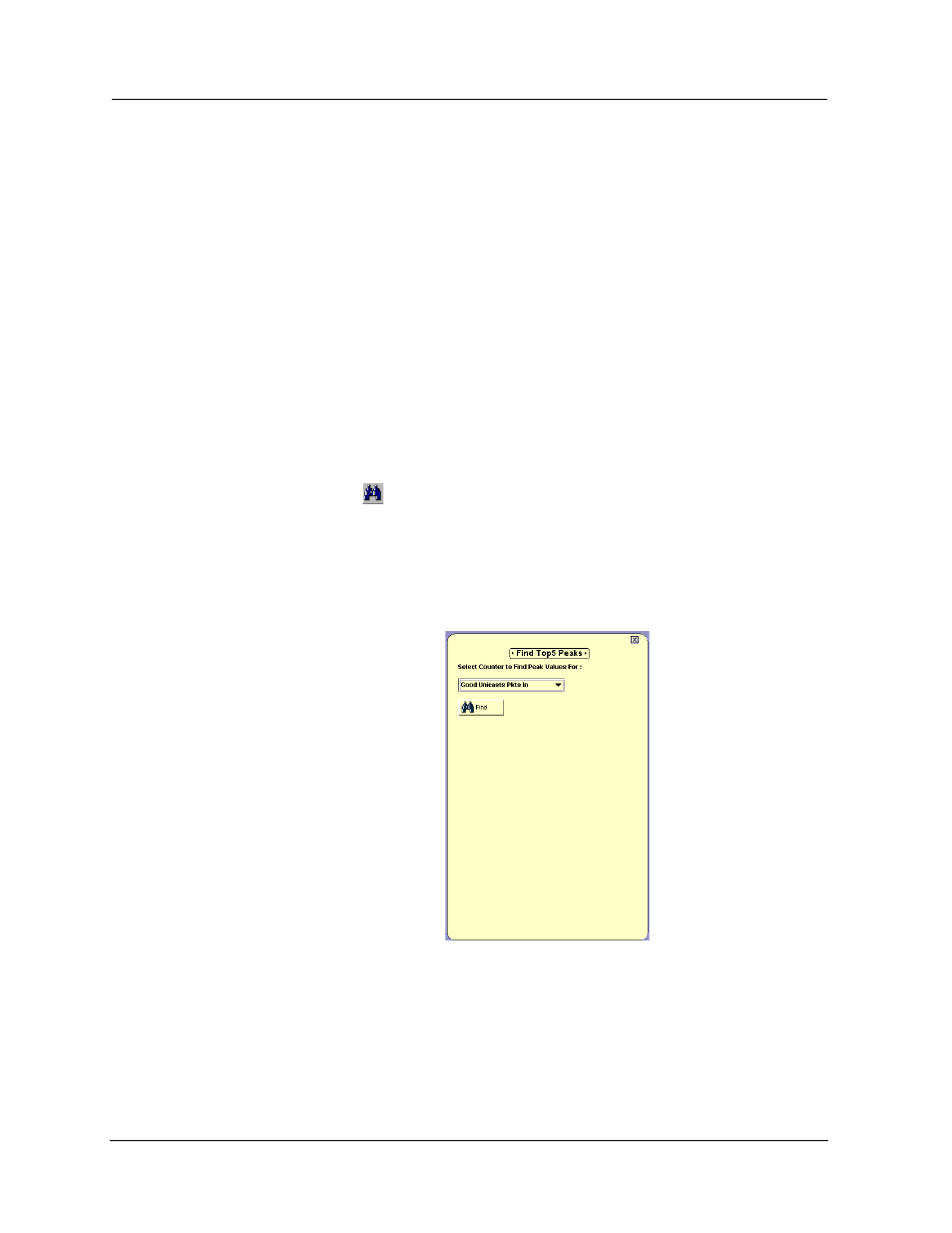

Figure A-10. Find Top5 Peaks Dialog Box
2. Select a counter.
3. Click Find . The display scrolls the graph to the peak value and a
vertical line appears at the peak value. The pie values at the top are
correct for this time period. The graph is frozen.
