Sequence Select Timing

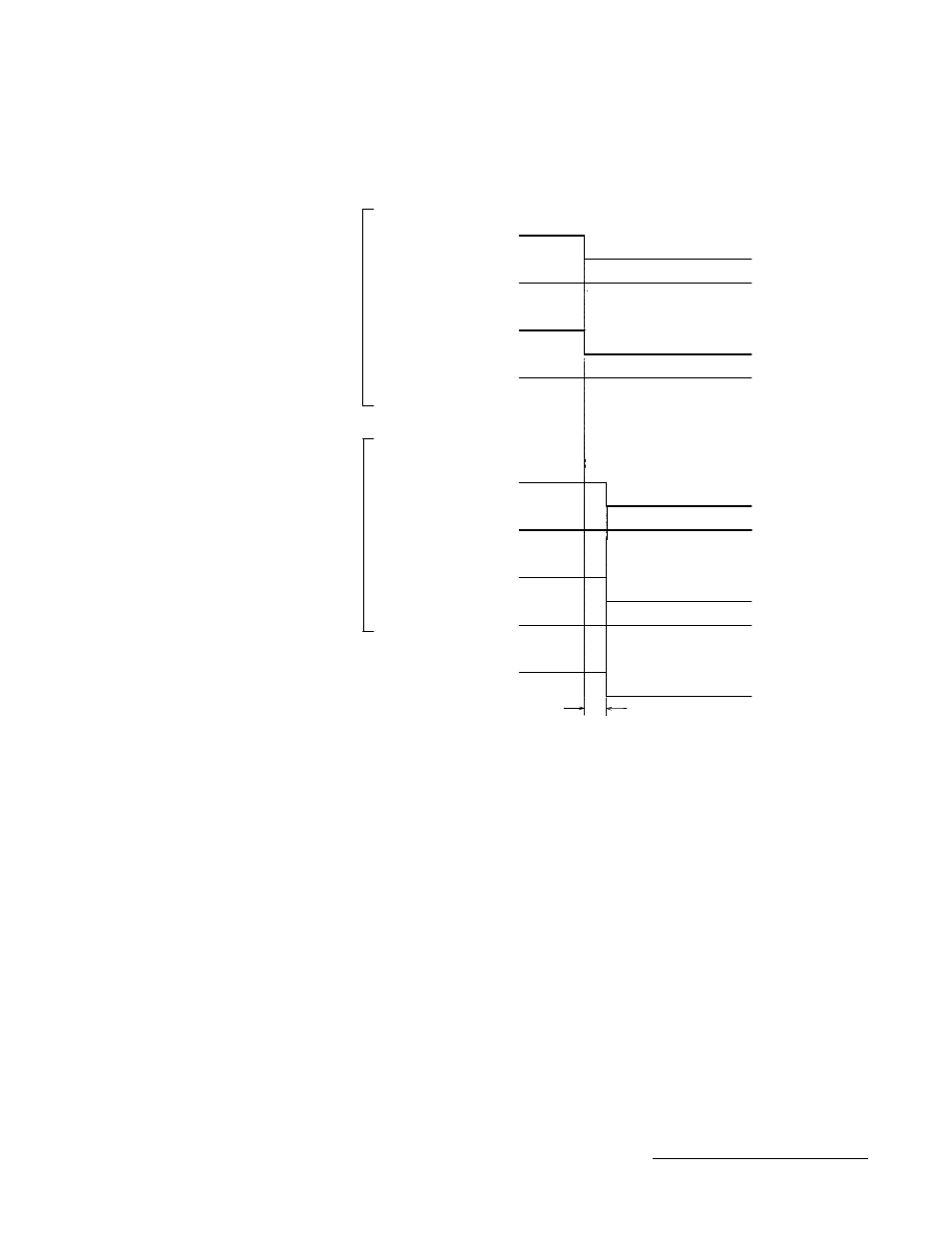

This example shows the sequence select timing for selecting sequence #6.
It is recommended when changing sequences that the Sequence Select outputs
be used to verify that the sequence has been changed before issuing a start
signal. Delay from Sequence Select input to Sequence Select output is
approx. 5ms.
Chapter 4: I/O and Output Data
59
SEQUENCE SELECT 0
SEQUENCE SELECT 1
SEQUENCE SELECT 2
SEQUENCE SELECT 3
START
ON
OFF
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
OFF
SEQUENCE SELECT 3
SEQUENCE SELECT 2
SEQUENCE SELECT 1
SEQUENCE SELECT 0
ON
OFF
5ms
INPUTS
OUTPUTS
