Signal Timing

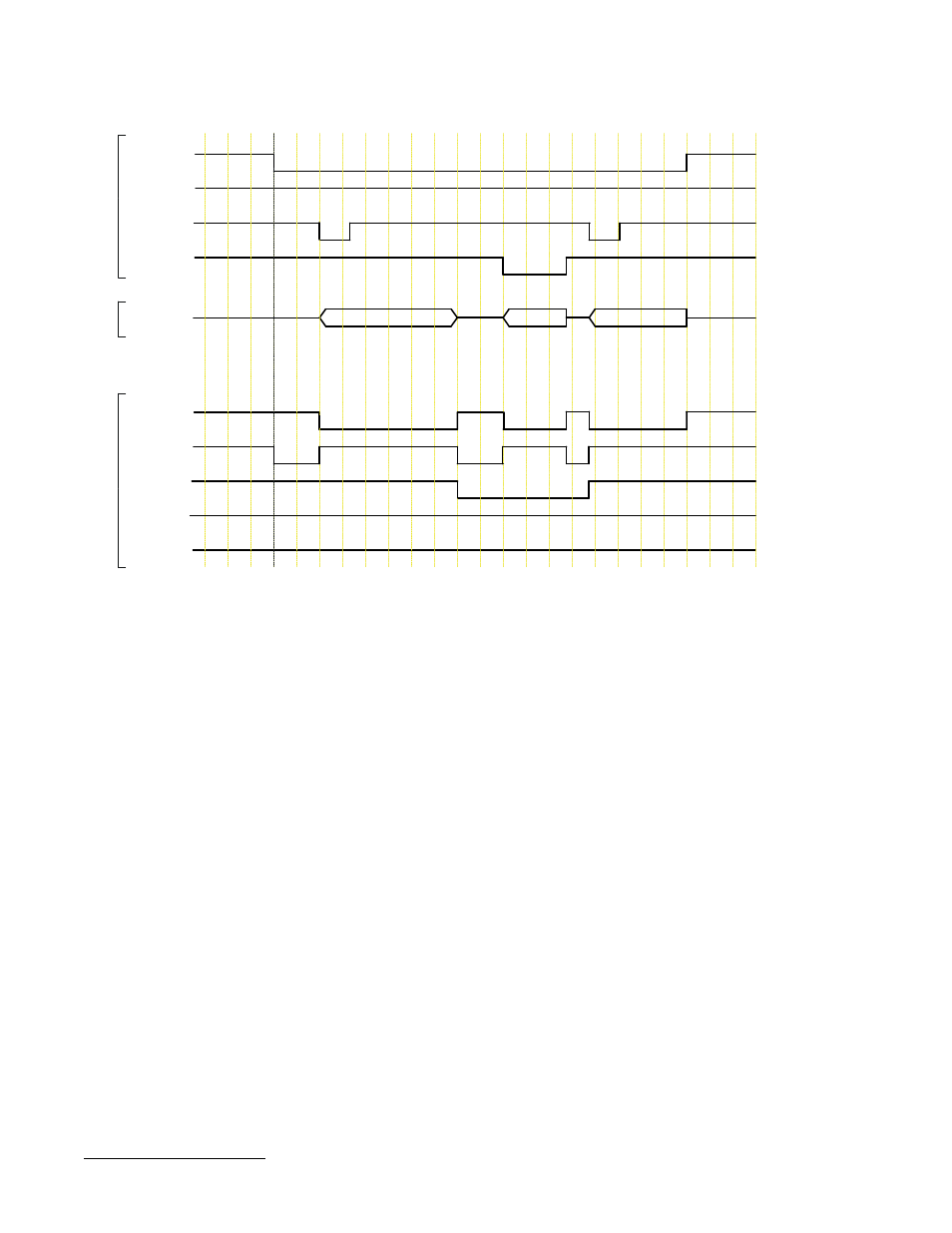

The chart below shows basic Multi Unit signal timing.
§ Because the RESET input clears all fastening data, and discrete outputs, it
should be activated only to clear a system Abnormal or to perform a Zero
Level Check. The System will automatically reset with each fastening,
and a Manual RESET activation between cycles could result in data loss.
The RESET signal requires a pulse of 200~500 milliseconds.
§ The REVERSE signal must be maintained for the duration of the desired
REVERSE function.
§ The STOP input is Normally Closed, and enables all other functions.
When STOP is Open (off), all operations cease and all inputs / outputs
become inactive.
§ The START signal will not operate during RESET, REVERSE, or
ABNORMAL signal activation. The START signal requires a pulse of
200~500 milliseconds for the AUTO START mode. For the DEADMAN
mode (Used mainly in handheld applications), the signal must be
maintained during the complete fastening cycle.
§ When the ABNORMAL signal is active, The system must be RESET
before normal operation will resume.
§ REJECT / ACCEPT signals are maintained until the start of the next cycle.
§ READY will indicate when the system is ready to start.
