FEC AFC1500 - Manual (Page 13)

Description of Unit
Power on LED
Busy LED
Accept LED
Reject LED
Abnormal LED
RS485 port
Reset button
Start button
Reverse button
Calibration button
Software EPROMs
Serial Port COM1
Serial Port COM2
Serial Port COM3
Interface board
Power connector
Lights when a system abnormal condition is detected in the control
system of any connected spindles. (Does NOT indicate a fastening
reject). All operations are halted and cannot be restarted until the
Abnormal condition is corrected. Can be cleared only by the Reset
function. (see AFC1500 Fastening System Manual for Abnormal
Troubleshooting) Abnormal LED
Lights if a fastening cycle or a self check test is outside of acceptable
parameters. (This LED indicates status for ALL connected spindles) Reject LED
Lights if a fastening cycle or a self check test falls within acceptable
parameters. (This LED indicates status for ALL connected spindles) Accept LED
Lights when the unit is performing a self check, reverse, fastening
operation or is downloading/uploading data to the AFC User Console
software package. Busy LED
Indicates when power is applied to the Multi Unit. Power On LED

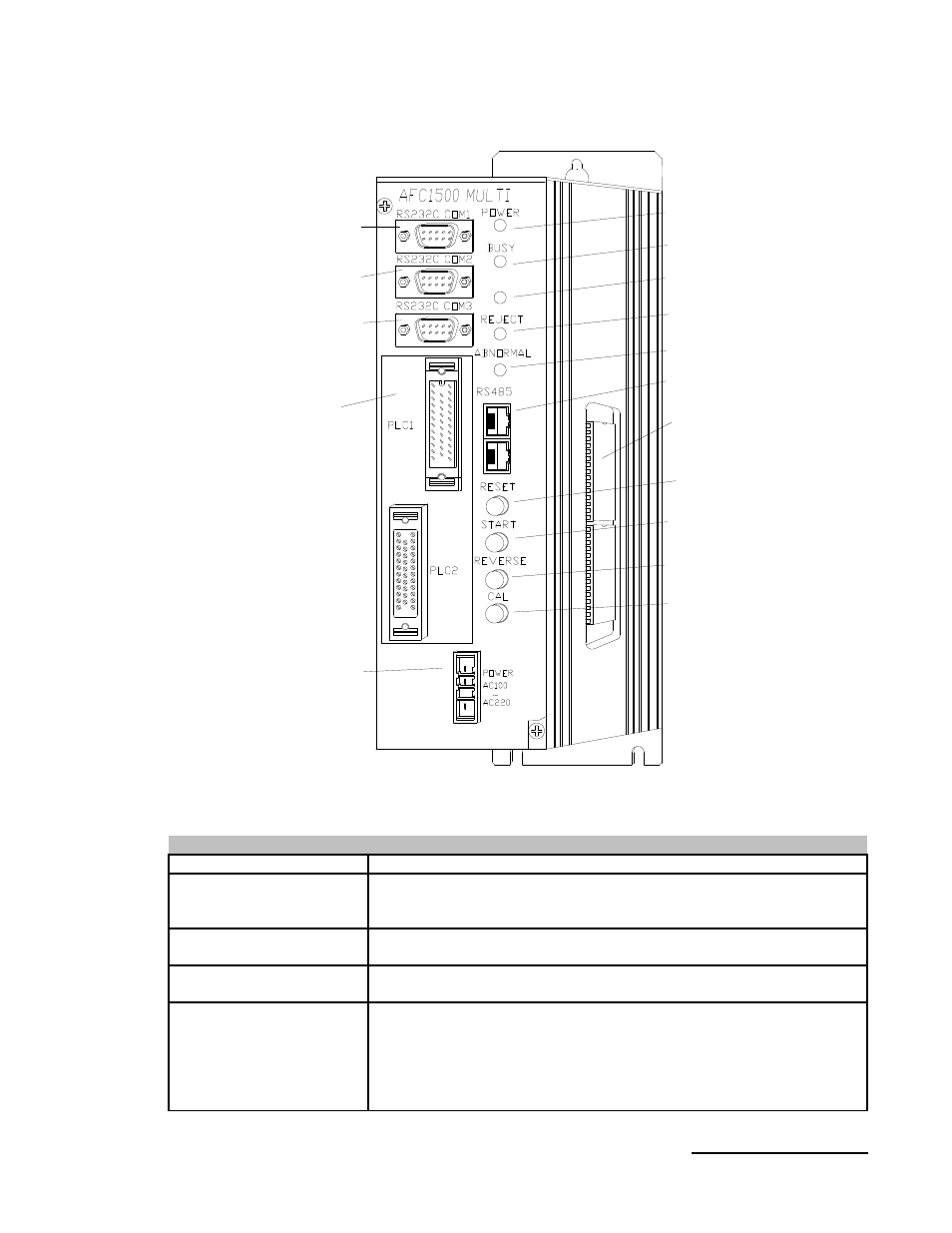

Multi Unit Panel Description
Chapter 1: Multi Unit Outline
13
