Discrete Signal Connection
The Discrete I/O Interface operates with 24VDC Sink type (True Low)
connections as a default. (Contact FEC if 24VDC Source type (True High)

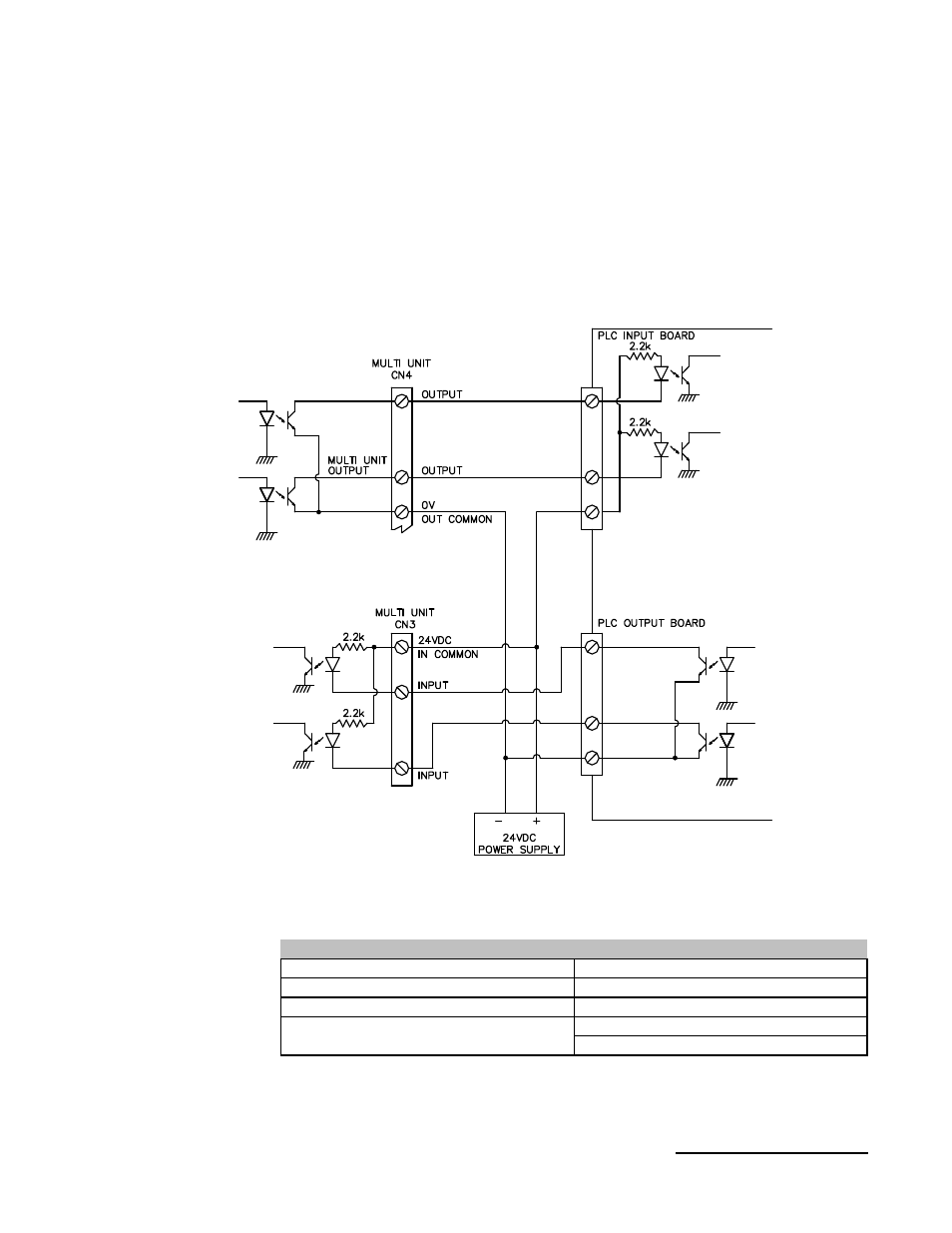

connections are desired) Typical configuration connection is shown in the
figure below;

CN4: Output

CN3: Input

Connector

True Low (Sinking)

Logic

200 ma

Maximum current (outputs)

24 VDC

Operating Voltage

Discrete I/O Port Specifications

Chapter 3:

Control Interfaces
