4.7.13.3 C HROMATOGRAM
The Chromatogram function is available from the HOME screen
using the “Chromatogram” button on the lower right corner of the
screen. This function displays the ADC count as a function of the
number of samples taken (seconds). It is useful for troubleshooting as
well as setting up new applications.

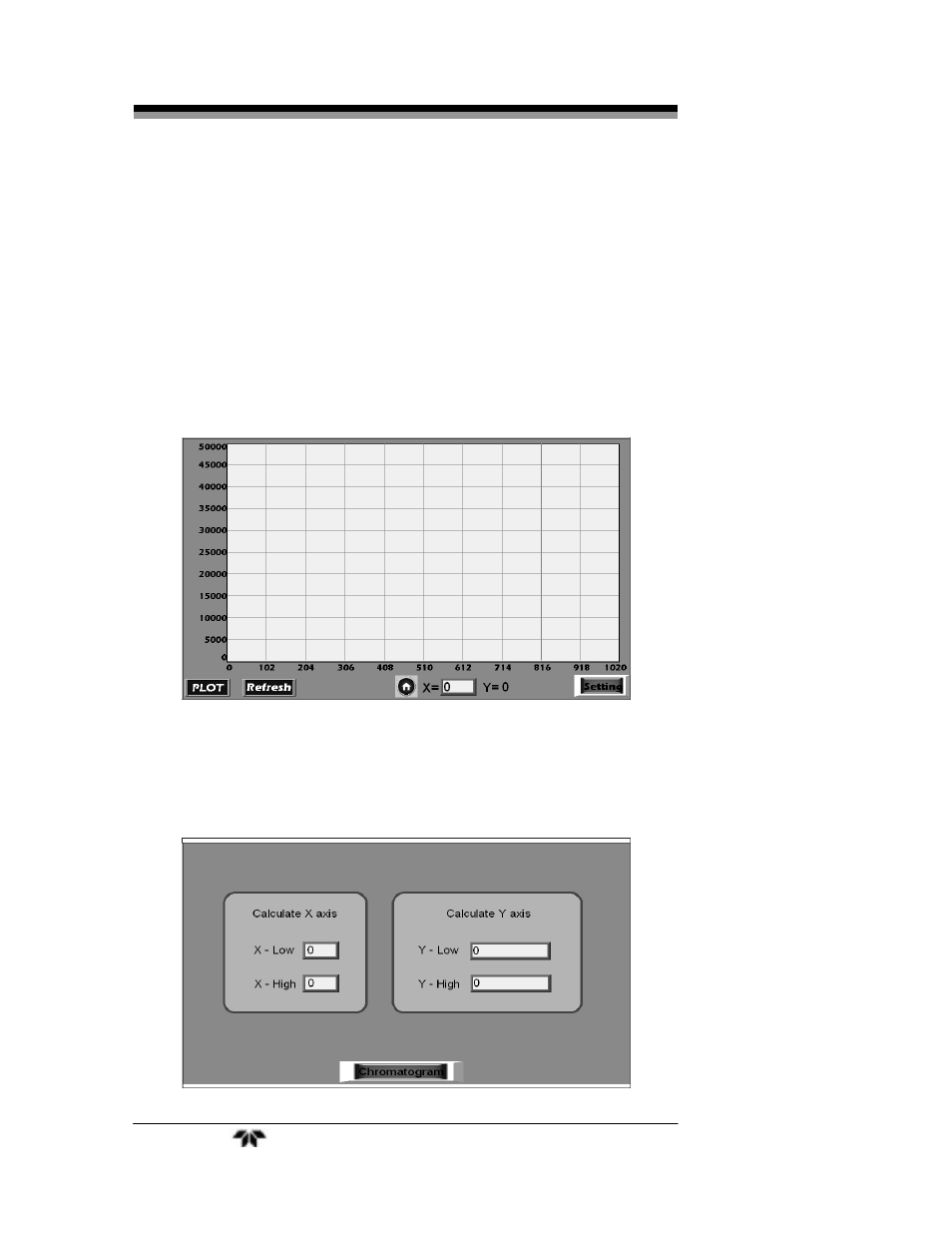

Selecting “Chromatogram” from the HOME screen brings up the
following screen:
Touching the “PLOT” button will display the graph on the screen
and touching the “Refresh” button will clear it. Low and high limits on
both the X and Y axis can be changed by touching the “Setting” button.
This will cause the following screen to appear:
