GC-Pro FID Operation
Teledyne Analytical Instruments 59
4.7.9 Analog Adjust
The GC-Pro FID Analyzer has ten 4-20 mA DC output channels that
can be assigned to the various groups. Any group can be assigned to any
output channel and it is also possible to assign groups to multiple
channels.
Channel 0 and channel 2 are unique channels. For these channels the
user can assign gain and offset values to the output. Channel 0 has an
additional feature called “WAVE” which when selected will assign the
ADC counts to the 4-20 mA output for the group assigned to channel 0.
Note: The WAVE function will not be accessible until a group has
been assigned to channel 0.
WAVE is only visible on channel 0 but it may be changed back to
GROUP by pressing the WAVE button again. The WAVE button
toggles between WAVE and GROUP.

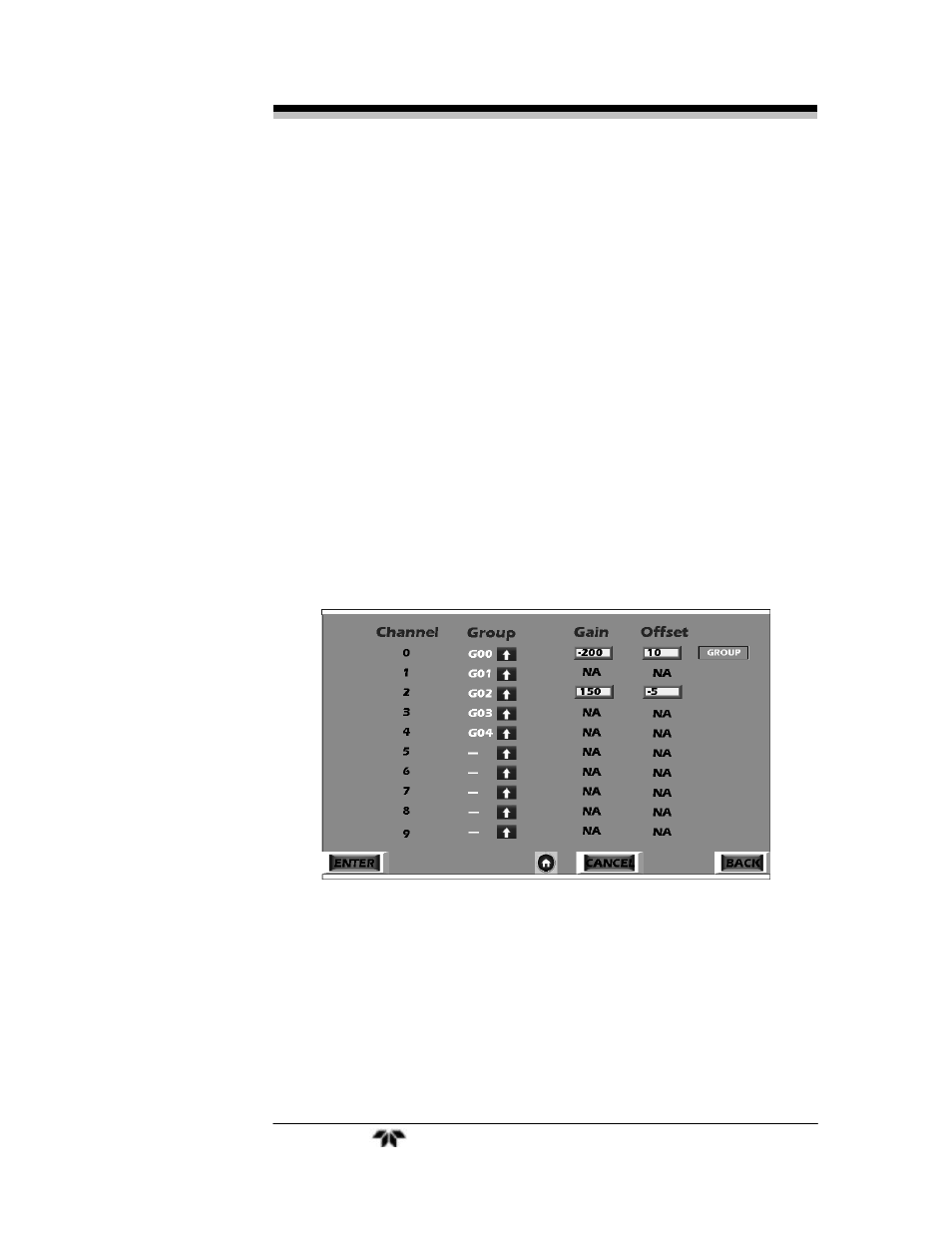

Selecting Analog Adjust from the MAIN screen brings up the
following screen.
Pressing GROUP and assigning a specific group to Channel 0, the
screen changes to:
