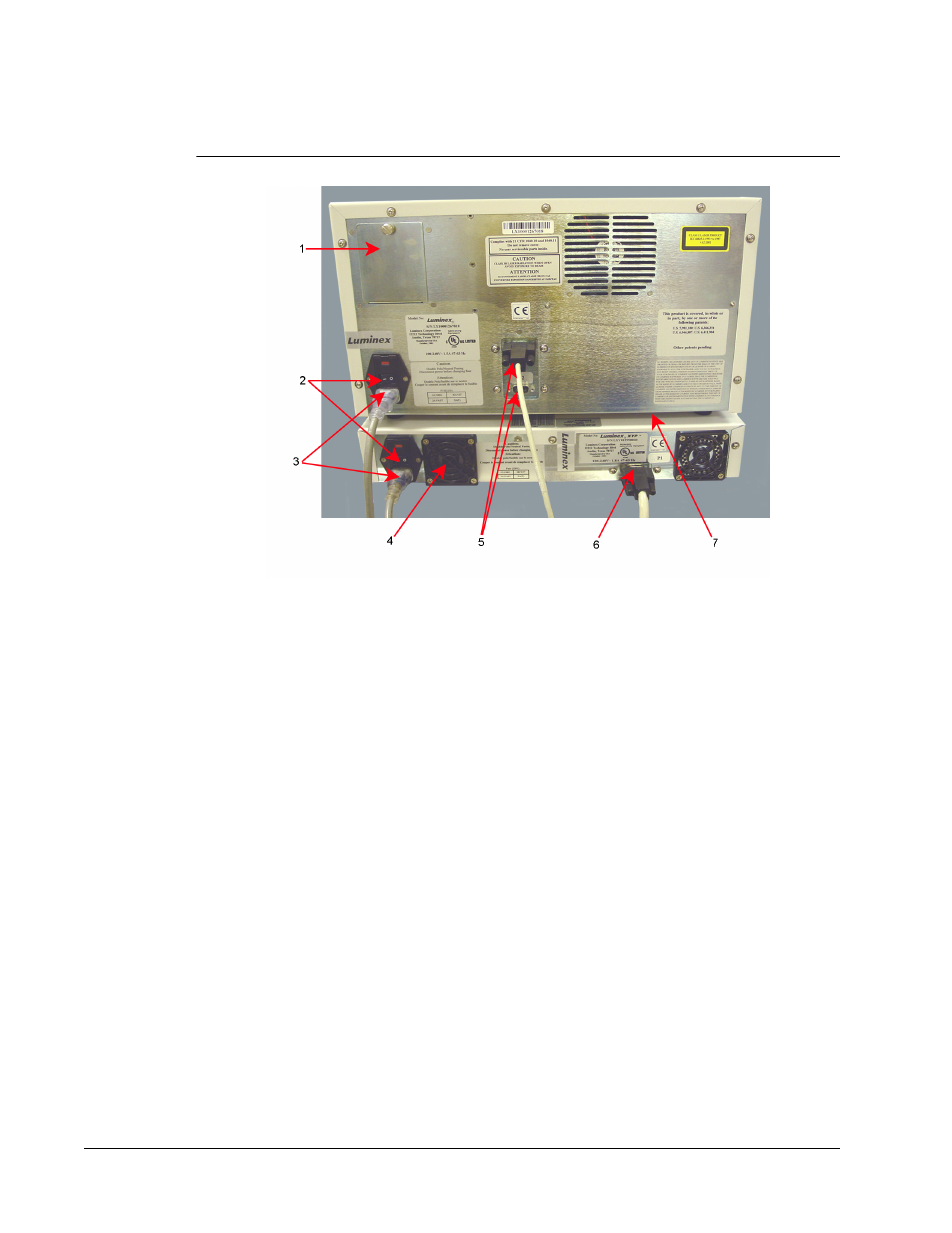

FIGURE 3. Back of the Luminex 200 Analyzer and Luminex XYP
Instrument
1 Air intake filter access door 5 Communication Ports (DB9)
2 Power Switch 6 XYP Communication Port (DB9)
3 Power Input Module 7 Analyzer ventilation filter (on bottom of analyzer)
4 XYP Ventilation Filter
Fluidics
Luminex Instrument Sample Probe
A stainless steel sample probe acquires the sample.
WARNING: During operation, this system contains exposed moving parts
that can result in a puncture hazard. Risk of personal injury is
present. Keep hands and fingers away from the sample probe.
The shield should be in place.
Cheminert ® Fitting
This fitting attaches the sample probe to the sample tubing. Disconnect this fitting when you
remove the sample probe. See the following figure.
Luminex ® 200 ™ System User Manual
16
For In Vitro Diagnostic Use
