2-39 ASUS TS500-E4

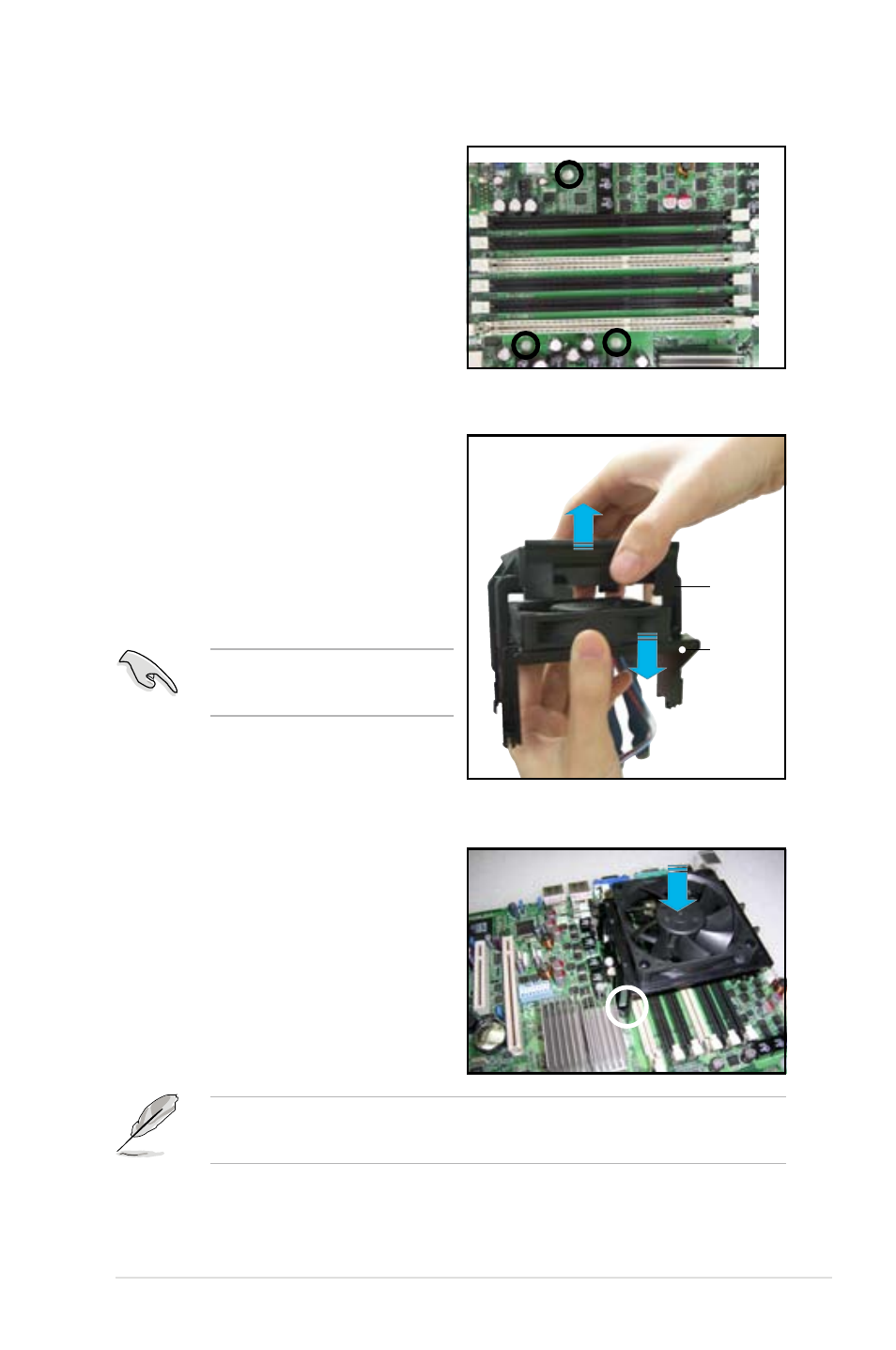

2. Disengage the fan top cover from
the fan base. You can do this
by firmly gripping the top cover
by the clamps to release the
hooks, then pull up the top cover
carefully until it separates from
the fan base.
Do not remove the fan from
the fan base.
3. Position the fan base over the
DIMMs, and insert the fan base
legs into the FB-DIMM holes until
the legs are securely in place.
For instructional purposes only, no FB-DIMM is installed on any of the
slots.
Top cover
hook
Fan base
Top cover
clamp
To reinstall the MemCool FB-DIMM fan kit:
1. Locate the three FB-DIMM fan
holes on the motherboard.
