2-33 ASUS TS500-E4
2.10.2 HDD blower

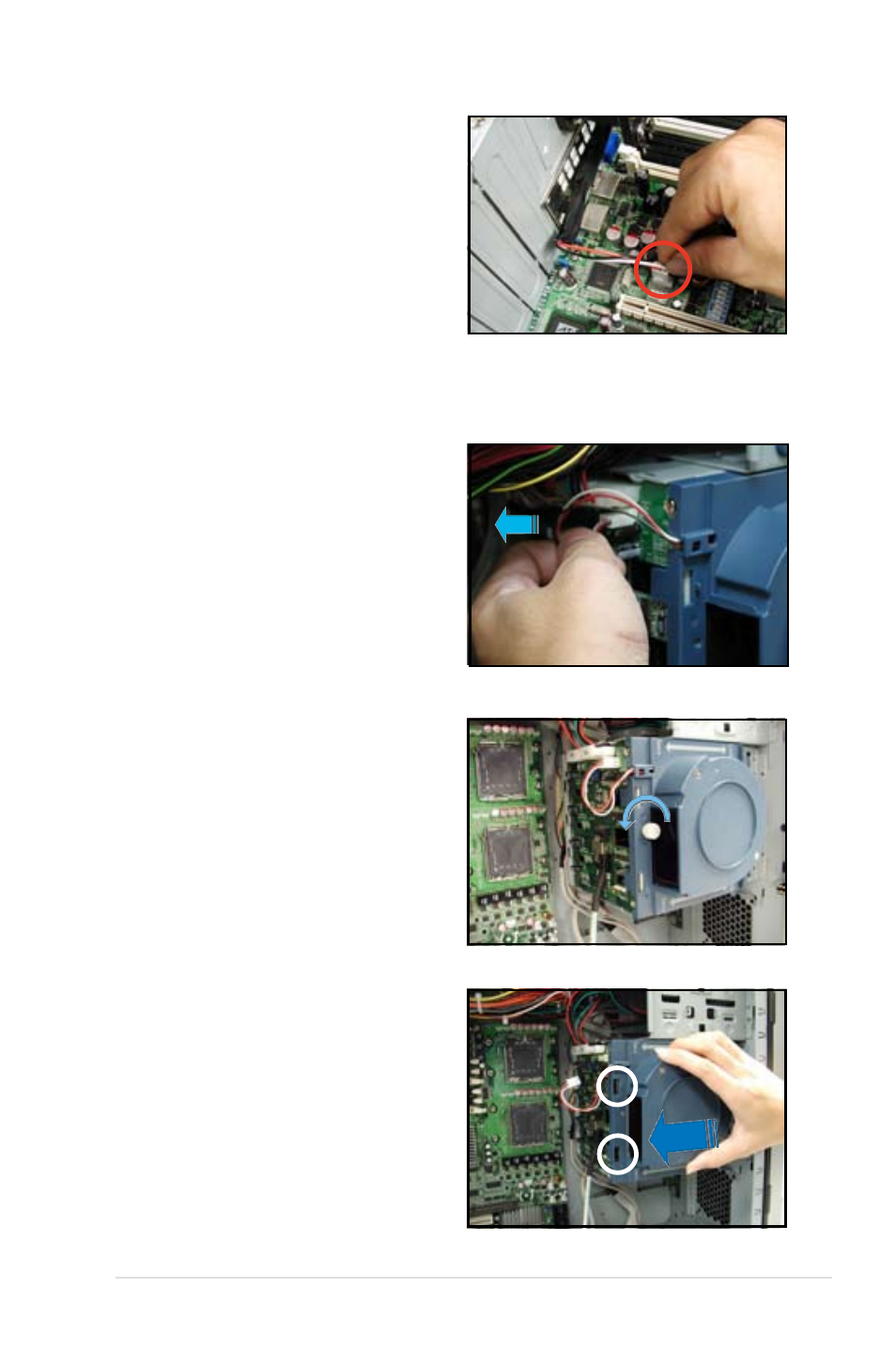

To remove the HDD blower:
1. Remove the side cover. Refer to
section “2.1.1 Removing the side
cover” for instructions.
2. Disconnect the 3-pin fan cable
from the fan connector on the
backplane.
4. Firmly grip the blower case as
shown, then slide it out of the
chassis in the direction of the
arrow until the tabs are released
from the holes of the HDD cage.
3. Loosen the thumb screw that
secures the HDD blower case to
the chassis.
3. Plug the chassis fan cable to the
connector on the motherboard.
