9100-065-Z-3-13

5

Reverse

Loop

Automatic

Exit Loop

Minimizes the potential
of the gate closing
when a vehicle is
present. Number and
placement of loops is
dependent on the
application.

Reverse

Loop

Minimizes the potential
of the gate closing
when a vehicle is
present. Number and
placement of loops is
dependent on the
application.

(Optional) will
provide an open
command to the
gate operator(s)
when a vehicle is
exiting the property.

Warning Sign

Moving Gate Can Cause
Serious Injury or Death

KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.

Moving Gate Can Cause
Serious Injury or Death

KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.

1

1

A

B

C

Closed Gate

Secure Side of Gate

Non-Secure Side of Gate

2

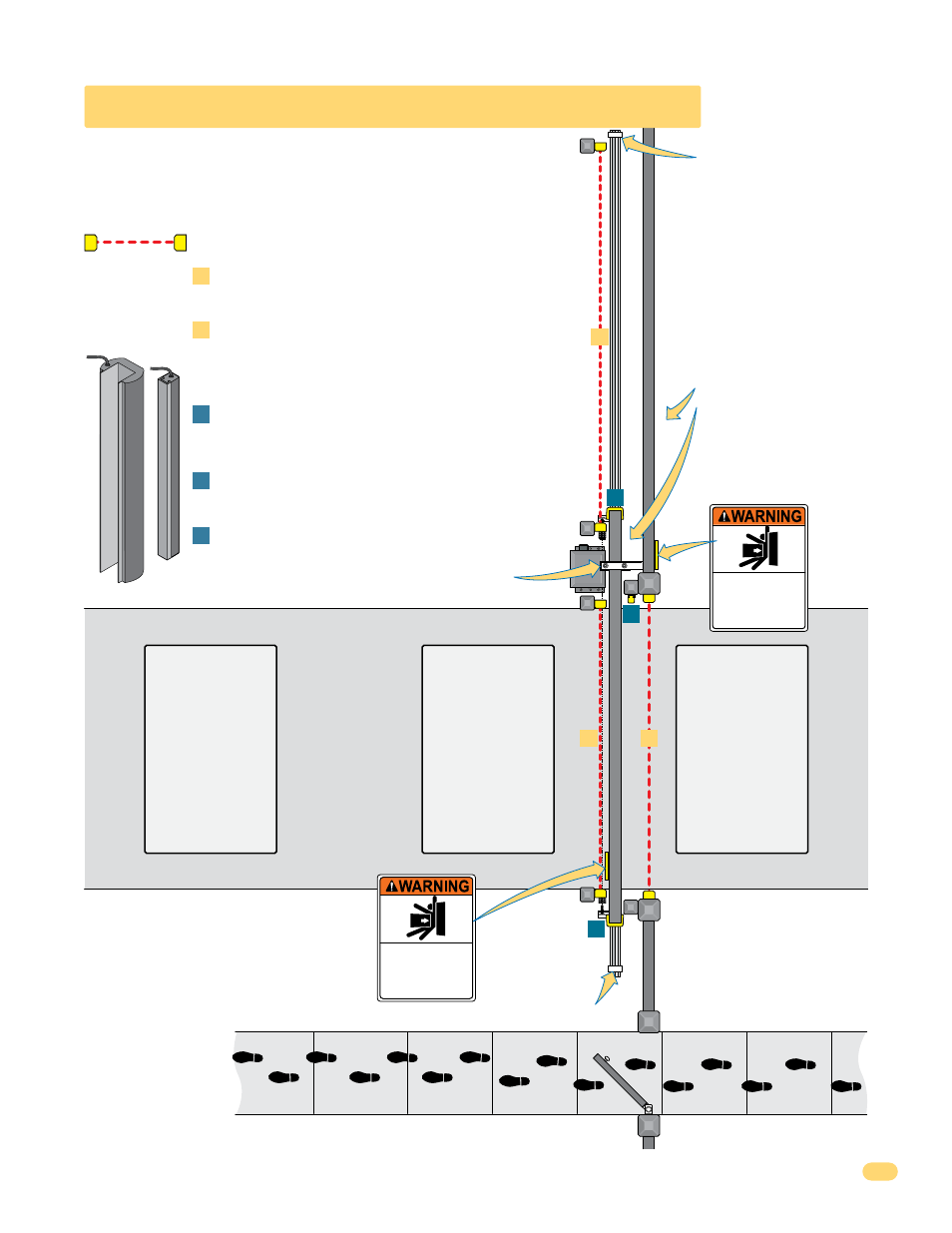

Safety Information for Slide Gate Operators

Physical Stop

Positive stops shall be required
to limit travel to the designed
fully open and fully closed
positions. These stops shall be
installed either at the top of the
gate, or at the bottom of the
gate where such stops shall
horizontally or vertically project
no more than is required to
perform their intended function.

Physical Stops

Permanently mounted and easily

visible from either side of the gate.

Warning Signs

Non-Contact Sensors (Photo Sensors)

1

2

Minimizes the potential of the gate closing on vehicular or
other traffic that loops cannot sense. It can be installed on the
secure OR non-secure side of gate.

Helps minimize the potential of entrapment during the back
travel of the gate.

Entrapment protection devices are required to reduce the risk of injury.
Install sensors where the risk of entrapment or obstruction exists while
gate is moving. Individual requirements will vary. See pages 26-29 for
more information on typical layout locations and setup.

Contact Sensor (Reversing Edges)

A

Minimizes the potential of the gate closing on vehicular
or other traffic that loops cannot sense.

Installed on the fence to help minimize the potential of
entrapment between the gate and fence. A filler post or
barrier MAY need to be installed between fence and gate.

B

C

Helps minimize the potential of entrapment during the
back travel of the gate.

Guide Rollers

See previous page for more information.

Separate

Pedestrian

Walkway

Located so pedestrians
cannot come in contact
with the vehicular gate.

High Risk of Entrapment Area

X X X

X X X X X X X X X

Screened
Wire Mesh

May be necessary on part
of fence AND entire gate.
See previous page for more
information.

Fence

Fence

Illustration not to scale.
