9100-065-Z-3-13

1

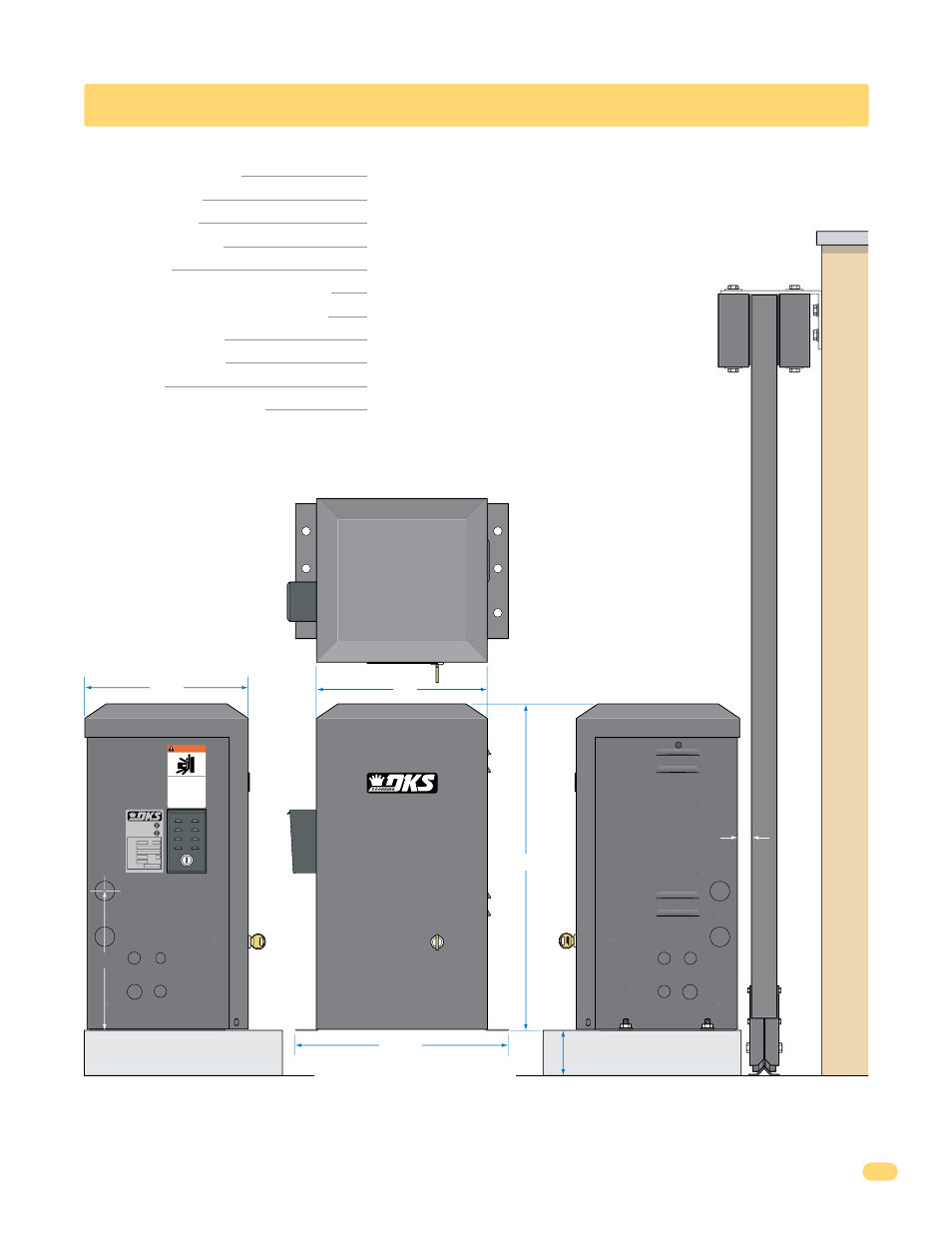

11.5”

12”

14.75”

24”

Gate Frame

1” Minimum

4” Minimum

Class of Operation

UL 325 Class I, II, III, IV

Type of Gate

Vehicular Slide Gates Only

Horsepower 1/2

HP

Voltage / Phase

115 VAC Single-Phase

Current

5.4 Amps @ 120V

Max Gate Weight (Installed level)

1000 Lbs.

Max Gate Length (Installed level)

30 Ft.

Drive Sprocket Size #40

Chain

Cycles Per Hour

60 Per Hour

Speed

Approximately 1 Ft. per Second

Entrapment Protection

Primary - Inherent entrapment sensing system (Type A)

Secondary - Provision for connection of a non-contact

sensor (Type B1) and/or a contact sensor

(Type

B2).

SPECIFICATIONS

WARNING

MOVING GATE CAN CAUSE

Operate gate only when gate area is in sight
and free of people and obstructions.

Do not allow children to play in gate area
or operate gate.

Do not stand in gate path or walk through
path while gate is moving.

Read owner’s manual and safety instructions.

SERIOUS INJURY OR DEATH

CLASS

CERTIFIED TO

CAN/CSA C22.2 NO. 247

CONFORMS TO

ANSI/UL-325

VEHICULAR GATE OPERATOR

HP

53382

MODEL

SERIAL

VOLTS

PHASE

AMPS

60 Hz

MAX GATE LOAD

DoorKing, Inc., Inglewood, CA

10.5”

Chain Height:
Idler wheels in
top position.

Use this manual for the Model 9100
operator with circuit board 4602-010
Rev A or higher ONLY.

Concrete

Pad

Concrete
Pad

DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
