Aastra IP Phone Model 536M and 560M Expansion Modules
A-60 41-001134-05, Rev 00, Rel. 1.1
AastraLink Pro 160 IP Phone User Guide
Connecting the Expansion Modules to Your Phone
Use the following procedure to connect the 536M or the 560M to your IP phone.
1. Turn your phone over to show the bottom of the phone.
2. Turn the expansion module over to show the bottom of the module.

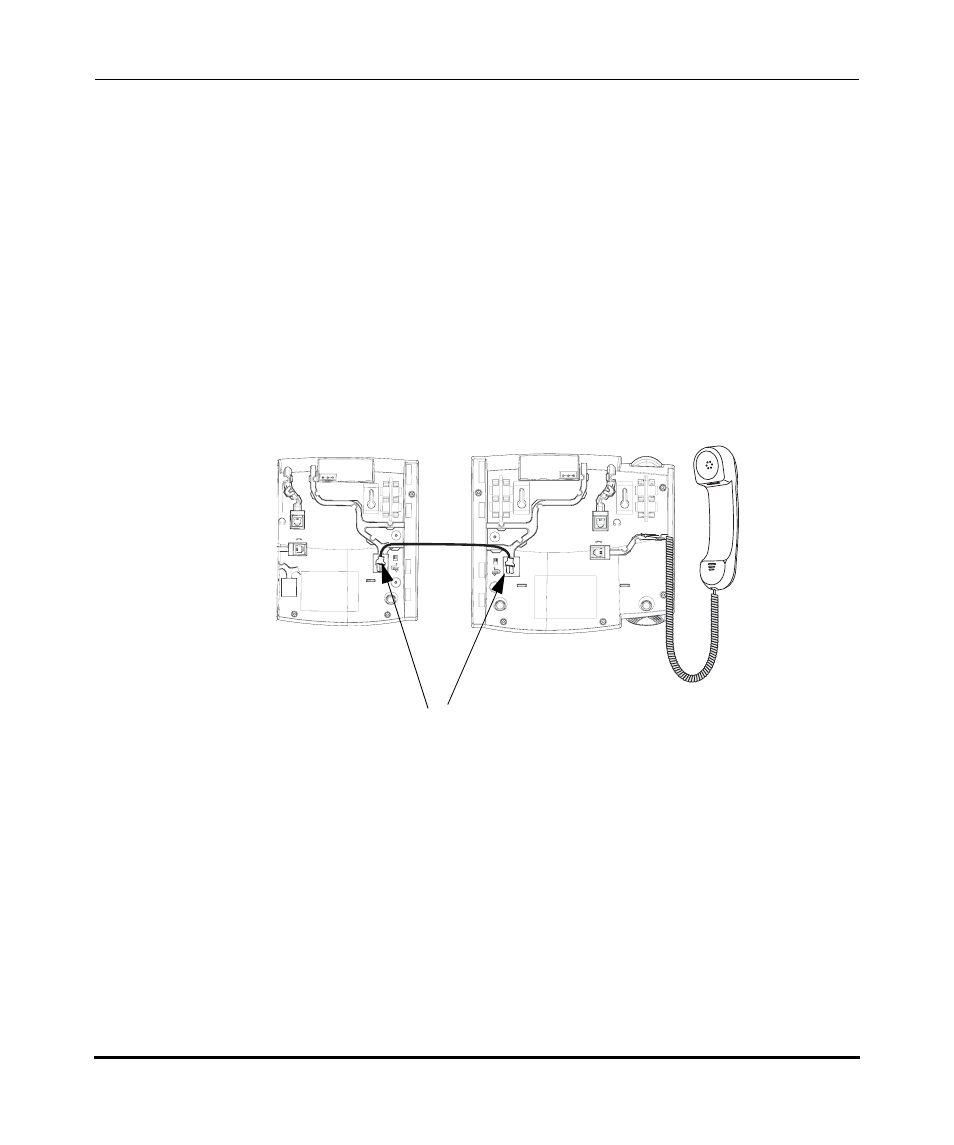

3. Connect one end of the RJ-45 cable to the RJ-45 port on the back of your
phone as indicated in the illustration below.
4. Connect the other end of the RJ-45 cable to the RJ-45 port on the back of the
expansion module as indicated in the illustration above.
5. Turn over both units to sit face up on the desk with the expansion module
sitting flush against the right side of the phone.
Back of Expansion
Module Back of Phone
RJ-45 Connectors
