Step 1 - assemble the plow blade – Kolpin 10-0520 X-Factor Plow User Manual
Page 9
9
© 2011 Kolpin Outdoors Inc.

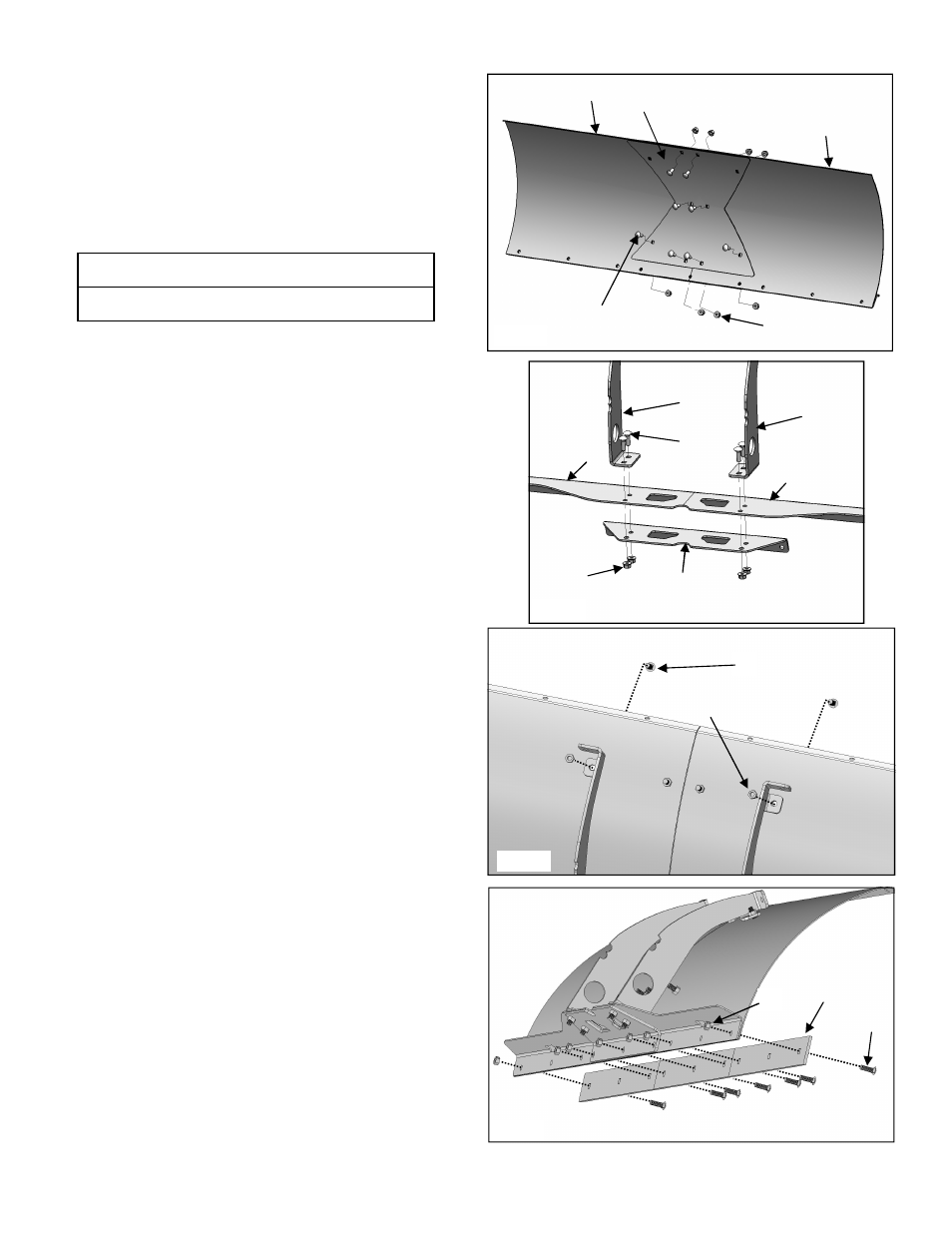

STEP 1 - ASSEMBLE THE PLOW
BLADE:
1. Assemble the left and right blades, Items #32 and
#33, to the ‘X’ Plate, Item #35 as shown in Illustration
7. Fasten with carriage bolts, Item #39 and locknuts,
Item #37. Do not torque the fasteners at this time.
2. Assemble blade angles, Items #27, #28 and #29, to
the left and right support ribs, Items #30 and #31,
using fasteners, Item #38 and #37, as shown in
Illustration 8 to create the plow frame. Do not torque
the fasteners at this time.
3. Attach the assembled plow frame upper supports to
the blade using fasteners, Items #38 and #37. See
Illustration 9. Do not torque the fasteners at this time.
4. Assemble the blade, plow frame bottom support and
Wear Bars, Item #34 (x3) using fasteners, Items #38
and #37 as shown in Illustration 10. Do not torque the
fasteners at this time.
ILL. 7
ILL. 9
38
37
ILL. 10
37
34
38
x
x
x
x
ILL. 8
33
39
35
32
37
ILL. 7
27
38
28
29
37
31
30
ILL. 8
NOTE
Pay Attention to bolt lengths when assembling
