OPTION B - GENERIC MOUNT INSTALLATION FOR SQUARE TUBE FRAME ATVs

1. Position the Back Plate, Item #2, on top of the frame tubes at the “Y” location as shown in Illustration 11.

2. Position the Forward Mount Weldment, Item #1, under the frame tubes at the “Y” location as shown in Illustration 11.

3. Position the Back Plate, Item #2, on top of the frame tubes at the “Y” location as shown in Illustration 12.

4. Place spacers, Item #7, between the mount and back plate. Loosely fasten the mount and back plate using bolts, washers and

locknuts, Items #3, #5 and #6. Do not torque fasteners at this time.

5. Position the mount and fasteners at a point on the frame that allows the push tube to be attached, but will not interfere with

operation of the ATV.

6. Once the mount position has been determined, push the spacers and fasteners to the frame tube walls as close as possible.

Torque to specification. REFER TO INSTALLATION NOTES - PAGE 5.

FASTENER TORQUE:

30 ft. lbs. (41 Nm)

NOTICE

Depending on application, some trimming

of plastic guards or panels may be required.

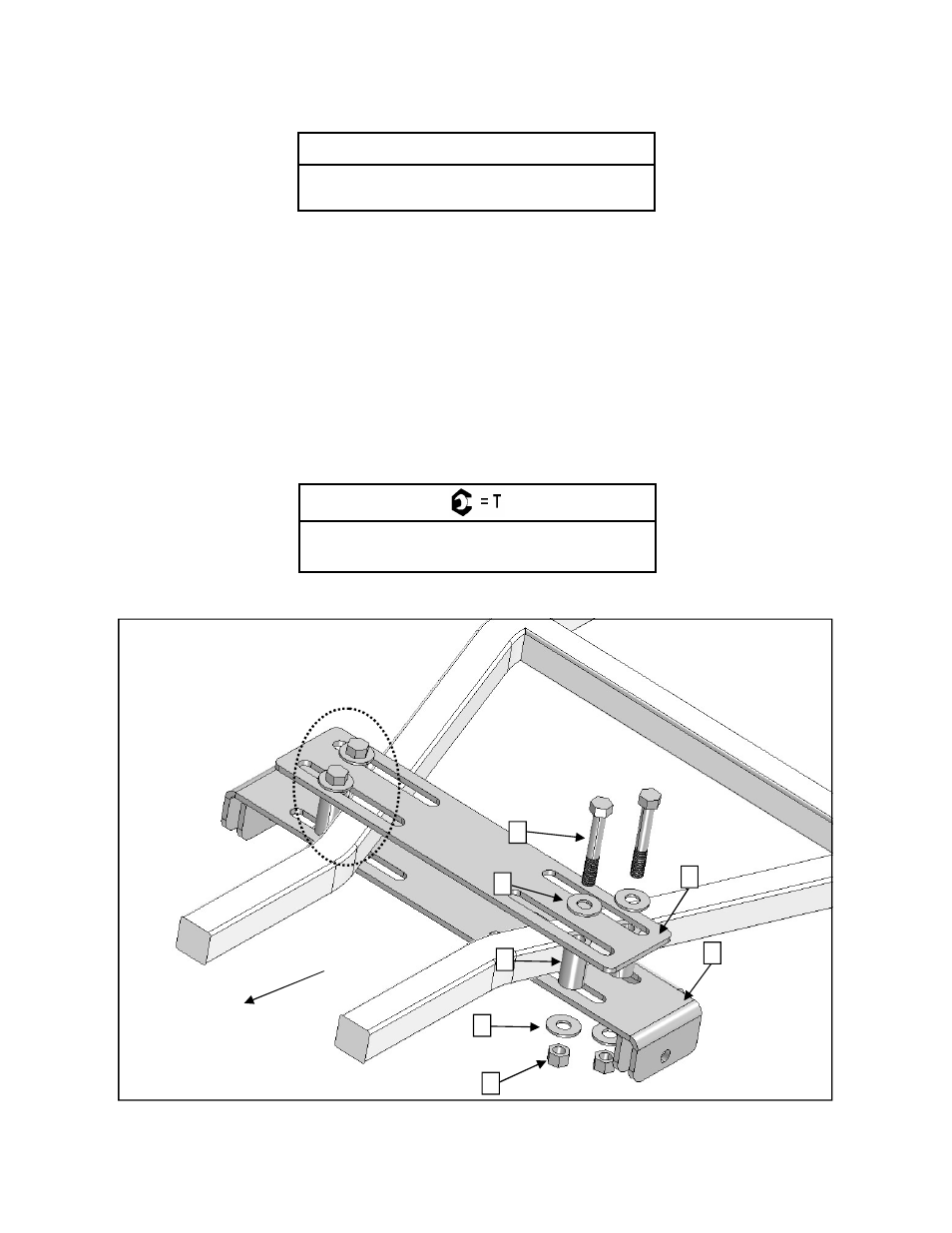

ILL. 2

ATV FRONT
