OPERATING INSTRUCTIONS
Congratulations! You’ve just purchased one of the industry’s top plow systems. The X-FACTOR ™ Plow System works great for all
types of plowing. With proper care and maintenance, your plow system will last for many years!
The X-FACTOR ™ Plow system is easily assembled and attaches to your ATV using a patented, unique Forward Mount ™ system. It is
designed to fit most models with 200cc or larger engines. The blade pivot design allows the operator to select multiple angled left-or-
right positions, and also incorporates a spring-loaded ’trip’ system that allows the blade to handle impacts with small obstructions.
The patented
52” (132 cm) Blade Assembly allows for quality snow moving capacity and snow roll-over characteristics. Additionally,
this system will handle light to medium-duty summer landscape work.

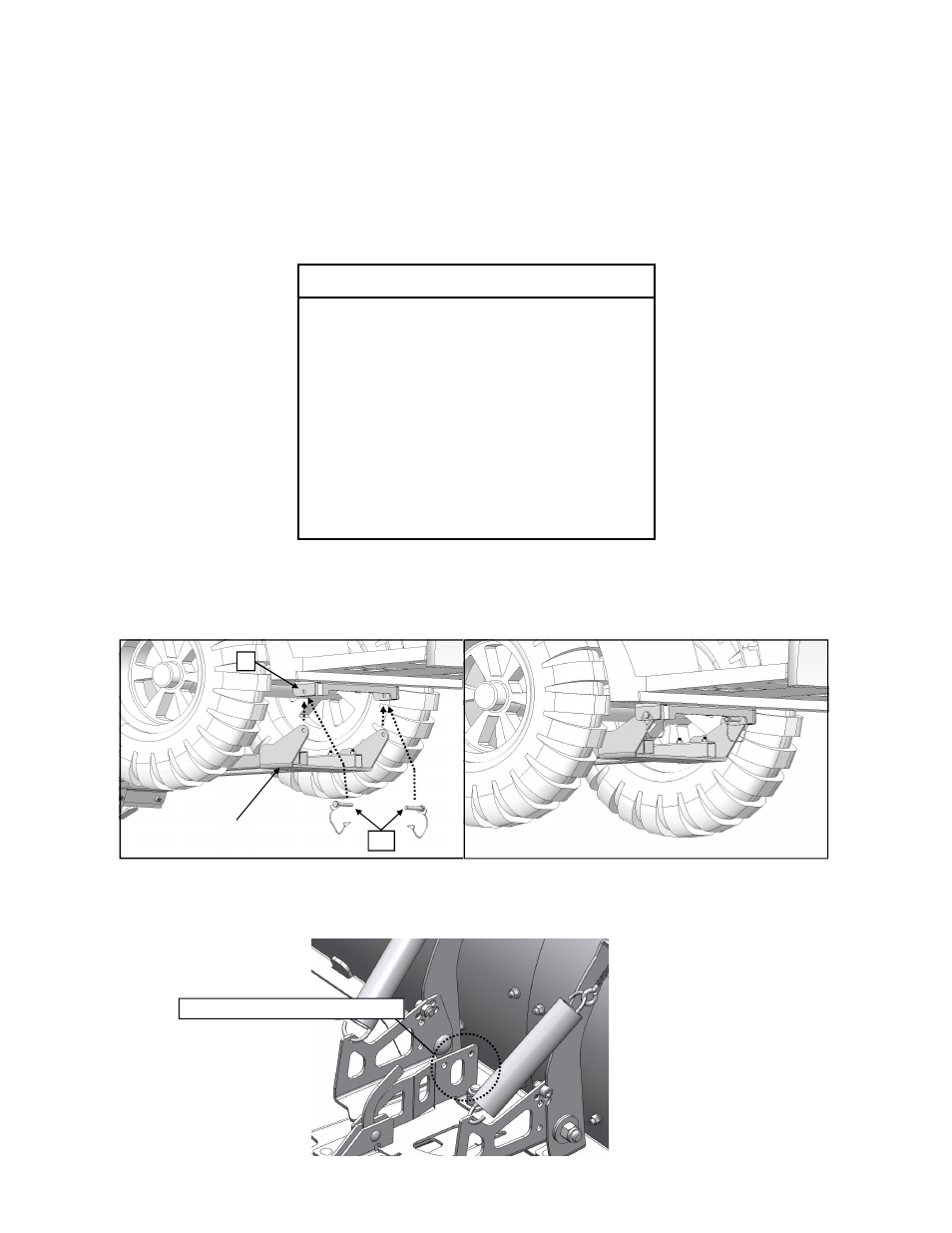

PUSH TUBE ENGAGEMENT: Place push tube under the ATV as shown and insert into the left and right channels of the assembled
Forward Mount Weldment, Item #1. Fasten the push tube to the mount with supplied lock pins, Item #13.
ATTACH LIFTING HOOK OR ELECTRIC LIFT: Attach the lifting hook from a winch or manual lift kit to the push tube as shown. If
using an electric lift kit, install the electric lift at the hole locations shown.
NOTICE
The X-FACTOR Complete Plow System
includes these components:
• 52” (132 cm) X-FACTOR Blade
and Blade Hinge Pivot Assembly
• Forward Mount ™ Push Tube
• Universal Forward Mount ™ System
Plow operation requires an
additional component for operation:
Winch Kit, Electric Lift or Manual Lift *
*These components may be specific to your vehicle.
Push Tube
13
1
Install lift hook or kit at this location only
