Kolpin 10-0520 X-Factor Plow User Manual
Page 12
12
© 2011 Kolpin Outdoors Inc.

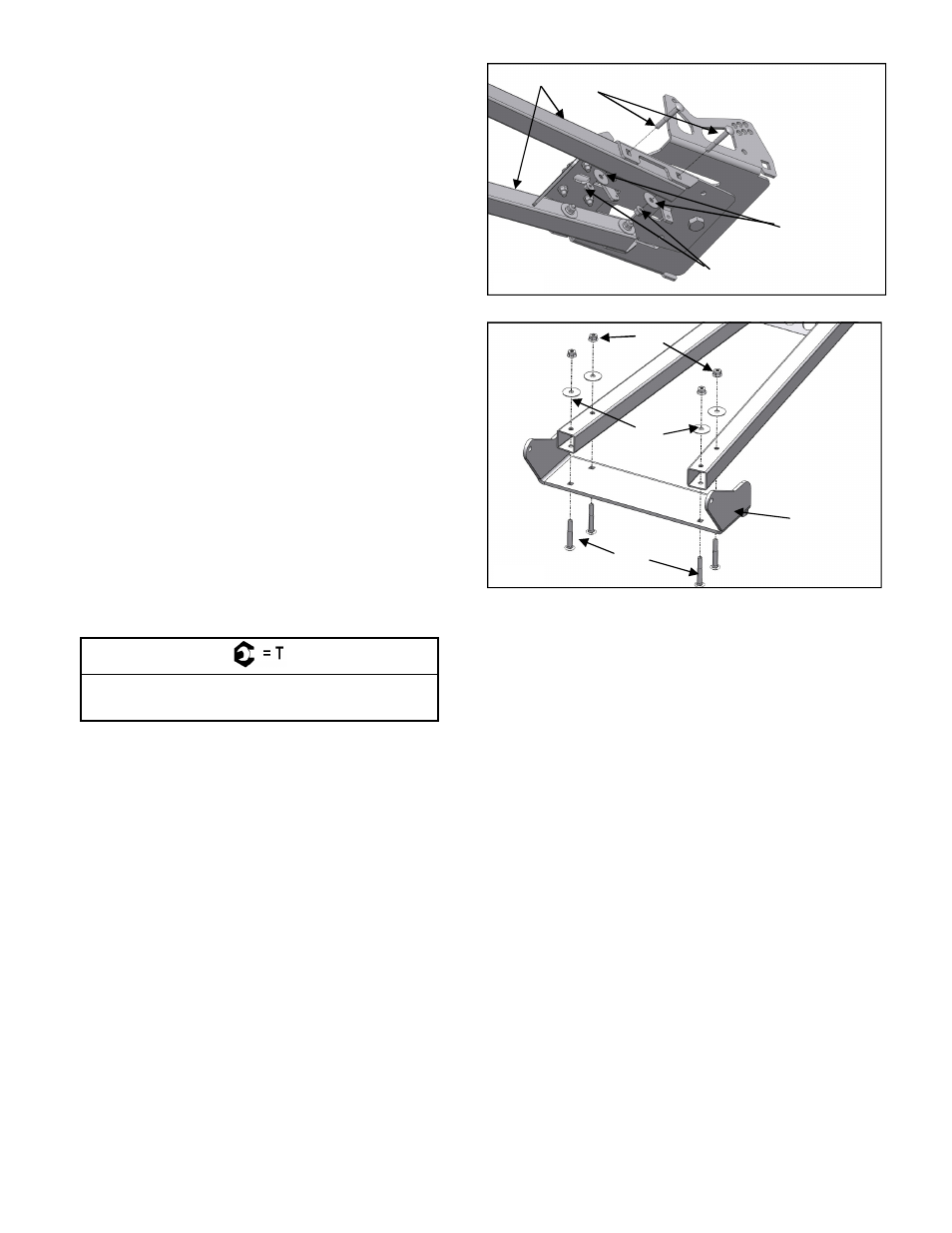

2. Install the left and right Tubes, Item #3 onto the
assembled mount plate. Fasten with Carriage Bolts,
Item #1, Washers, Item # 13 and Locknuts, Item #12.
Do not tighten fasteners at this time.
3. Install the attaching plate, Item #2 on the push tubes.
Fasten with Carriage Bolts, Item #11, Washers, Item
# 13 and Locknuts, Item #12.
4. Tighten all fasteners to specification.
Item #11 - FASTENER TORQUE:
17ft. lbs. (23 Nm)
ILL. 5
3
11
12
13
ILL. 6
12
11
2
13
