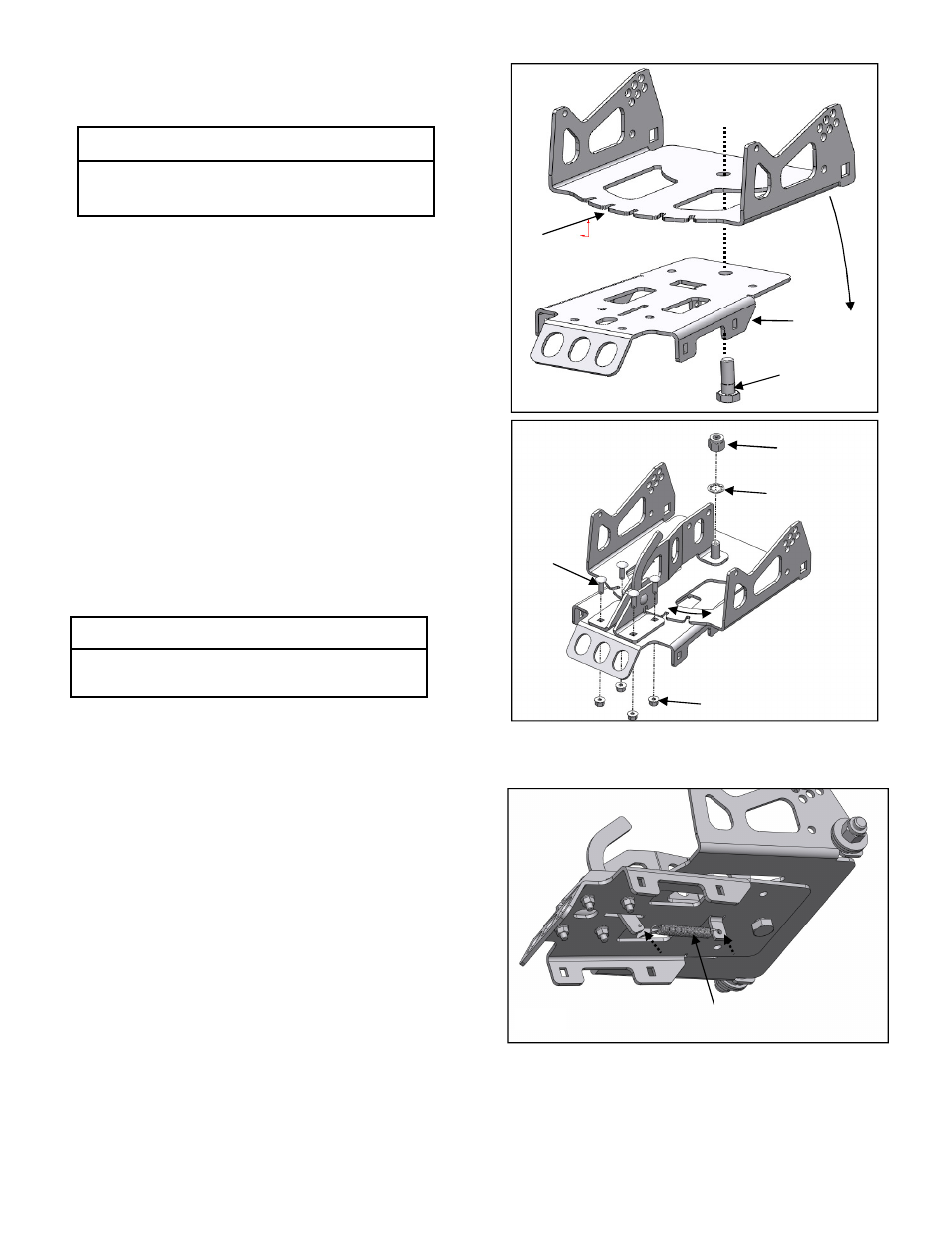

2. Assemble bolt, Item #21, and Hinge Bracket, Item #4
onto Mount Plate, Item #1, as shown in Illustration 2.
3. Place the assembled lever and brackets, onto the
mount plate and hinge plate as shown in Illustration
3. Install Washer, Item 22 and fasten with locknut,
Item #15 See NOTICE.
4. Fasten the lever brackets to the mount plate with
carriage bolts, Item #20 and locknuts, Item #12. Do
not tighten fasteners at this time.
5. Install the Lever Spring, Item #18. See Illustration 4.
ILL. 4
18
NOTICE
Item #21 - Tighten lock nut, then back out 1/4-1/2
turn to allow hinge plate, Item #4 to pivot freely
4
21
1
ILL. 2
22
ILL. 3
20
15
Blade Hinge Must
Pivot Freely
12
22
NOTE
Light Grease such as wheel bearing grease may be
used between plates to prolong life of moving parts
