Kolpin 30005 – Bow Boot Bracket - Manual

Rev. 3
Kolpin Outdoors, 205 N. Depot Street, Fox Lake, WI 53933 Phone #: (877) 9KOLPIN or (920) 928-3118
www.kolpin.com [email protected]

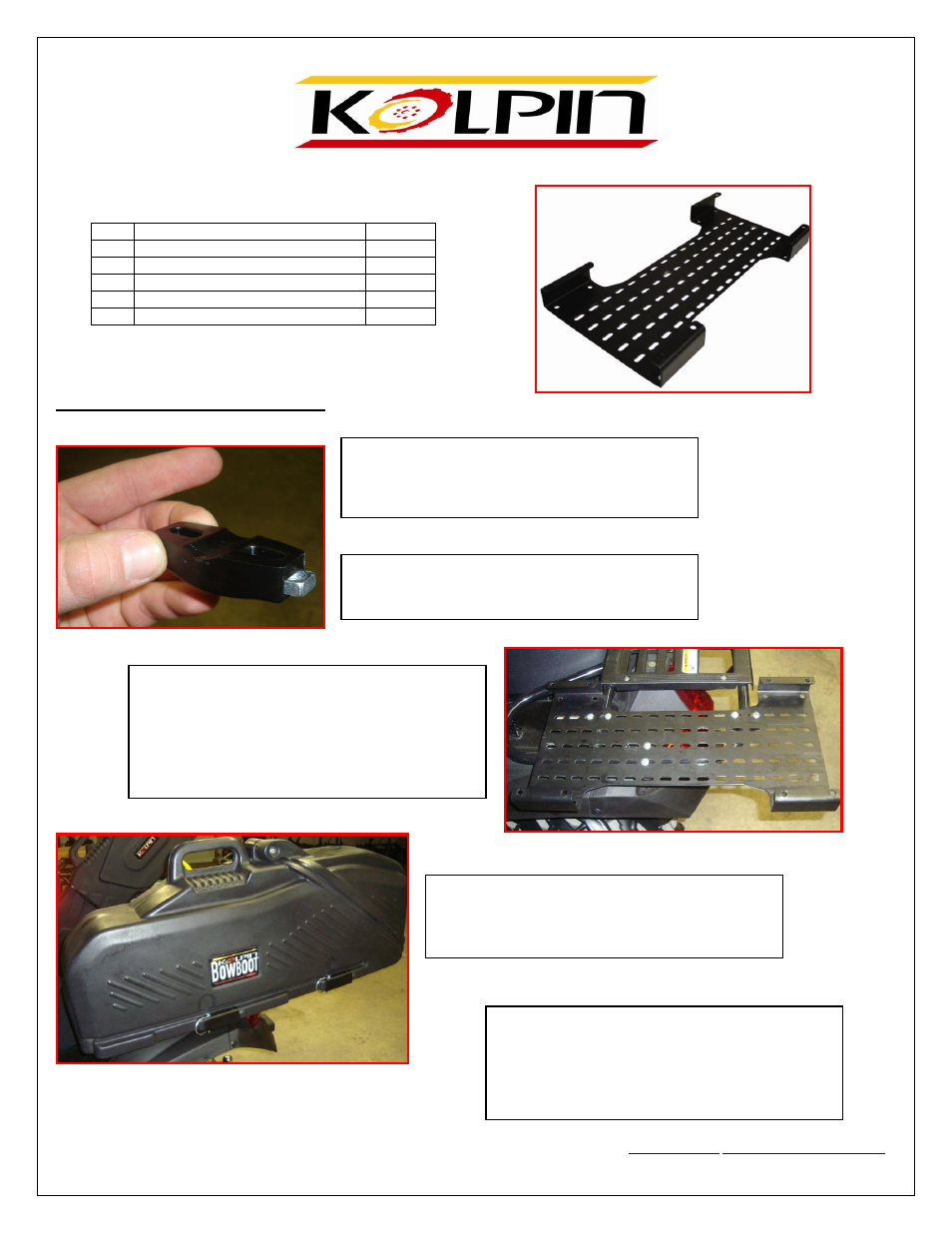

30005 – Bow Boot Bracket
ATV Bracket Assembly Instructions:
NO. Description QTY.
1 Bow Boot Bracket 1
2 5/16” x 2.25” Lock Pin 4
3 Plastic Cross Brace 4
4 ¼”-20 Square Nut 8
5 ¼”-20 x 1.75” Truss Head Bolt 8
2. Utilizing the Plastic Cross Braces simply slide
the square nut into the brace as shown. Place the
cross brace under the rack of the ATV.
1. Keeping safety in mind, find a location to attach
the Bow Boot Bracket on either the front or rear
rack of your ATV. Be sure to not block your field of
view.
3. Insert the ¼” Truss head bolts through the bow
boot bracket and into the square nuts located in
the cross brace. Tighten securely, making sure
not to over tighten as this could lead to a failure in
the cross brace. Make sure that you utilize a
minimum of 3 cross braces for attaching the bow
boot bracket to the ATV as shown below.
4. Now, slide the bow boot into the bracket. Using
the (4) lock pins provided, secure the bow boot to
the bracket. Bow Boot is designed to fit snug into
the bracket.
NOTE: TO ATTACH TO UTV, SIMPLY DRILL
HOLES IN THE BOTTOM OF THE BOOT AND
BOLT DIRECTLY TO THE RAIL OF THE DUMP
BED. IN SOME CASES YOU MAY BE ABLE TO
USE EXISTING LOCATIONS ON CERTAIN
MACHINES.
