English 98
Software menu system
Operation
All functions of the device are software-controlled. The
operation ismenu-guided via four function- and four graphic keys.
The keys are on the right next to the
graphic display.
Call up menu overview
If you press one of the four function keys F1–F4 for 3 seconds, the
display switches from the measurement operation display to the
menu overview. All menus with a + sign have menu items or
submenus.
Select menu
The inverse selection bar indicates the menu that can be selected with
F2.
With the arrow keys F3 and F4, these selection bars
can be moved.
F1 always goes one level back up to the measurement operation
display.
Change device settings
Within the menu (here in the example the [+SETTINGS] menu), there
are individual menu items (here: [Δ CONTRAST]), whose settings can
be respectively changed via key F2.
The possible settings can then be called up one after the other via F3
“+” and F4 “–”. F2 “OK” applies the new setting. F1 “CANCEL” keeps
the old setting.

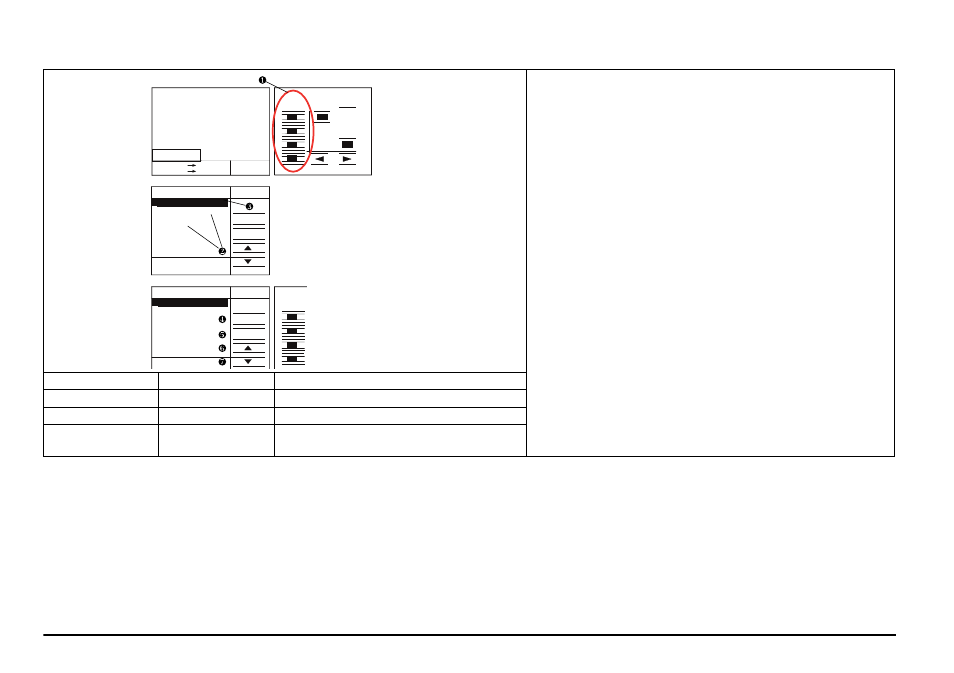

1 Function keys 2 Menu overview F1 Returns to the measurement operation
3 Selection bar 4 Menu F2 Calls up the selected menu
5 Settings 6 Up arrow key F3 Moves the current selection up
7 Down arrow key F4 Moves the current selection down
