Commissioning
Fluid Components Intl
Document 06EN003327 Rev. - 59 FlexCOR
™
Model CMF Series
Digital output

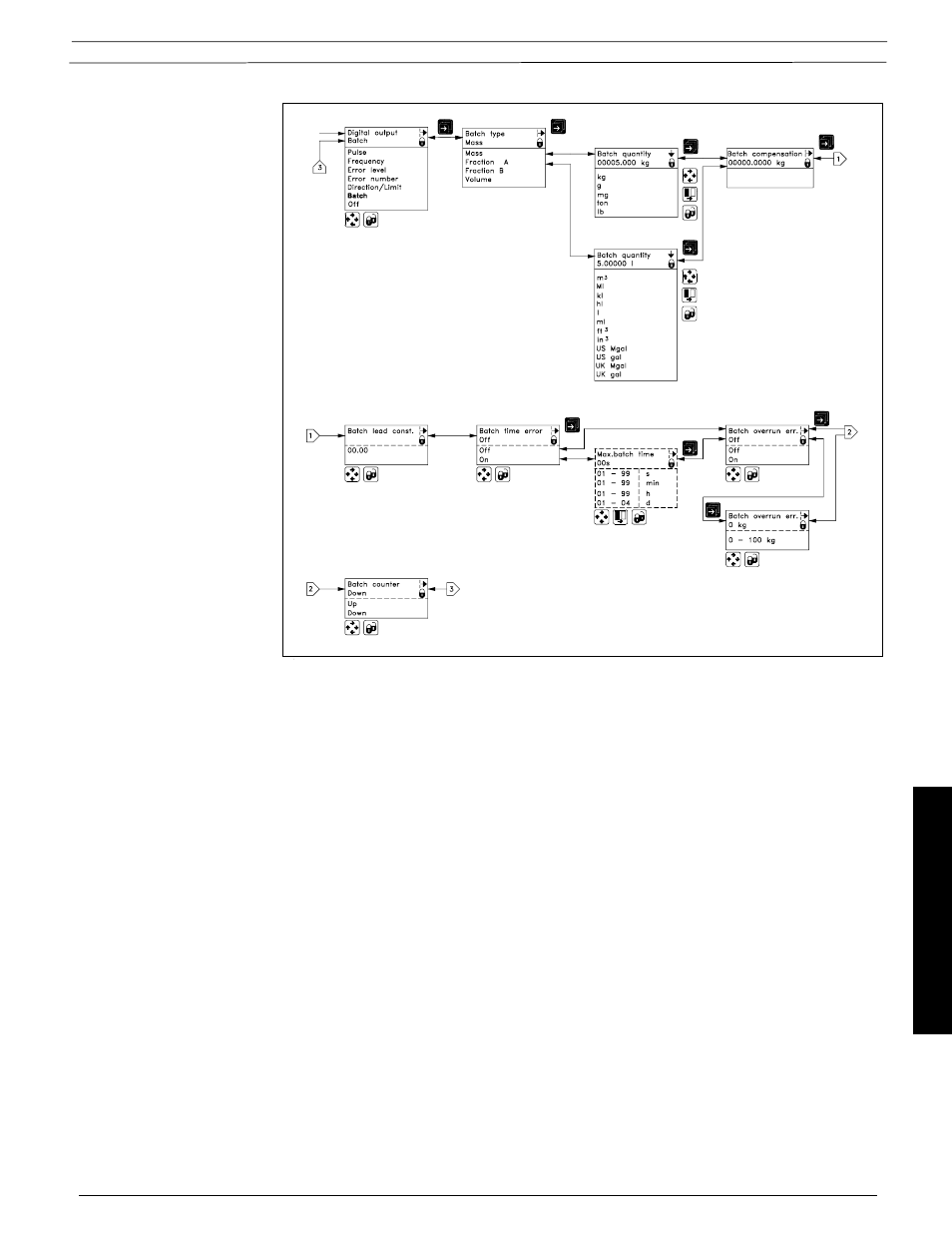

Batch menu
Menu detail
Batch menu
Batching can be set to mass or volume. The desired quantity is called the batch quantity.
Batch compensation allows addition/subtraction of a fixed quantity in order to compensate for
valve delays, etc.
Compensation to be carried out dynamically, i.e. independently of the flow rate in the system, the
transmitter can calculate the system’s time constant – this is known as the lead const.
Batch time error is used to monitor that a batch is executed within the specified period, which is
set by max. batch time. If the batch is not completed within the time set an error message will output
by the Errorlog/pending.
Batch overrun error monitors that the quantity passing through the valve when it is closed does
not exceed the quantity set. This function can detect irregular valve function due to blockage, failure
to close due to wear, etc. The error is notified by the errorlog/pending function.
Batch counter is used to set the batch display. If up is selected the display counts from 0 up to
the selected batch quantity. If down is selected it counts down from batch quantity to 0 for each
batch. The operator can follow the progress when running in a batch application.
Batch
Menu description
