Commissioning
FlexCOR
™
Model CMF Series 66
Fluid Components Intl
Document 06EN003327 Rev. -
Menu setup

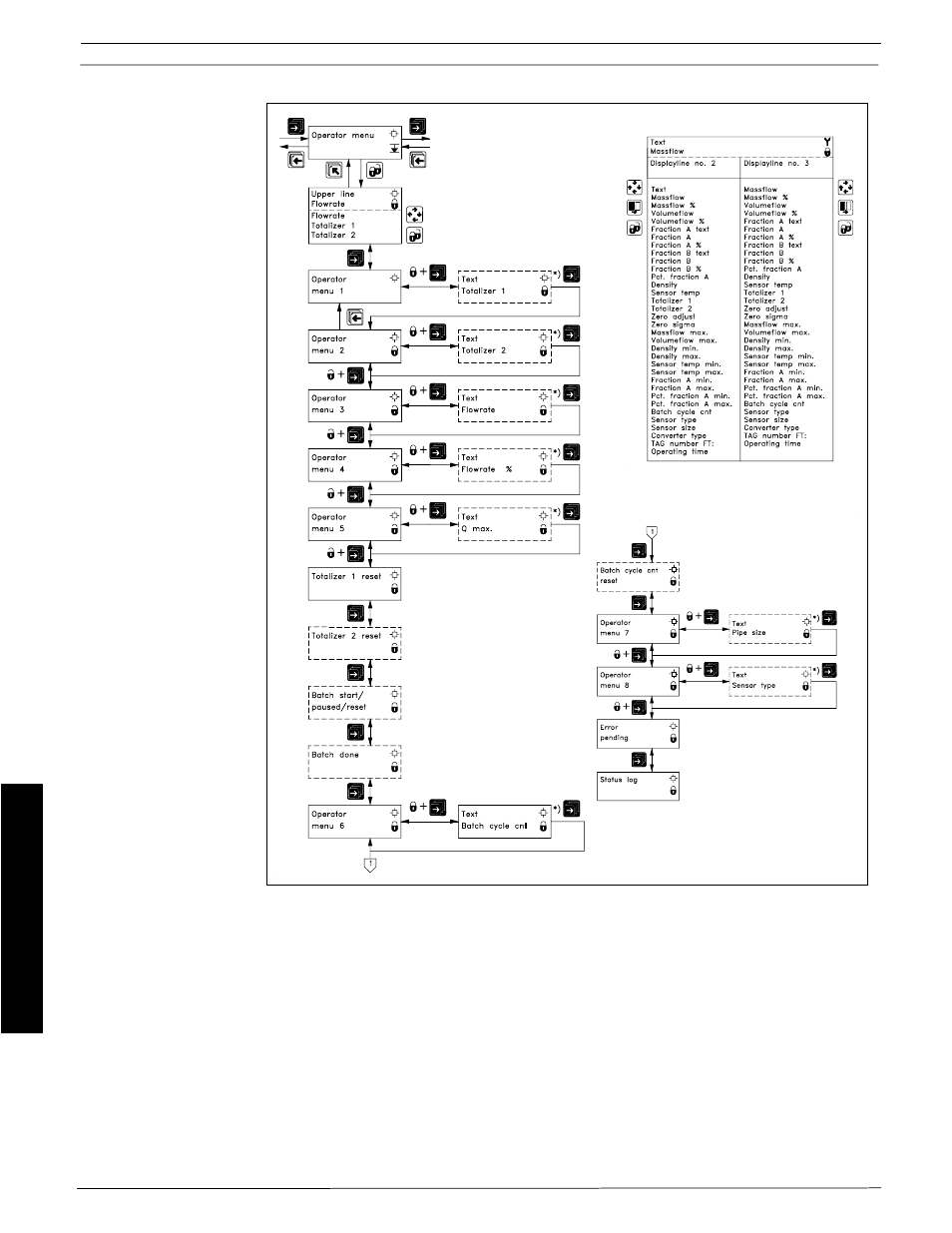

7.5.7 Operator menu
setup
The upper line is always active and can never be deselected.
The two lower lines are for individual operator information. The forward key is used by the operator
to scroll through information.
- A closed lock key in the operator menu setup, means that the menu is enabled when viewing
the operator menu.
- A open lock key symbol, means that the menu is not available in the operator menu.
The middle line can either be used as a heading “Text line” for the lower line, or as a value reading.
A flow reading can be individually selected for each menu.
The lower line may be used for an additional flow reading to the reading already available in the
upper line.
