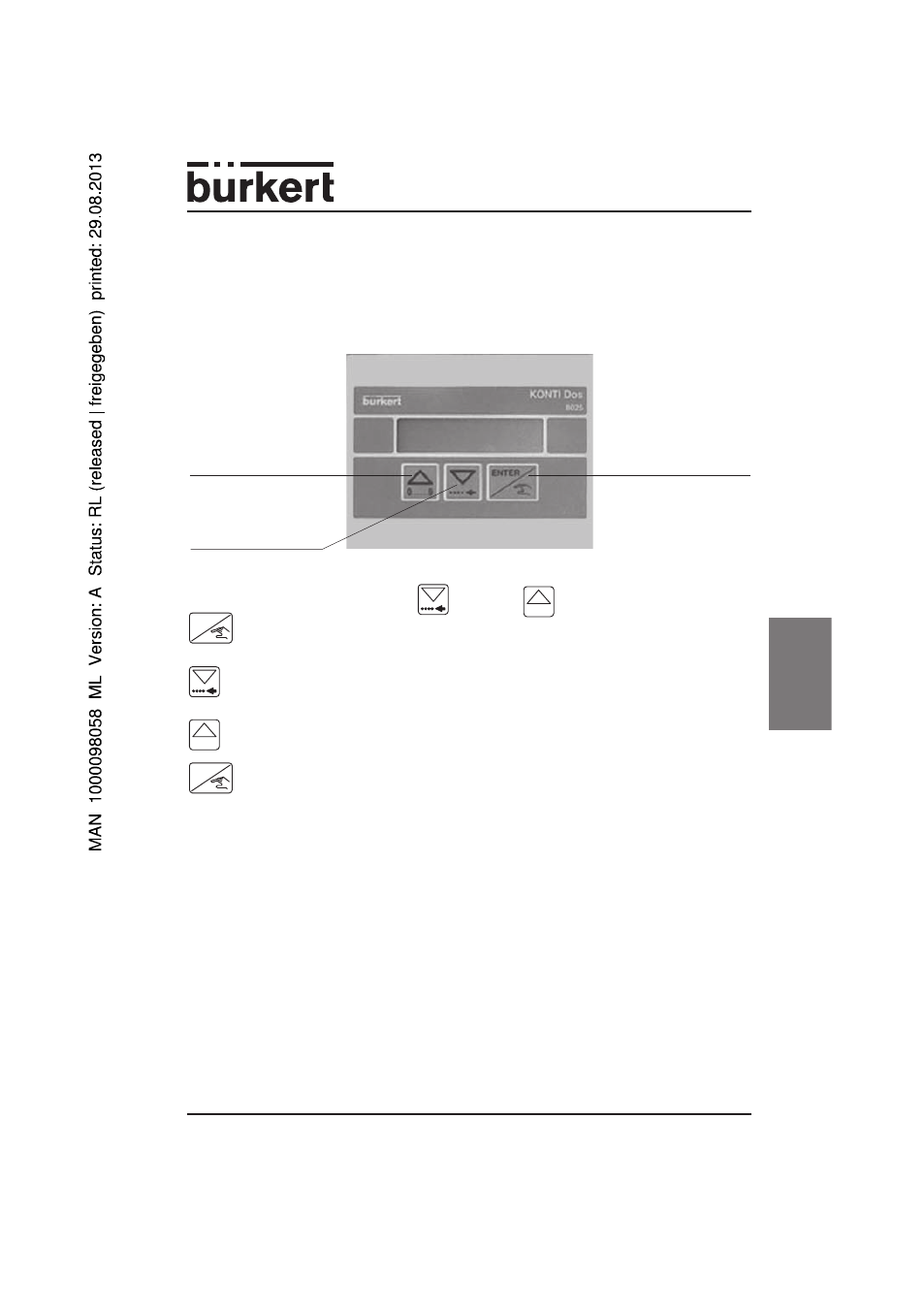

2.4 Presentation of the display and the functions of the konti-Dos
control unit
The konti-Dos control unit is equipped with a display and 3 programming keys. The display is
used to indicate the system functions and parameters. These parameters can be modified easily.
The 3 programming keys are used to navigate though the menus.
Select the required function using the (next) and
0......9
(back) keys.
ENTER
is used to confirm the choice displayed (the active parameter flashes).
An activated parameter can be modified using the 2nd function of the following keys:
selection of the figure to modify.
0......9
modification of the value (0 to 9)
ENTER
is used to save the value entered in the control unit.
Selection of the menu
or incrementation of
the value displayed
Selection of the menu or
the figure to be modified
Confirmation of the pa-
rameters entered and the
options chosen
