Burkert Type 8640 User Manual
Page 32

32
Installation
7.2. Fluidische Deinstallation
HINWEIS!
Irreversible Beschädigung der Dichtung im Gewinde der
Verschraubung!
• Beim Lösen der Anschlussadapter das Verdrehen des ent-
sprechenden Versorgungs- oder Entlüftungsanschlusses mit
geeignetem Werkzeug verhindern.
7.3. Elektrische Installation
GEFAHR!
Verletzungsgefahr durch Stromschlag!
• Vor Eingriffen in das Gerät oder die Anlage
Spannung abschalten
und vor Wiedereinschalten sichern!

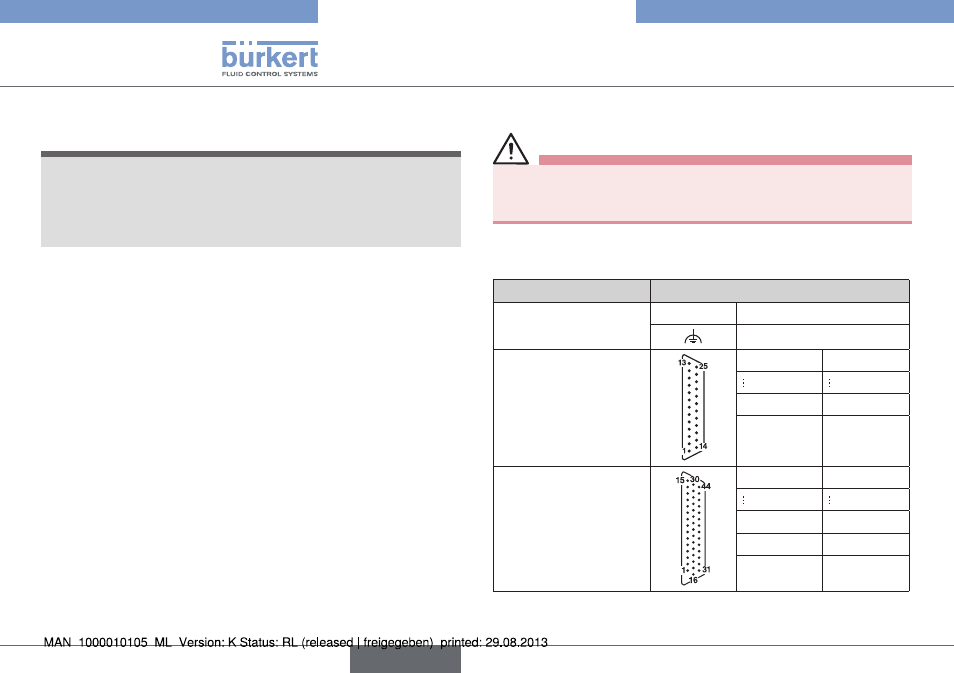

7.3.1. Konventionelle Anschlusstechnik
(Multipol und Sammelanschluss)
Modul
Belegung
Sammelanschluss
–
Ground
Funktionserde
Multipolanschaltung
Ventilausgänge
Pin 1
Ventil 1
Pin 24
1)
Ventil 24
Pin 25
Ground
Multipolanschaltung
mit Rückmelder-
eingängen
Pin 1
Eingang 1
Pin 32
Eingang 32
Pin 43
24 V
Pin 44
Ground
1)
Bei Handautomatik ist Pin 24 konstant mit 24 V belegt.
Typ 8640
deutsch
