Installation

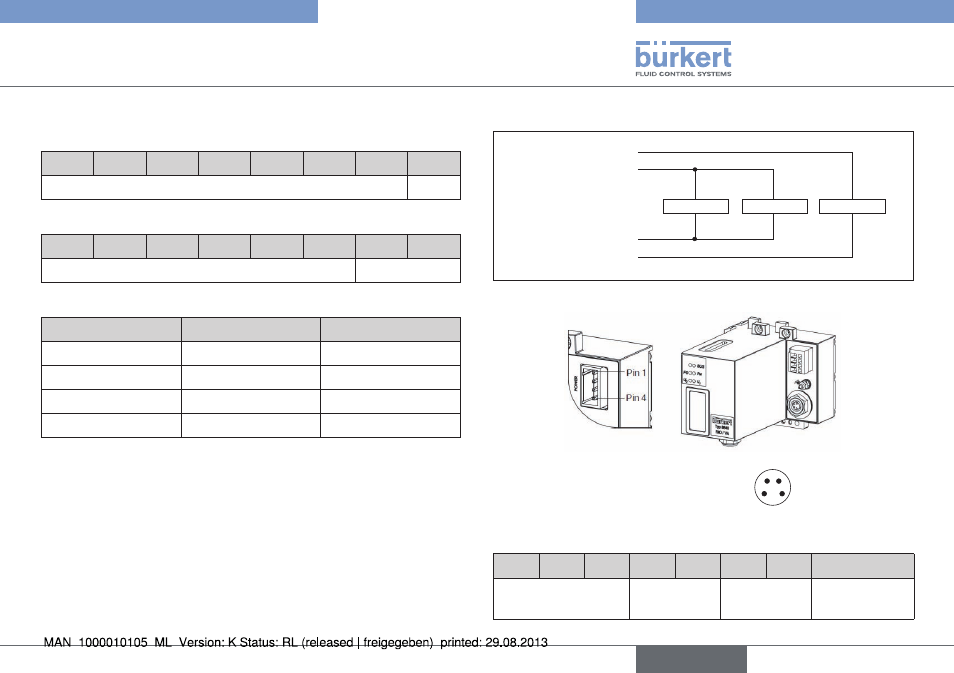

7.3.4. DIP switch settings
Profibus-DP
1 2 3 4 5 6 7 8
Address of the profibus DP subscriber - 125 OFF
DeviceNet / CanOpen
1 2 3 4 5 6 7 8
Address of the field bus module 0 – 63 Baud rate
Baud rate
DIP 7/8 DVN COP
0 125 kB 20 kB
1 250 kB 125 kB
2 500 kB 250 kB
3 - 500 kB
7.3.5. RIO - internal bus extension
Electronics Inputs Outputs
24 V DC (2)
Outputs
24 V DC (4)
Logic
GND (3)
Logik
GND (1)
Outputs
Fig. 12: Power supply
Internal field bus: 4-pole socket M8
4 2
1 3
CAN LOW
CAN HIGH
Field bus settings:
DIP switches
1 2 3 4 5 6 7 8
Address on the in-
ternal RIO bus Mode inputs Reserve
always OFF
Terminating
resistors
