Installation
7.1.4. Pneumatic connections -
AirLINE Quick

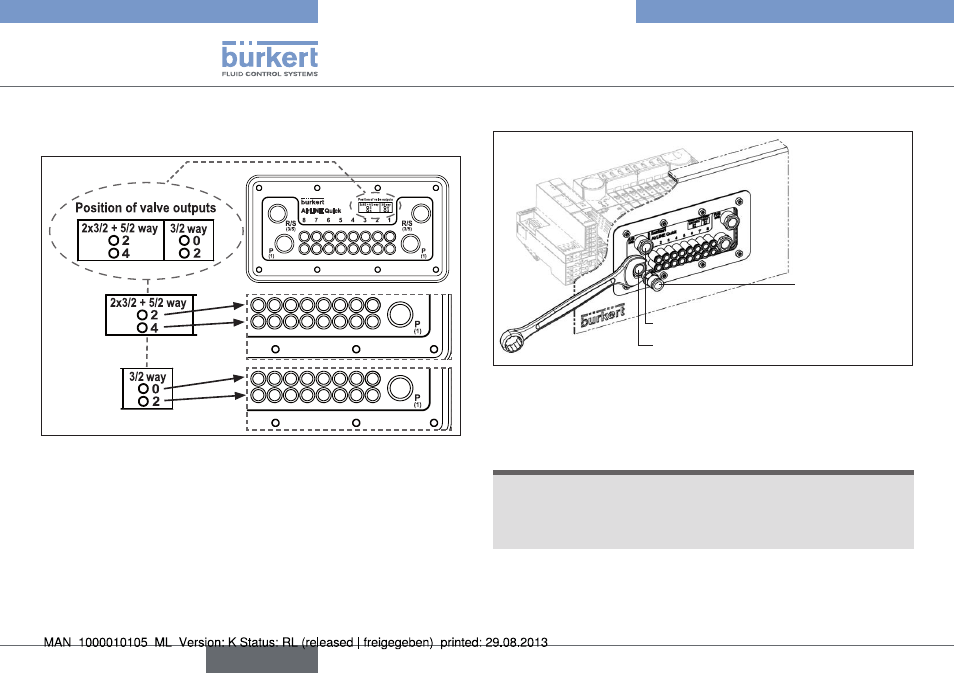

Fig. 10: Pneumatic connections – AirLINE Quick
Procedure:
→
Depending on the version, plug the connections in the corre-
sponding working connections.
7.1.5. Fluid connection AirLINE Quick
Air discharge connection R/S
Example of
connection adapter
Supply connection P
Fig. 11: Fluid connection AirLINE Quick
Procedure:
→
Screw connection adapter G1/4” or NPT 1/4” to connections P
and R/S.
NOTE!
Risk of leakage if screw connection is too tight!
• When fitting the fluid connection adapters to the connections
P, R/S, observe the max. torque of 12 Nm. In doing so, counter
with a suitable tool to prevent the connections from turning!
