Brooks, Model 5850e – Brooks Instrument 5850E User Manual
Page 13
Brooks
®
Model 5850E
2-3
Section 2 Installation
Installation and Operation Manual
X-TMF-5850E-MFC-eng
Part Number: 541B102AAG
September, 2009
Recommended installation procedures:
a. The Model 5850E should be located in a clean, dry atmosphere rela-
tively free from shock and vibration.
b. Leave sufficient room for access to the electrical components.
c. Install in such a manner that permits easy removal if the instrument
requires cleaning.
d. The Model 5850E Mass Flow Controller can be installed in any position.
However, mounting in orientations other than the original factory
calibration (see data sheet) will result in a ±0.5% maximum full scale
shift after re-zeroing.

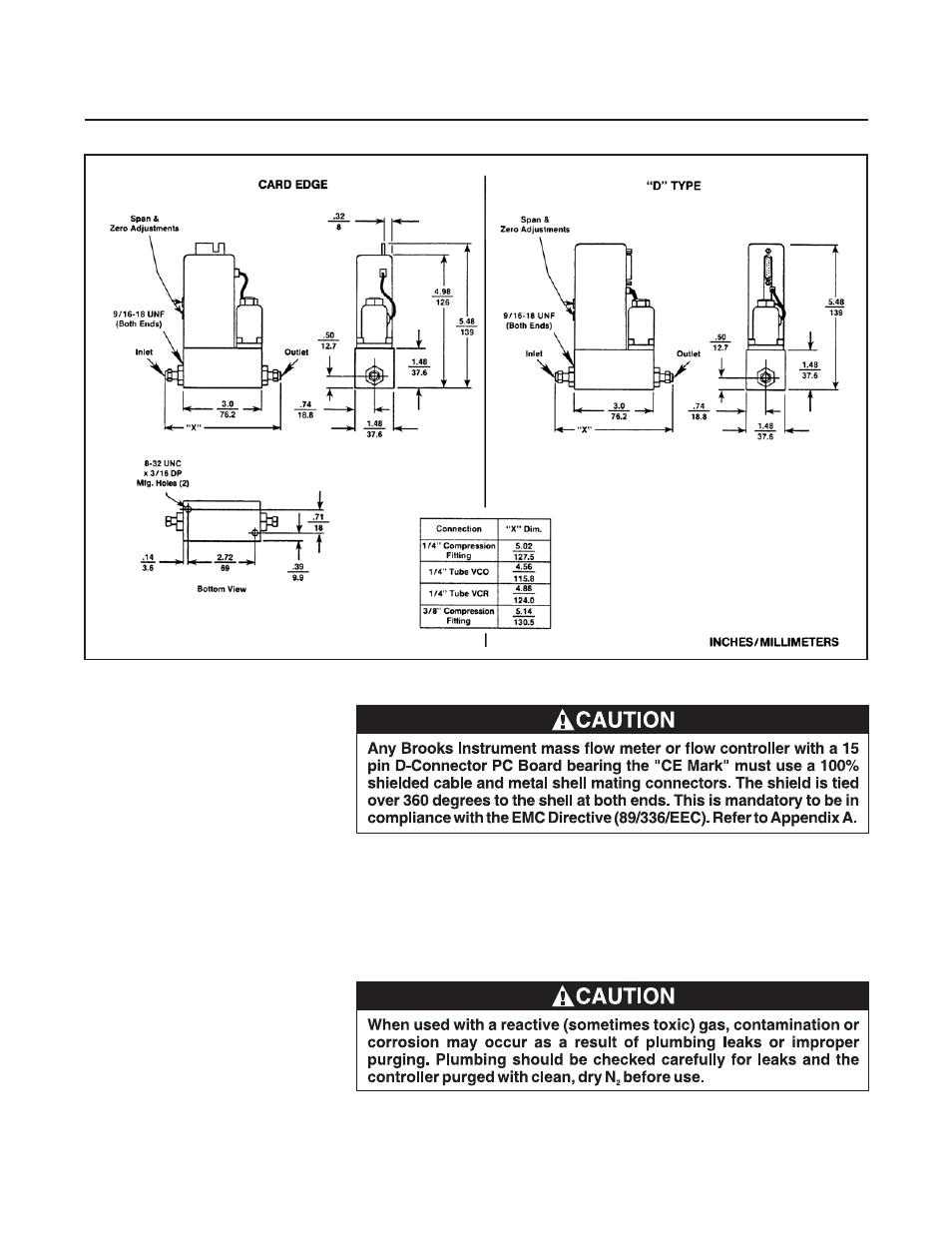

Figure 2-1 Model 5850E Dimensions
